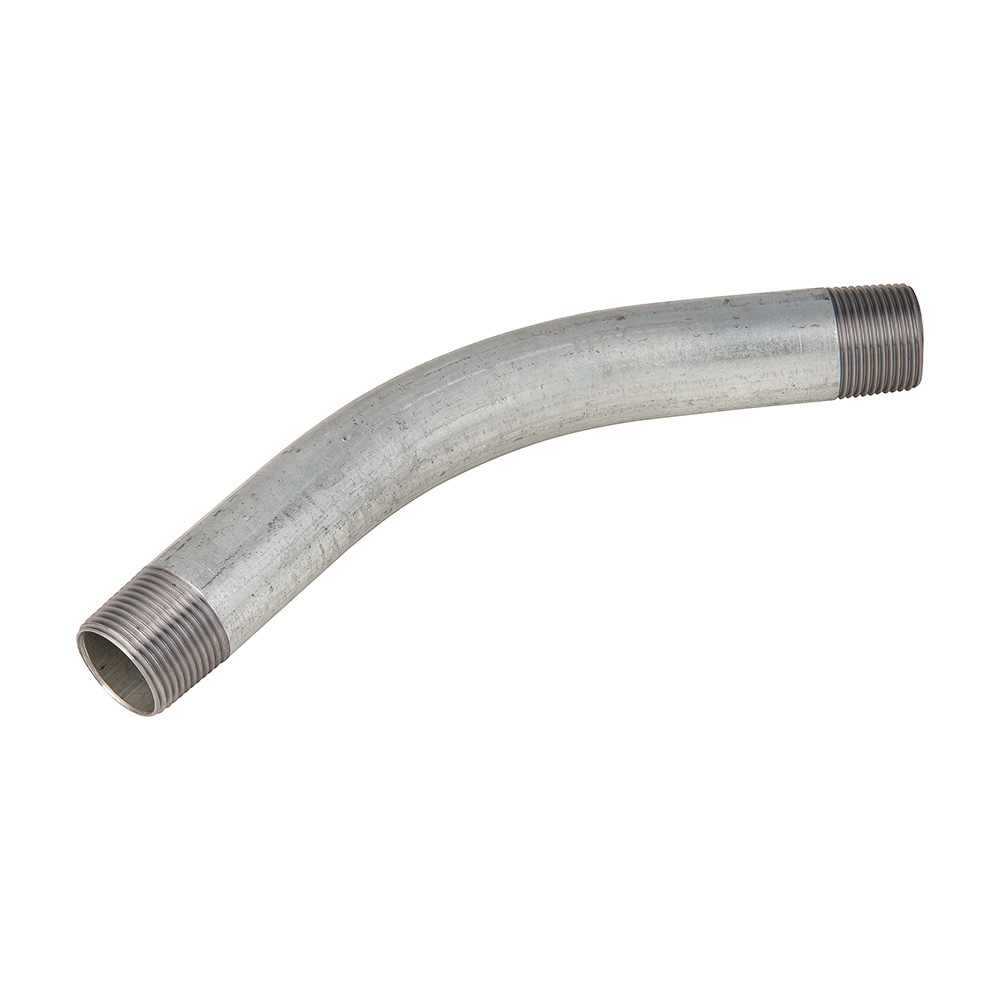

Southwire ELR-10045 Rigid Conduit Elbow 45 Degree

Product Description

The SOUTHWIRE ELR-10045 is a 45-degree rigid conduit elbow designed for use in electrical conduit systems. This fitting redirects conduit runs at a 45-degree angle, allowing installers to route wiring around obstacles or make directional changes in metallic conduit installations. It is a standard component in commercial and industrial electrical rough-in work. Licensed electricians and electrical contractors install this type of fitting as part of complete rigid conduit assemblies in compliance with NEC requirements.

This elbow is suited for rigid metal conduit installations in a wide range of environments, including commercial buildings, industrial facilities, and infrastructure projects where rigid conduit systems are specified. It is used wherever a 45-degree change in conduit direction is required, whether in exposed surface-mount runs or in concealed structural installations.

Key Features

• 45-degree bend angle for directional conduit routing
• Designed for use with rigid metal conduit systems
• Standard elbow geometry for integration into full conduit assemblies
• Suitable for commercial and industrial electrical installations

Compatibility

Designed as an OEM-style replacement fitting for rigid metal conduit systems requiring a 45-degree elbow configuration.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits in the affected conduit run before beginning work. Ensure conduit threads are properly cut, reamed, and cleaned before assembly. Use appropriate conduit wrenches and thread sealant where required by local code.

Technical Specifications

• Bend Angle: 45 degrees
• Conduit Type: Rigid Metal Conduit

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: ELR-10045
