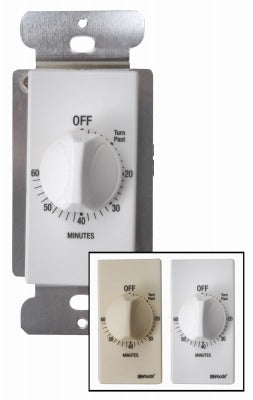

Southwire Coleman Cable 59723WD In-wall 60-min Timer 125V

Product Description

The SOUTHWIRE/COLEMAN CABLE 59723WD is a spring-wound, in-wall countdown timer rated for indoor use. It provides up to 60 minutes of timed control without batteries or a neutral wire, relying on a mechanical spring mechanism to count down and cut power automatically. The unit is rated at 125 volts AC, 60 Hz, and handles up to 20 amps and 2,500 watts resistive, 10 amps and 1,000 watts tungsten, or 5 amps ballast. It ships with both white and almond face covers. Electricians install this timer in standard single-gang wall boxes as a direct replacement for a conventional switch.

This timer is suited for residential and light commercial applications where timed shutoff is needed without a programmed schedule. Common installations include bathroom exhaust fans, utility room lighting, garage lights, and similar loads where a simple countdown shutoff prevents energy waste or unattended operation. The 59723WD fits both decorator-style and standard switch plates, giving it flexibility across common wall-plate configurations found in most residential and commercial construction.

Key Features

• 60-minute spring-wound mechanical countdown — no battery or neutral wire required
• Dual load ratings: 20A/2,500W resistive and 10A/1,000W tungsten
• 5A ballast rating for fluorescent or compatible ballasted loads
• Includes both white and almond cover plates for finish flexibility
• Fits decorator and standard single-gang switch plates
• 125V AC, 60 Hz indoor rating for standard North American branch circuits

Compatibility

Designed as an OEM-style replacement for standard single-gang in-wall mechanical timer switches used in residential and light commercial indoor wiring applications.

Installation Notes

Installation is performed by a licensed electrician following NEC guidelines for branch-circuit wiring. De-energize the circuit at the breaker panel and verify zero voltage with a meter before removing the existing switch or timer. The 59723WD mounts in a standard single-gang box and connects inline on the hot conductor. Do not use on outdoor circuits, wet locations, or loads exceeding the rated amperage and wattage limits listed on the device.
