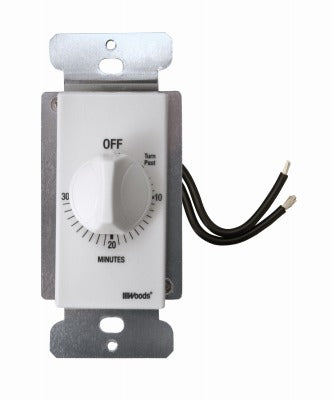

Southwire Coleman Cable 59714WD In-wall 30-min Timer 20A

Product Description

The SOUTHWIRE/COLEMAN CABLE 59714WD is a white, in-wall 30-minute switch timer designed for indoor residential and light commercial use. It installs in a standard wall switch box and automatically cuts power after a user-selected interval, with a maximum shutoff time of 30 minutes. The timer is rated at 125 volts, 60 Hz, and handles up to 20 amps and 2400 watts resistive. It is compatible with compact fluorescent bulbs and standard outlet appliances, making it a practical control device for fans, lights, bath exhaust fans, and similar loads.

This timer is suited for indoor applications where timed shutoff is needed without a full programmable control system. Common install scenarios include bathroom exhaust fans, utility room lighting, heat lamps, and small appliances. The automatic-off feature prevents equipment from running unattended past the selected interval. It is packaged in a unit of six, making it practical for multi-unit service calls or new construction projects.

Key Features

• Automatic shutoff after a user-selected time up to 30 minutes
• Rated 20A at 125V, 60 Hz for high-load compatibility
• Handles 2400W resistive, 1000W tungsten, and 625W fluorescent loads
• Compatible with compact fluorescent bulbs
• In-wall installation fits standard single-gang switch boxes
• White finish for standard residential wall plate compatibility

Compatibility

Designed as an OEM-style replacement or new-installation in-wall switch timer for indoor residential and light commercial applications where a 125V, 20A manual countdown control is required.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements. Always shut off the circuit breaker controlling the switch circuit before beginning any wiring work. The timer mounts in a standard single-gang wall box; verify box depth and wire gauge compatibility before installation. Do not use on circuits exceeding the rated amperage or voltage values listed on the device.
