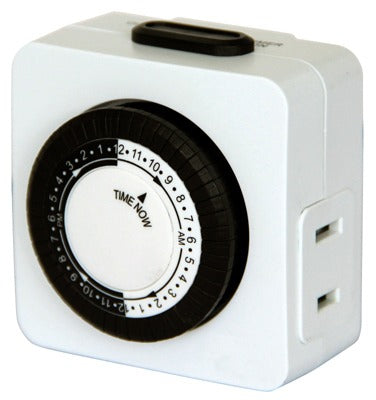

Southwire Coleman Cable 59428TV 24-hour Mechanical Timer 15A

Product Description

The SOUTHWIRE/COLEMAN CABLE 59428TV is a 24-hour mechanical plug-in timer designed for indoor use in residential and light commercial applications. It operates on 125 volts at 60 Hz and handles up to 15 amps and 1,250 watts for tungsten loads. The timer features a polarized 2-prong plug-in design with one polarized 2-prong outlet, allowing it to fit directly into a standard wall receptacle without hardwiring. Programming is done in 30-minute intervals, supporting up to 48 individual on/off settings per day. A manual override switch provides instant on/off control independent of the programmed schedule.

The 59428TV is suited for controlling indoor lighting, small appliances, and other plug-in loads in residential homes, apartments, and light commercial settings. It is compatible with compact fluorescent lamps (CFL), making it appropriate for modern energy-efficient lighting setups. Electricians, maintenance technicians, and knowledgeable DIYers typically deploy this timer for automated lighting schedules, holiday displays, and equipment cycling where a simple, no-wiring-required solution is needed.

Key Features

• 24-hour daily programming in 30-minute increments
• Up to 48 individual on/off settings per day
• Manual override on/off switch for immediate control
• Polarized 2-prong plug-in design for tool-free installation
• Compact fluorescent light (CFL) ready
• CSA Certified for safety compliance

Compatibility

Designed for use with indoor plug-in loads including tungsten lighting, compact fluorescent lighting, and similarly rated small appliances on standard 125-volt, 15-amp circuits.

Installation Notes

Installation requires no hardwiring — plug the timer directly into a standard 2-prong polarized wall outlet and connect the load device to the outlet on the timer face. Ensure the connected load does not exceed 15 amps or 1,250 watts for tungsten loads. Verify the outlet and branch circuit are rated appropriately per NEC guidelines before use. Do not use with motors, refrigerators, or other inductive loads unless the load rating is confirmed compatible.
