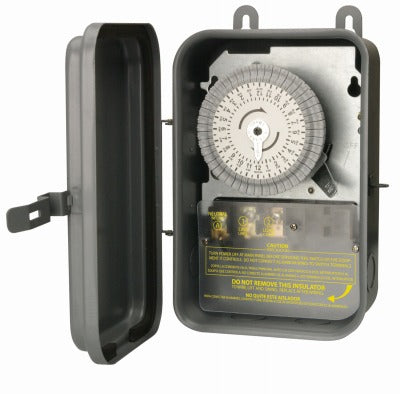

Southwire Coleman Cable 59101RWD Outdoor Mechanical Timer

Product Description

The SOUTHWIRE/COLEMAN CABLE 59101RWD is an outdoor-rated, heavy-duty mechanical timer designed for industrial and commercial control applications. Built around a heavy-duty gear train, this unit delivers reliable 24-hour scheduling with up to 24 on/off settings per day. It is housed in a NEMA 3R lockable metal enclosure that provides protection against weather exposure, making it suitable for exterior electrical control panels and outdoor lighting or equipment circuits. A manual override on/off switch allows technicians to bypass programmed settings during commissioning or service calls. Segment pins are permanently attached to the dial, eliminating the common jobsite problem of lost programming pins.

This timer is used in residential and commercial outdoor electrical installations where scheduled control of lighting, pumps, HVAC equipment, or other loads is required. The NEMA 3R enclosure suits exposed outdoor locations such as building exteriors, equipment pads, and irrigation control stations. The included 0.5-inch and 0.75-inch knockouts allow direct conduit entry and exit, integrating cleanly into standard conduit runs without additional fittings. It is typically installed by licensed electricians during new construction or retrofit projects requiring time-based load control.

Key Features

• Up to 24 on/off settings per day for precise scheduling flexibility
• Heavy-duty gear train for consistent mechanical operation
• NEMA 3R lockable metal enclosure rated for outdoor exposure
• Manual override on/off switch for bypassing programmed settings during service
• Permanently attached segment pins to prevent loss on the jobsite
• Built-in 0.5-inch and 0.75-inch conduit knockouts for clean wiring entry and exit

Compatibility

Designed as an OEM-style outdoor mechanical timer for use in residential and commercial electrical installations requiring NEMA 3R-rated, conduit-compatible time-control enclosures.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements. De-energize the circuit at the breaker before wiring the timer and verify the circuit is dead with a meter before making connections. Conduit fittings should be selected to match the knockout size used. Secure the enclosure to a suitable surface and ensure the NEMA 3R seal is maintained after wiring is complete.
