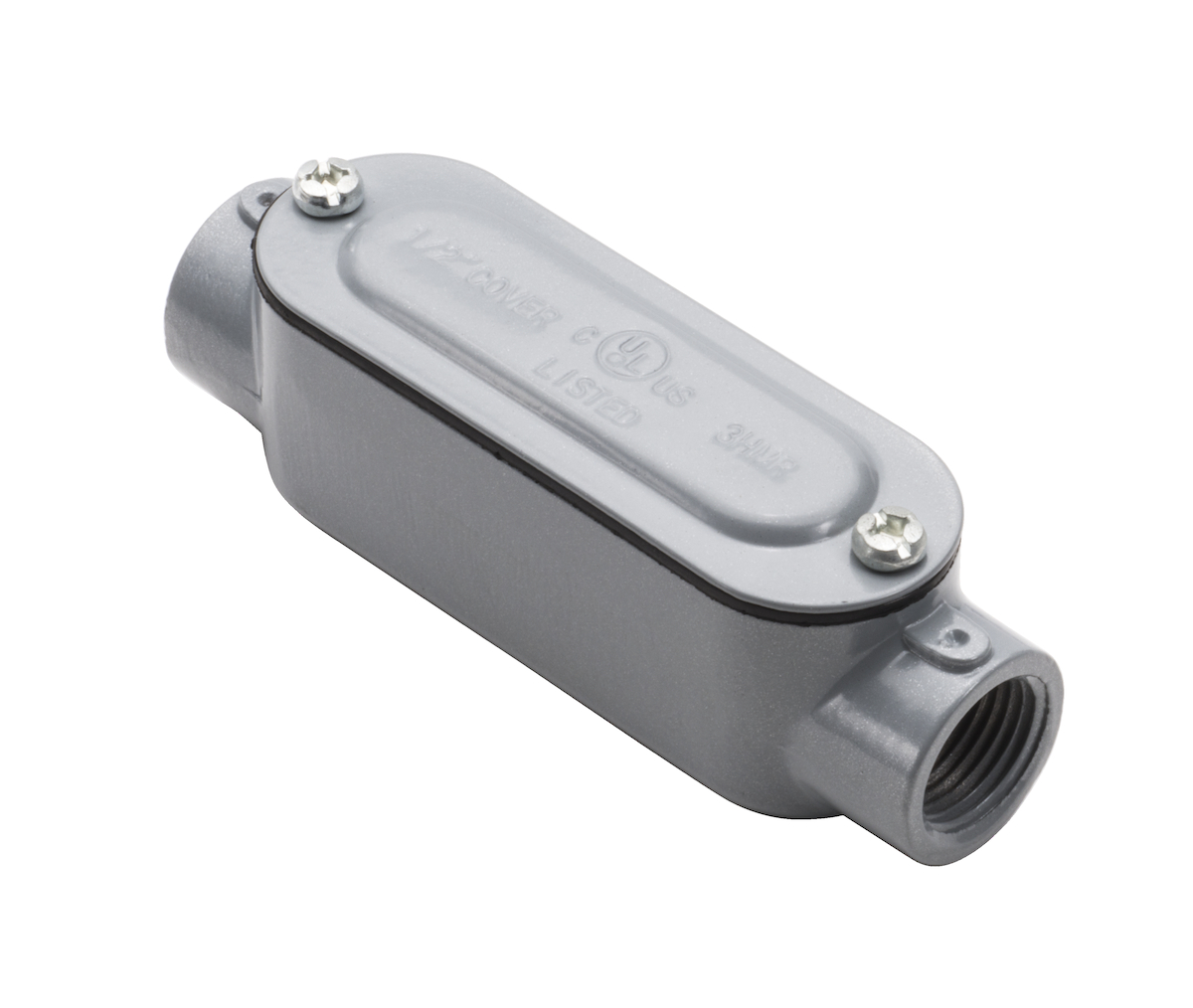

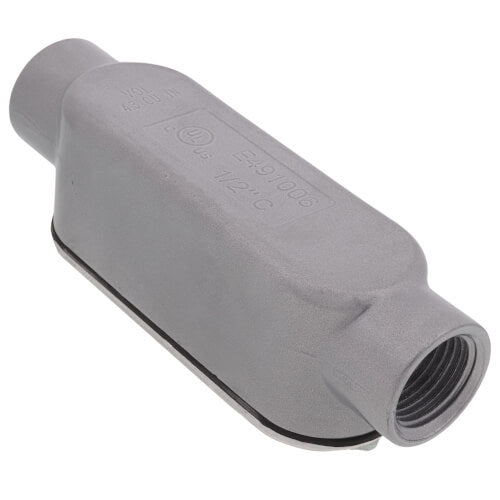

Southwire C5CG Rigid Conduit Body 1-1/2 Inch

Product Description

The SOUTHWIRE C5CG rigid conduit body, with cover and gasket, is manufactured from copper-free aluminum. The C type conduit bodies are engineered with a straight-through configuration, enabling easy access for pulling and splicing. The cover and watertight gasket ensure weatherproof installations. Suitable for use in concrete and wet locations.

• Provides access to conductors for pulling, splicing, and maintenance
• Suitable for use in concrete
• Threaded C type with cover and gasket

Product Highlights

Constructed from copper-free aluminum with NPT tapered hubs. Features smooth, rounded integral bushings for conductor insulation protection and excellent ground continuity.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: C5CG

Technical Specifications

• Access Opening: Side
• Approval: UL, CSA
• Configuration: C
• Cover Type: Stamped Steel
• Hub Location: Straight
• Hub Size: 1-1/2 Inch
• Installation: Threaded
• Manufacturer Name: Southwire
• Material: Die-Cast Copper Free Aluminum Body, Neoprene Rubber Gasket
• Number Of Hubs: 2
• Size: 1-1/2"
• Type: C
• Cover: Cover
• Product Type: Conduit Body
• Used On: Rigid Conduit
