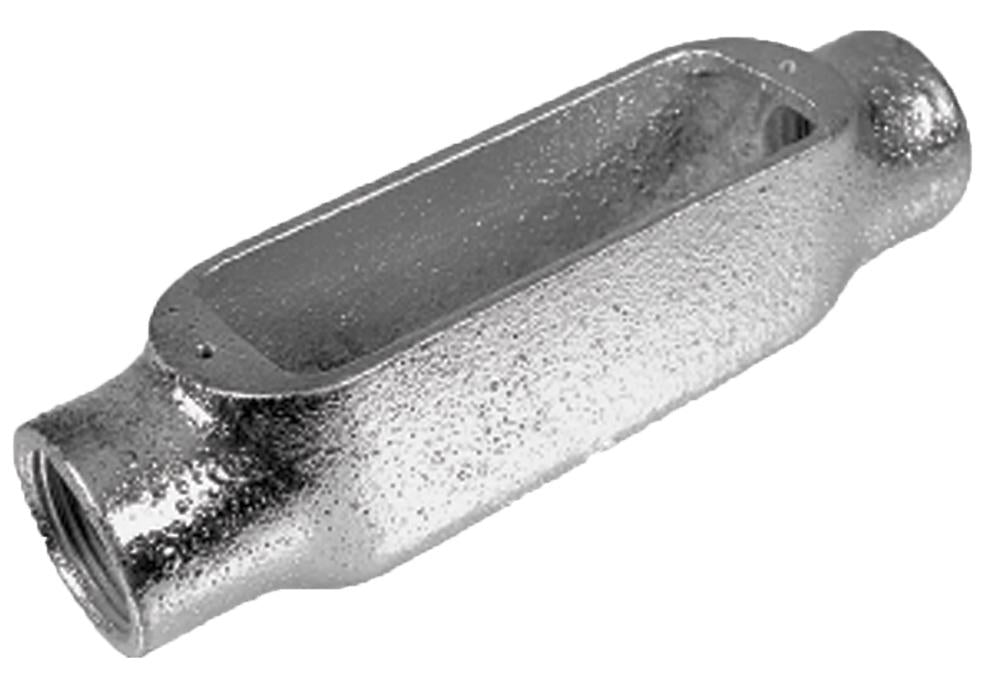

Southwire C2M 3/4 inches rigid threaded type C conduit body

Product Description

SOUTHWIRE C2M is a malleable iron rigid threaded type C conduit body designed for electrical installations. It offers high tensile strength and ductility, resisting corrosion and impact. Engineered with a straight-through configuration, it provides easy access for pulling and splicing conductors. The roomy interior maximizes wiring space, and smooth, rounded integral bushings protect conductor insulation.

• NPT tapered hubs for secure connections
• Suitable for use in concrete applications
• Provides access to conductors for maintenance and future system changes

Product Highlights

Malleable iron construction with NPT tapered hubs for rigid conduit applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: C2M

Technical Specifications

• Product Type: Conduit Body
• Type: C
• Material: Malleable Iron
• Capacity: 7.5 cu-in
• Connection Type: FNPT
• Finish: Zinc Electroplated With Aluminum Enamel
• Hub Size: 3/4 inch
• Mounting Type: Wall
• Number of Hubs: 2
• Standard Approval: UL 514B|UL File No. E195124|cULus File No. E195124|CSA Certified|Federal Specification No. A-A-50553|NEMA/ANSI FB-1|Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Application: For use with rigid conduit, to provide access to conductors for maintece and future system changes, connects conduit section, suitable for use in concrete
