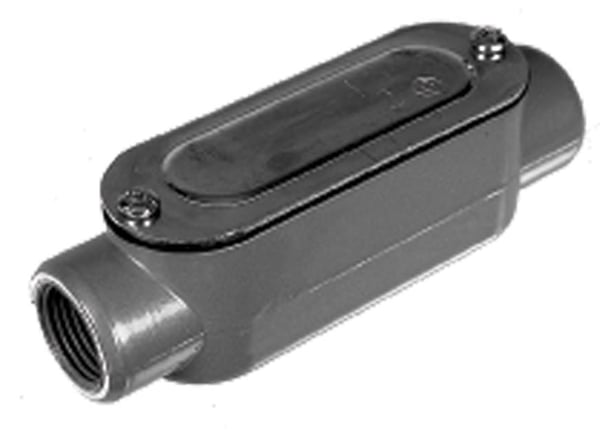

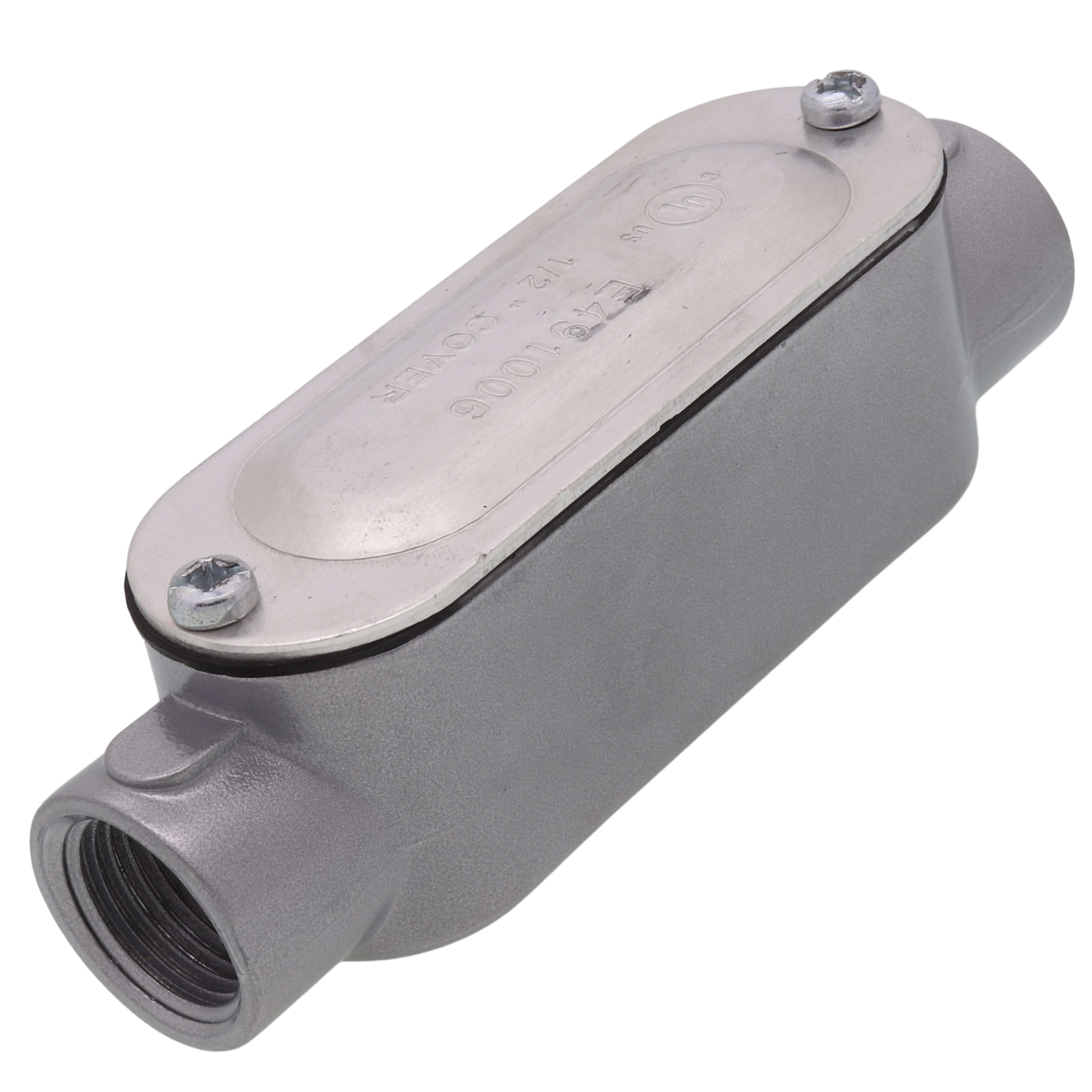

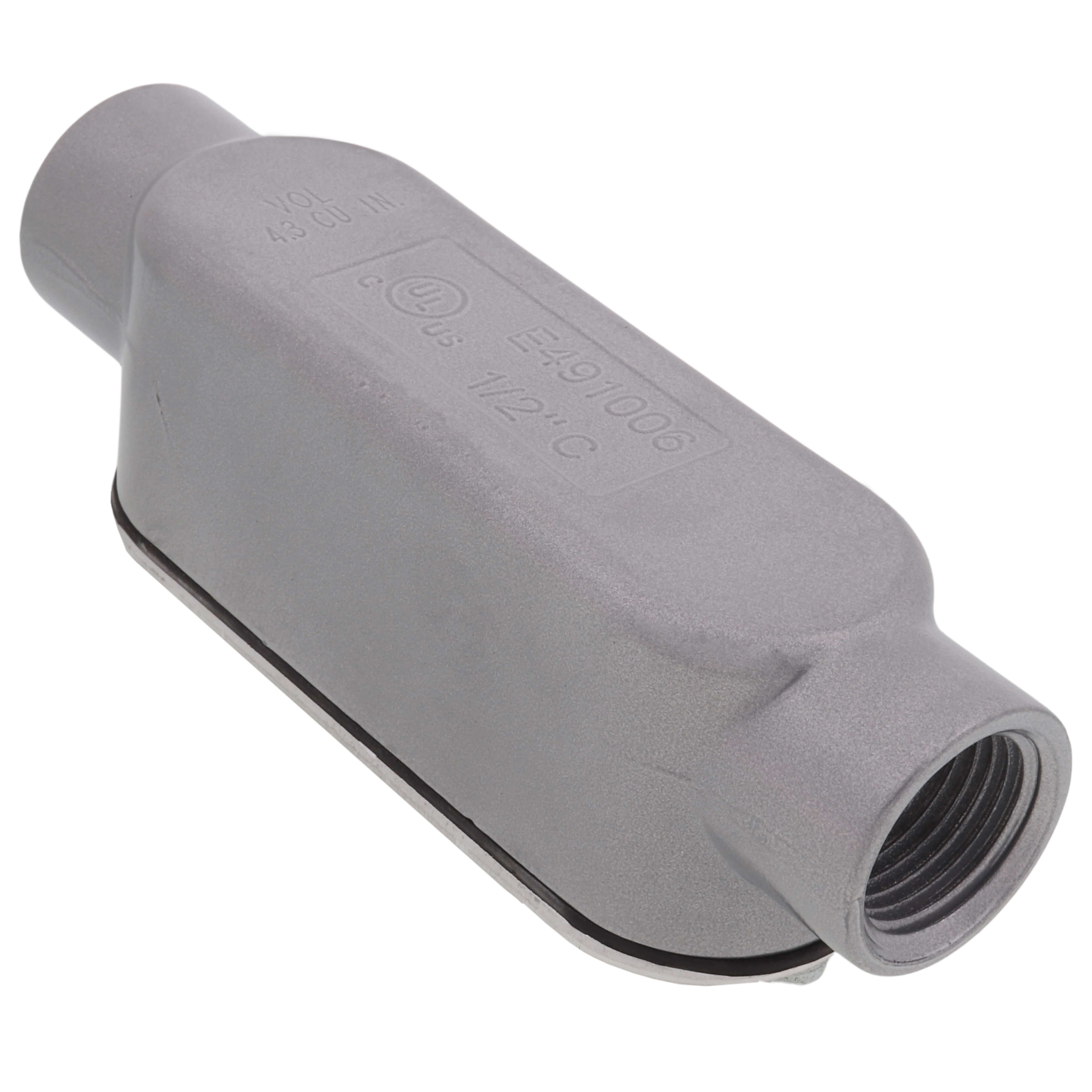

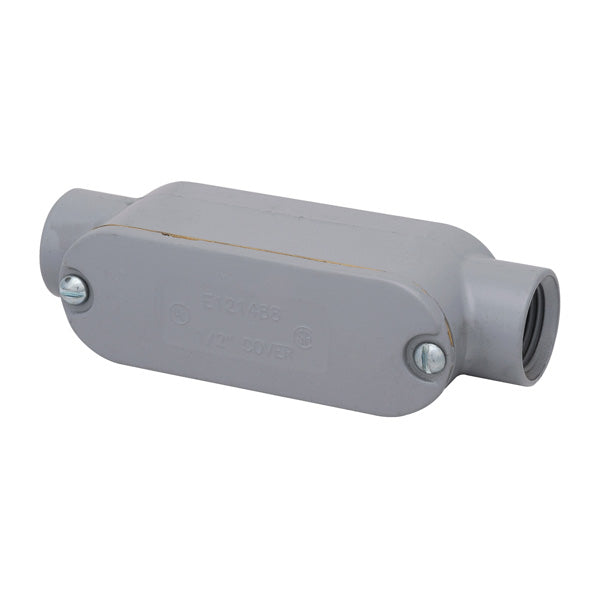

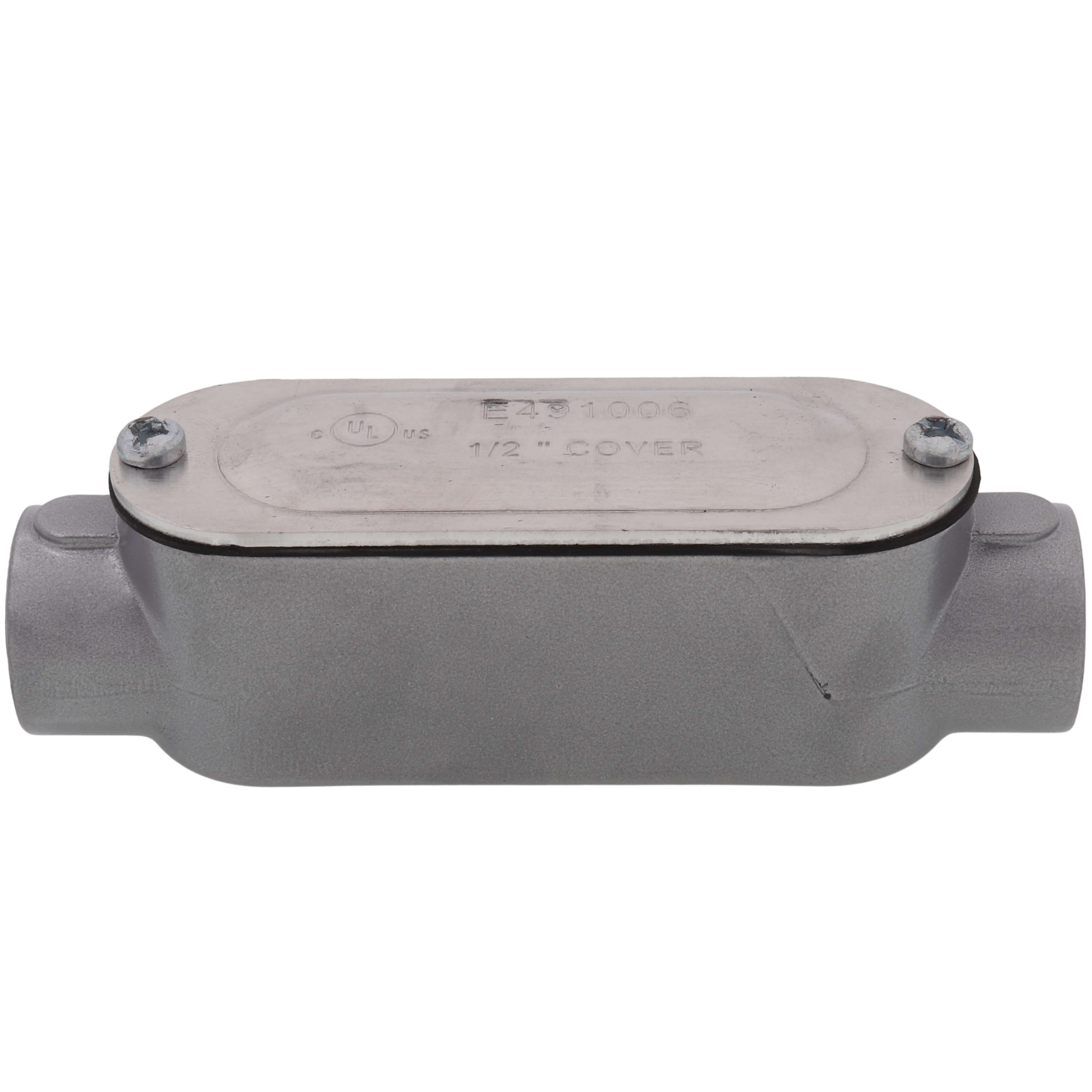

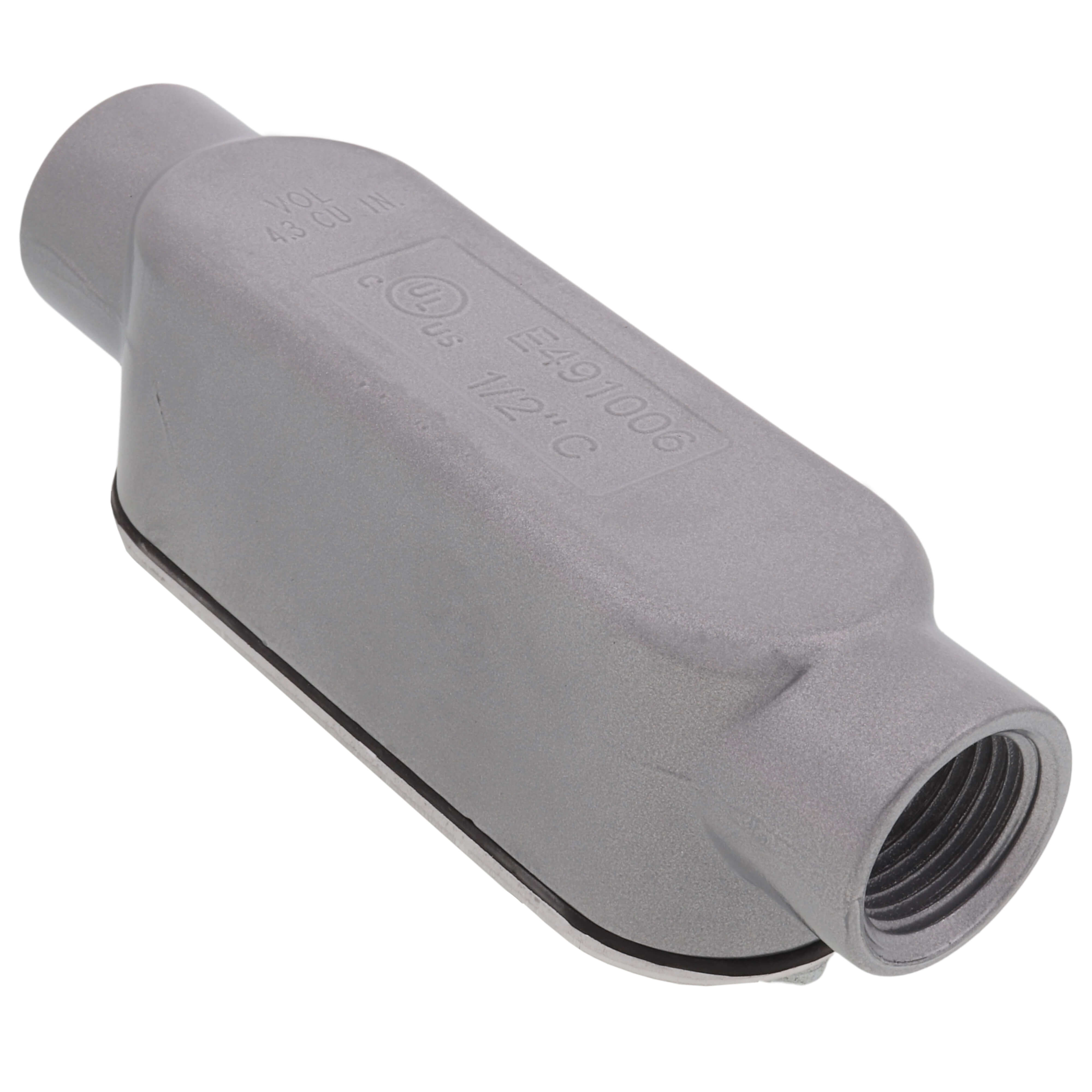

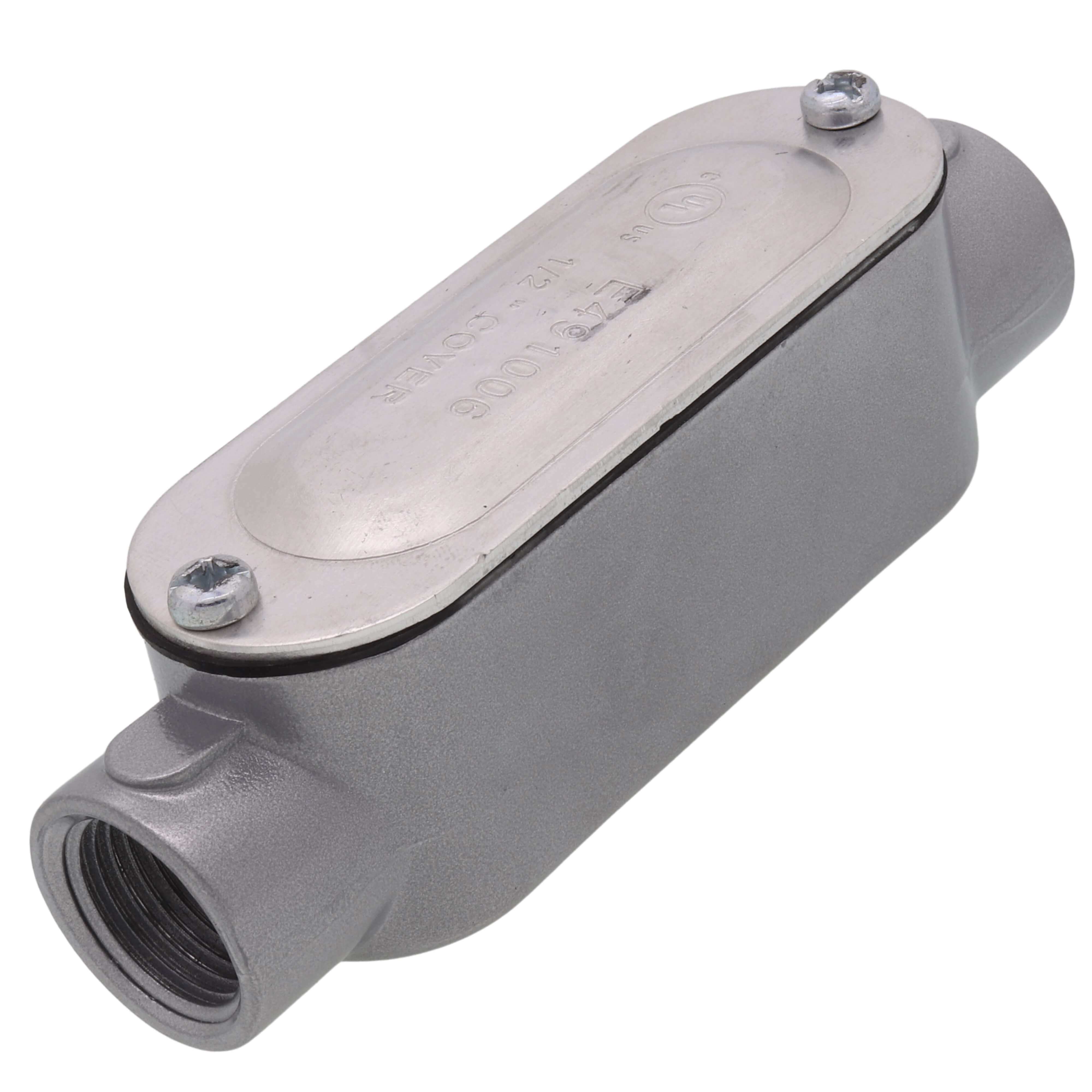

Southwire C1CG Rigid Conduit Body 1/2 Inch

Product Description

The SOUTHWIRE C1CG is a 1/2 inch rigid conduit body designed for electrical installations. This C-configuration conduit body is constructed from die-cast copper-free aluminum and features a neoprene rubber gasket and stamped steel cover. It is suitable for threaded installation and provides access to conductors for pulling, splicing, and maintenance in various applications, including concrete and wet locations.

• Suitable for use in concrete.
• Provides access to conductors for pulling, splicing, and maintenance.
• Features a stamped steel cover and neoprene rubber gasket.

Product Highlights

Die-cast copper-free aluminum conduit body with 1/2 inch threaded hubs, suitable for concrete and wet locations.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: C1CG
• Country of Origin: India

Technical Specifications

• Access Opening: Side
• Approval: UL, CSA
• Configuration: C
• Cover Type: Stamped Steel
• Hub Location: Straight
• Hub Size: 1/2 Inch
• Installation Type: Threaded
• Material: Die-Cast Copper Free Aluminum Body, Neoprene Rubber Gasket
• Number of Hubs: 2
• Used On: Rigid Conduit
• Product Type: Conduit Body
• Finish: Powder Coated
• Connection Type: FNPT
• Mounting: Wall Mount
• Hub Type: NPT tapered
