Southwire 9046SW8808 Range Cord 6 Ft 50 Amp 4-conductor

Product Description

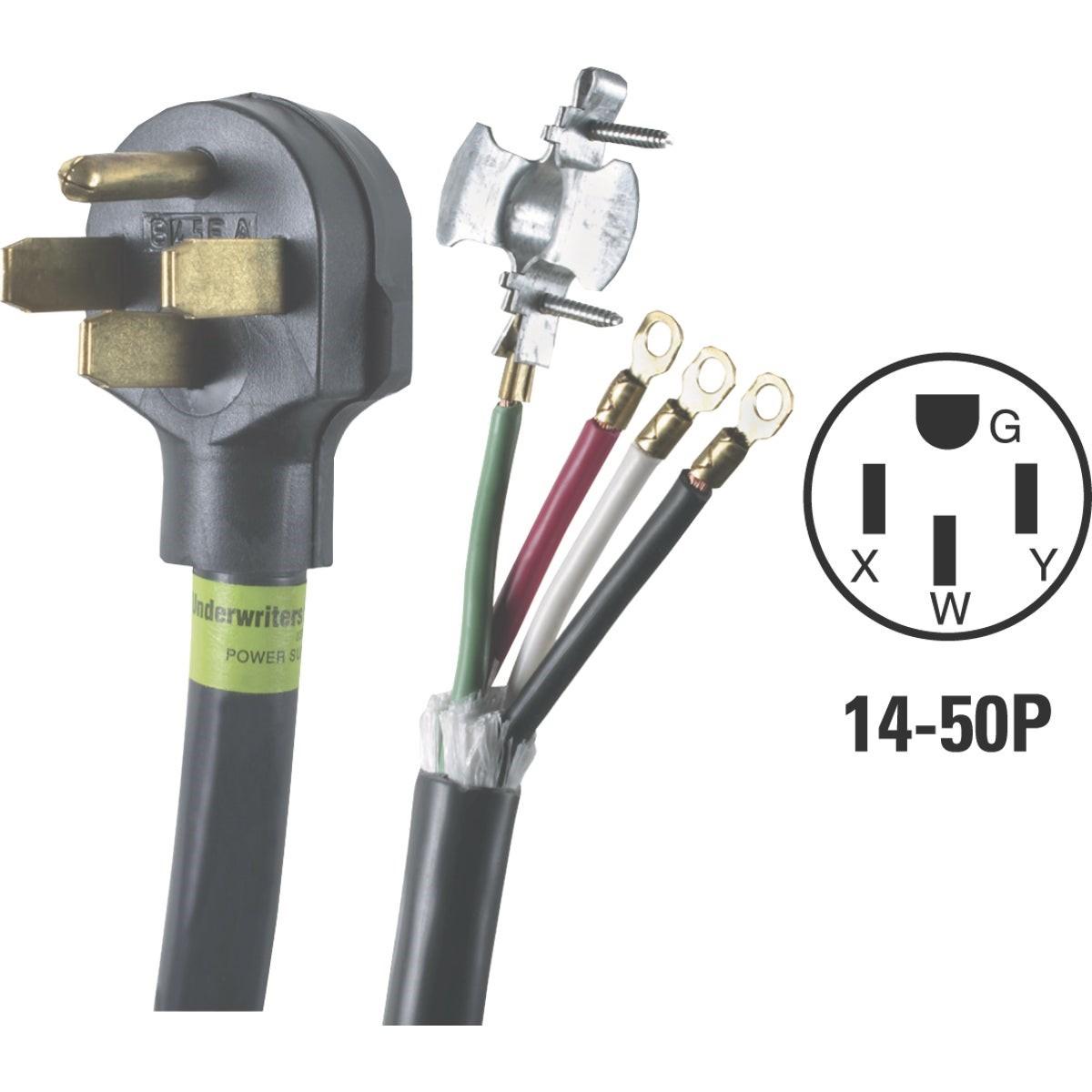

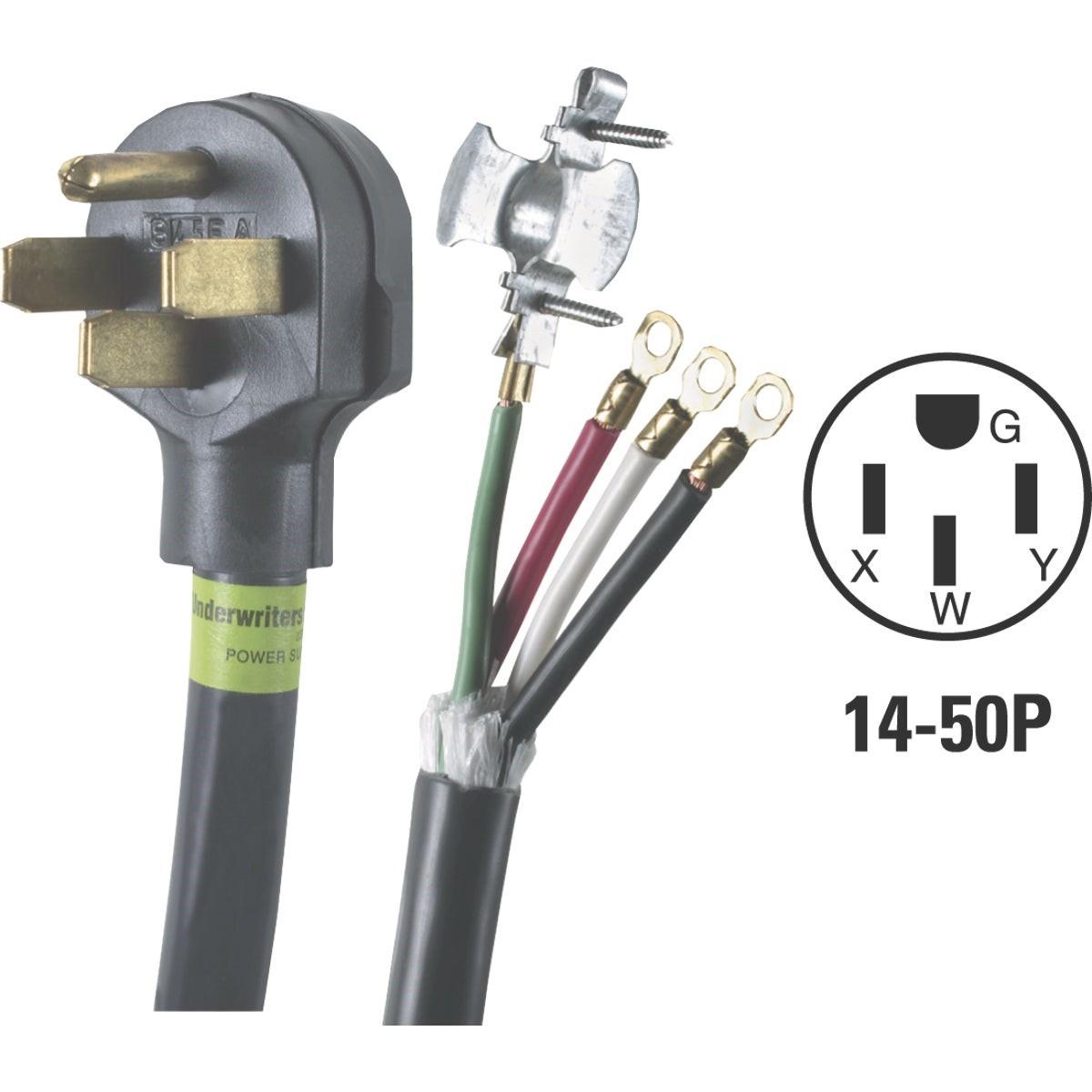

The SOUTHWIRE 9046SW8808 is a 4-conductor range cord designed for connecting freestanding electric ranges and dryers to a 50-amp household outlet. Built with a 6/2 plus 8/2 gauge conductor configuration, this 6-foot cord handles the high-current demands of full-size electric cooking appliances. The right angle plug design allows the range to sit closer to the wall, reducing the gap between the appliance and the wall surface. A strain relief bracket is included to secure the cord at the appliance terminal block and prevent stress on the connection points during normal use.

This range cord is suited for residential installations where a 4-wire, 50-amp range connection is required. Electricians and qualified installers use this cord when connecting freestanding electric ranges to existing 4-wire, 14-50R-style receptacles. The 6-foot length provides enough reach for most standard kitchen configurations without requiring an extension. The round black jacket blends with typical appliance aesthetics and resists abrasion in the install area behind the range.

Key Features

• 6/2 plus 8/2 gauge, 4-conductor construction rated for 50-amp range circuits
• Right angle plug allows installation closer to the wall surface
• Strain relief bracket included for secure terminal block attachment
• 6-foot cord length suits standard residential kitchen layouts
• UL listed for safety compliance
• Round black jacket for durability and a clean appearance

Compatibility

Designed as an OEM-style replacement or new-installation range cord for freestanding electric ranges requiring a 4-wire, 50-amp connection at a standard 14-50R receptacle in residential applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for appliance branch circuits. Always disconnect power at the breaker panel before connecting or disconnecting the range cord at the terminal block. The strain relief bracket must be properly fastened to prevent cord movement and reduce tension on terminal connections. Do not use this cord on circuits rated below 50 amps or with 3-wire receptacle configurations.

Technical Specifications

• Conductor Gauge: 6/2 plus 8/2
• Number of Conductors: 4
• Amperage Rating: 50 amps
• Cord Length: 6 feet
• Plug Type: Right angle
• Jacket Color: Black
• Weight: 3.207 pounds
• Certifications: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 9046SW8808
