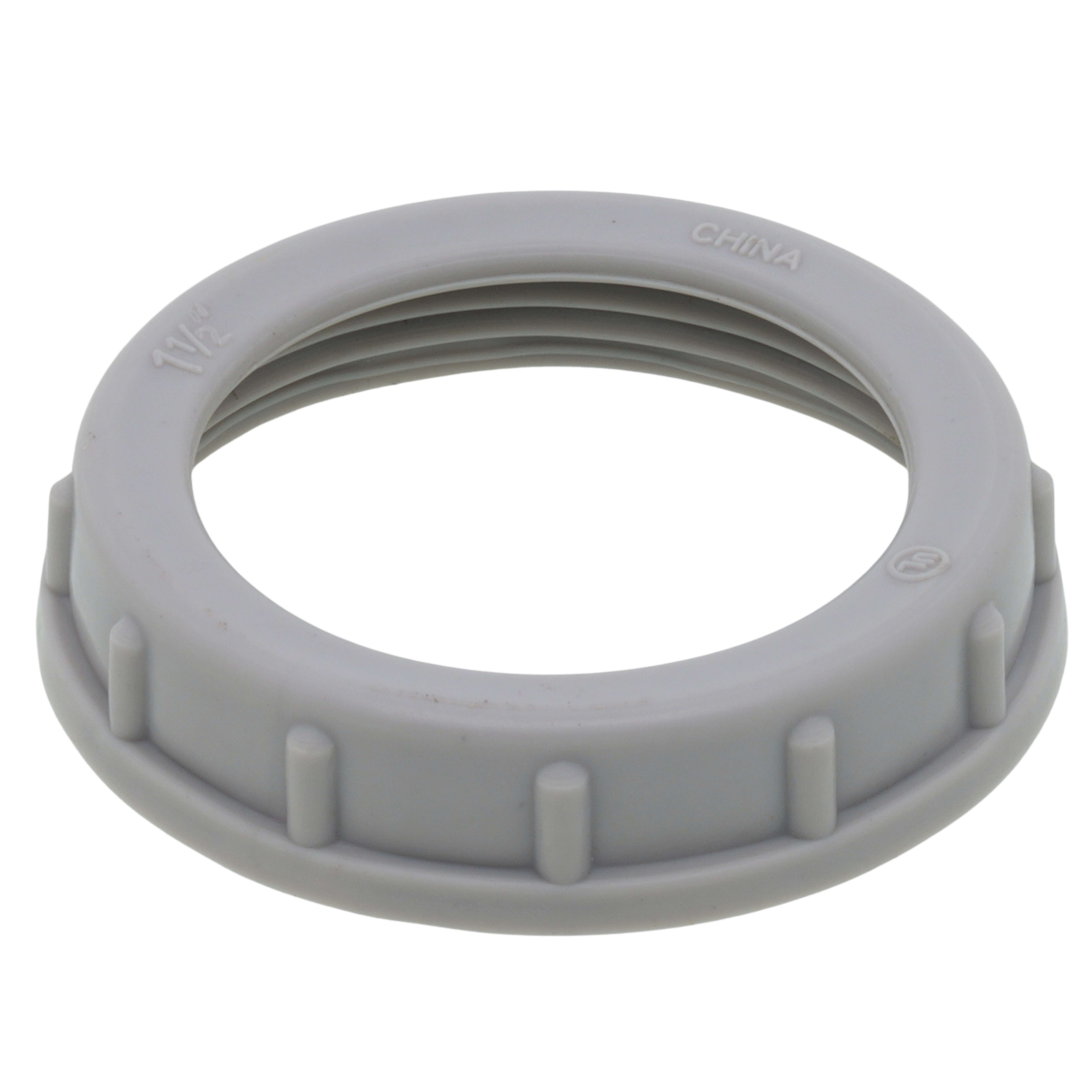

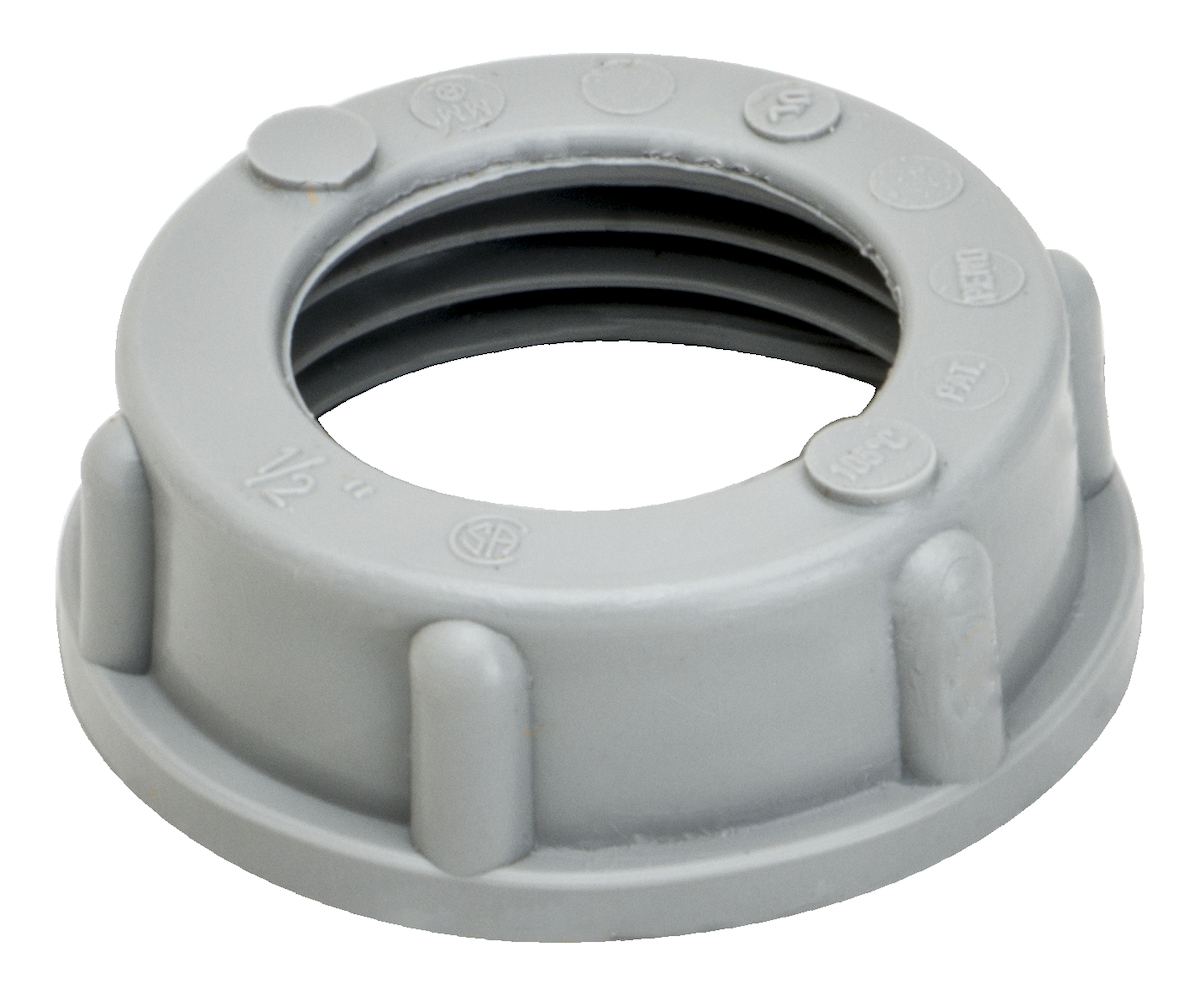

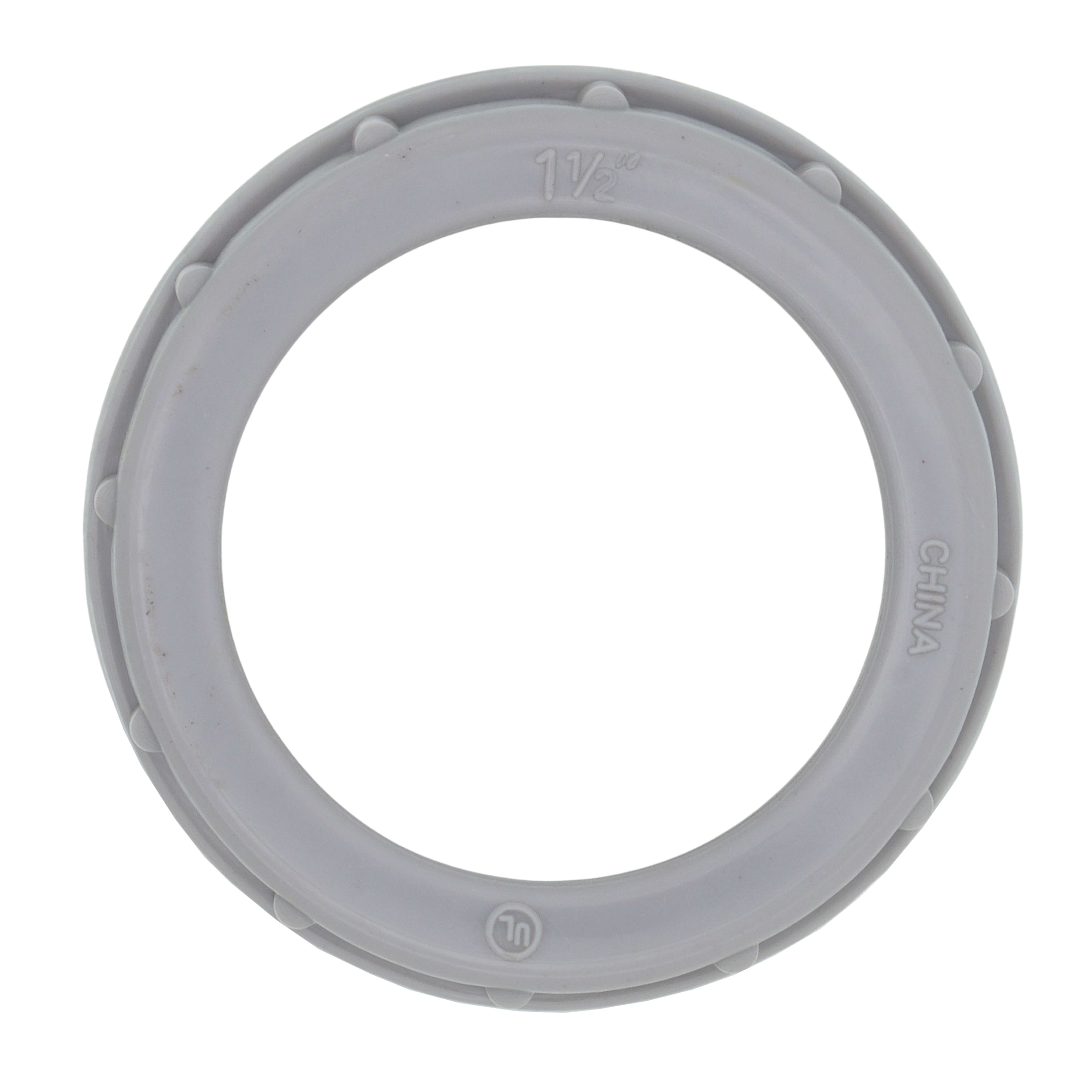

Southwire 835TZ Conduit Bushing 1-1/2 inches

Product Description

The SOUTHWIRE 835TZ conduit bushing is a 1-1/2" thermoplastic bushing used on IMC/Rigid conduit. This threaded female bushing has a plastic insulated throat and is flame retardant to 105°C. It is UL and CSA approved for commercial, industrial, and residential applications.

• 1-1/2" Size
• Thermoplastic Material
• 105°C Flame Retardant

Product Highlights

The SOUTHWIRE 835TZ conduit bushing provides insulation and protection for wires passing through conduit.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 835TZ
• Country of Origin: China

Technical Specifications

• Approval: UL, CSA
• Diameter REF: 2.18 IN
• Manufacturer Name: Southwire
• Material: Thermoplastic
• Product UPC: 751338184909
• Standard Package: 250 per Case
• Temperature Rating: 105 Deg C
• Throat Type: Plastic Insulated
• Type: Threaded Female
• Used On: IMC/Rigid Conduit
• Size: 1-1/2"
• UPC #: 751338184909
• Brand: Southwire / Topaz
• MPN: 835TZ
• Country of Origin: China
