Southwire 72C44-UPC Square Device Cover Surface Mount

Product Description

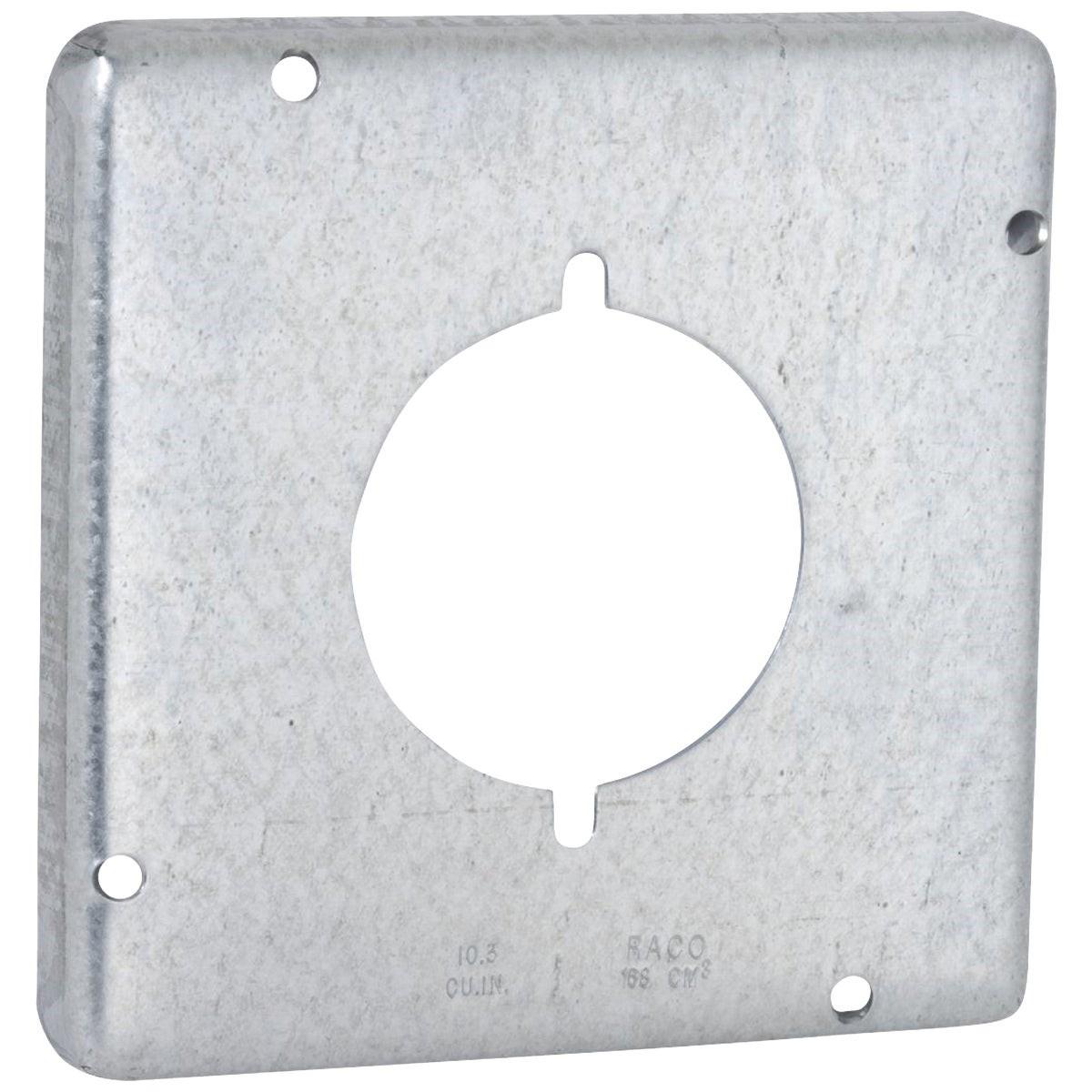

The SOUTHWIRE 72C44-UPC is a square industrial surface cover designed to close a 4-11/16 inch by 4-11/16 inch square junction box or support device mounting in surface-mount industrial and commercial applications. The cover features a 2.156-inch diameter receptacle opening sized for standard device installation. Device mounting hardware is included. The unit is UL listed and RoHS compliant, making it suitable for projects where both safety certification and restricted-substance compliance are required. Electricians and commercial installers use this cover when terminating junction box runs or adding surface-mount device points in exposed conduit systems.

This cover is intended for use in industrial and commercial electrical installations where a 4-11/16 inch square junction box is the rough-in enclosure. It suits surface-mount wiring applications in warehouses, mechanical rooms, commercial tenant spaces, and similar environments. The included mounting hardware simplifies installation without requiring a separate hardware run. The RoHS compliance designation supports installations on projects with environmental material restrictions.

Key Features

• Fits 4-11/16 inch by 4-11/16 inch square junction boxes for surface-mount device applications
• 2.156-inch diameter receptacle opening for standard device mounting
• Device mounting hardware included
• UL listed for electrical safety compliance
• RoHS compliant for restricted-substance requirements
• Sold individually — one cover per unit

Compatibility

Designed as an OEM-style replacement and standard fit for 4-11/16 inch square junction boxes in surface-mount industrial and commercial wiring installations.

Installation Notes

Installation is performed by a licensed electrician. De-energize the circuit and verify absence of voltage at the junction box before beginning work. Secure the cover using the included device mounting hardware and confirm all conductors are properly dressed and contained within the box before fastening. Work should comply with applicable NEC requirements for enclosure fill and device mounting.

Technical Specifications

• Box Size Compatibility: 4-11/16 inches x 4-11/16 inches
• Receptacle Opening Diameter: 2.156 inches
• Weight: 1.187 pounds
• Certifications: UL Listed, RoHS Compliant
• Mount Type: Surface Mount
• Unit of Measure: Each

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 72C44-UPC
