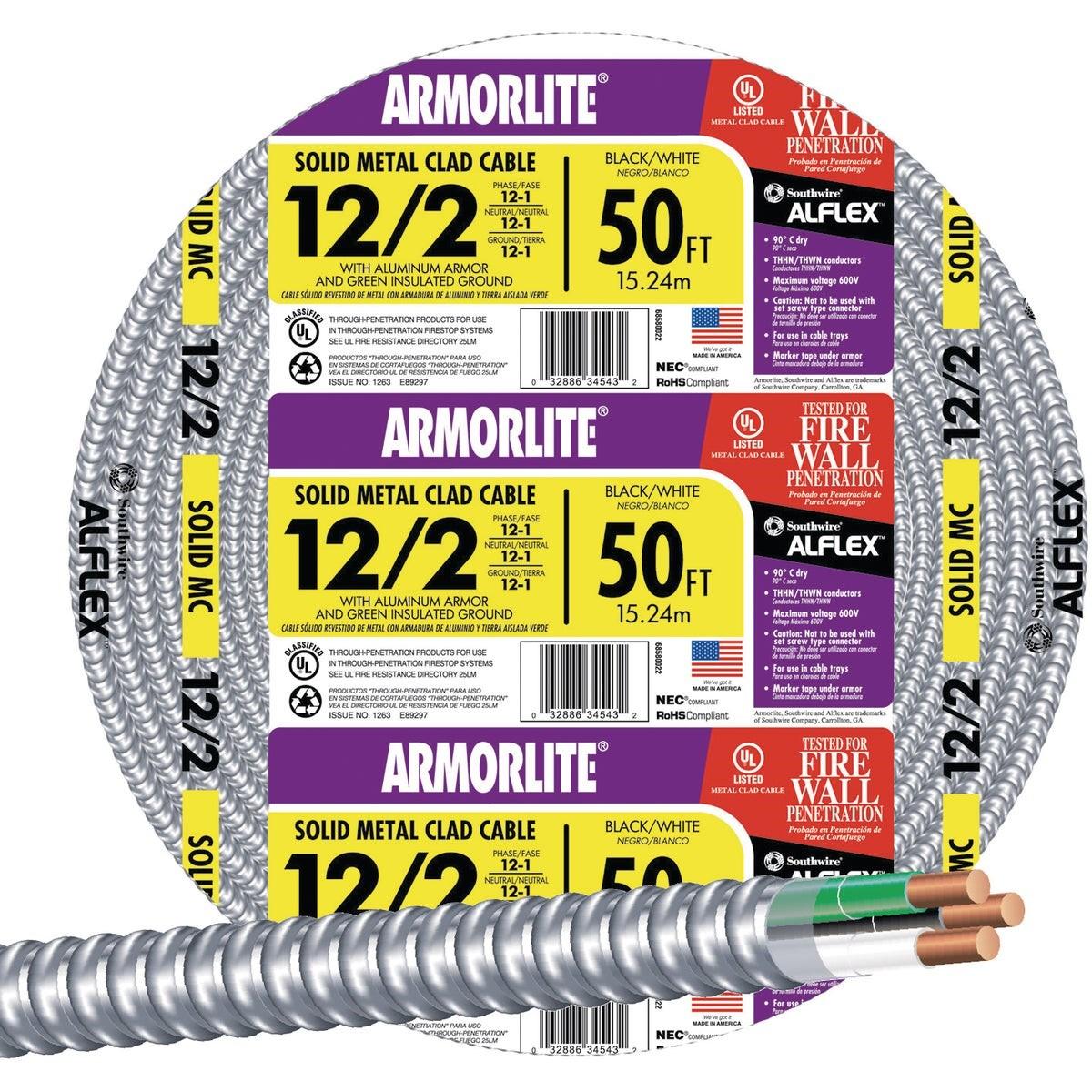

Southwire 68580052 Mc Armored Cable 12/2 50 Ft

Product Description

The SOUTHWIRE 68580052 is a 50-foot roll of 12/2 Metal-Clad (MC) armored cable designed for branch circuits, feeder runs, power distribution, lighting control, and signal circuits. The cable features an aluminum interlocked armor jacket with a dedicated green ground wire inside. It is built for use in commercial, industrial, institutional, and multiresidential construction where a durable, code-compliant wiring method is required. Licensed electricians install this cable as a recognized wiring method under the NEC for both exposed and concealed applications.

This MC cable is suited for branch and feeder circuit wiring in commercial buildings, industrial facilities, institutional structures, and multiresidential projects. It is also approved for use as aerial cable supported by a messenger wire, in cable trays, and in approved raceways. The 12/2 conductor configuration handles standard 20-amp branch circuit loads, making it a common choice for general-purpose receptacle and lighting circuits in new construction and renovation work.

Key Features

• Aluminum interlocked armor jacket provides mechanical protection without the weight of steel-armored alternatives
• Dedicated green ground wire meets NEC grounding requirements for metal-clad cable installations
• 12/2 conductor configuration rated for standard 20-amp branch circuit applications
• 50-foot roll length suits typical commercial and residential rough-in runs
• Approved for cable trays, messenger wire aerial runs, and approved raceways in addition to standard concealed or exposed wiring
• Suitable for branch, feeder, power, lighting control, and signal circuit applications

Compatibility

Designed as an OEM-style wiring solution for branch and feeder circuit installations in commercial, industrial, institutional, and multiresidential buildings where Metal-Clad cable is an approved wiring method under the NEC.

Installation Notes

MC armored cable is installed by licensed electricians in accordance with NEC Article 330 and applicable local codes. Always de-energize the circuit and verify zero voltage at the panel before terminating conductors. Use listed MC cable connectors and fittings rated for the armor type to maintain the integrity of the grounding path through the armor. Avoid over-bending the cable below the minimum bend radius specified by the manufacturer to prevent armor damage.

Technical Specifications

• Conductor Size: 12/2
• Cable Type: MC Metal-Clad Armored Cable
• Armor Material: Aluminum
• Ground Wire: Dedicated green ground wire included
• Length: 50 feet
• Weight: 5.25 pounds
• Unit of Measure: Each

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 68580052
