SOUTHWIRE Southwire 68580023 12/2 mc armored cable electrical wire 100 ft.
SOUTHWIRE Southwire 68580023 12/2 mc armored cable electrical wire 100 ft.
SOUTHWIRE Southwire 68580023 12/2 mc armored cable electrical wire 100 ft.
SOUTHWIRE Southwire 68580023 12/2 mc armored cable electrical wire 100 ft.

Southwire 68580023 12/2 mc armored cable electrical wire 100 ft.

SOUTHWIRE
Brand: SOUTHWIRE
SKU: 68580023
Ships in 1 - 2 Weeks
$157.56
$157.56
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

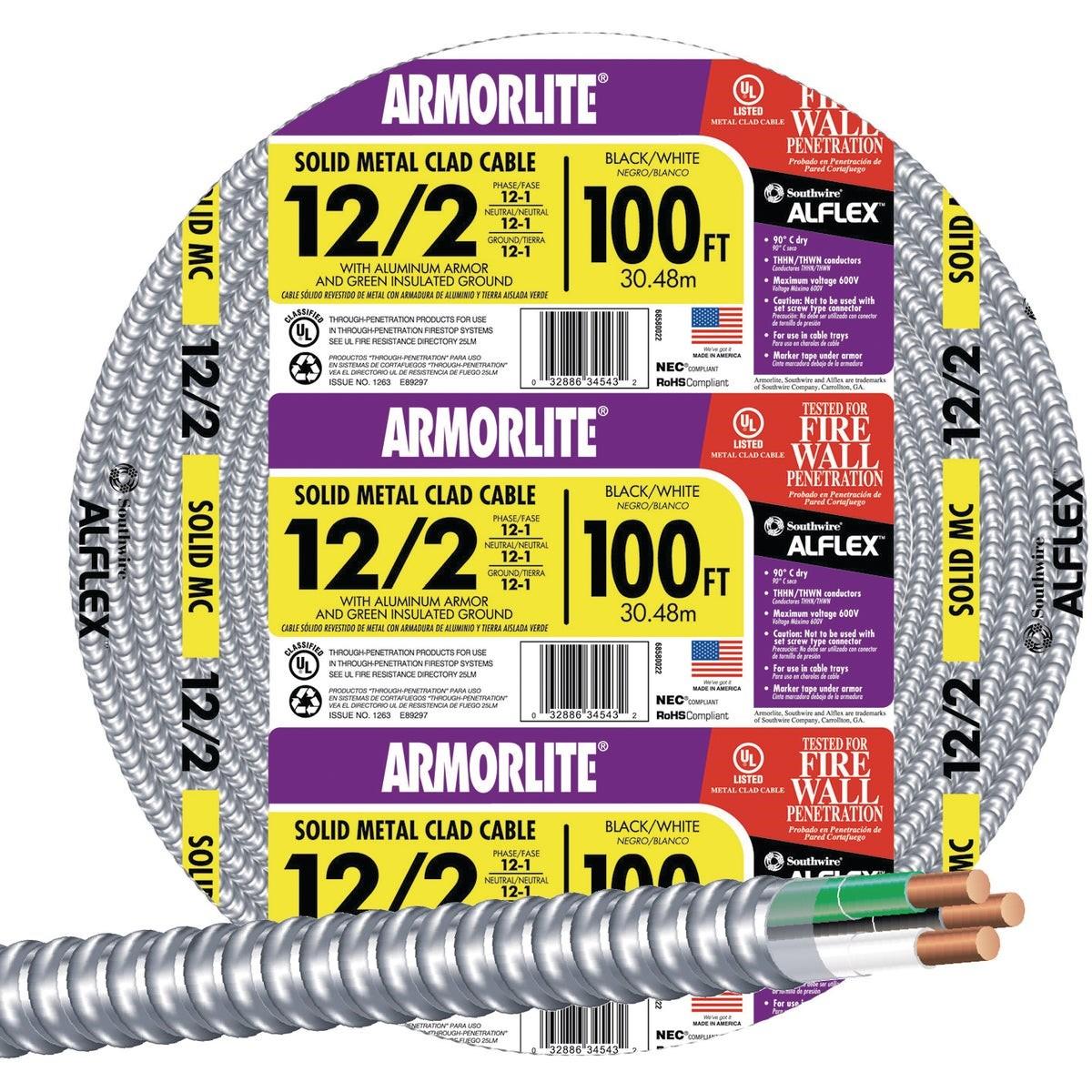

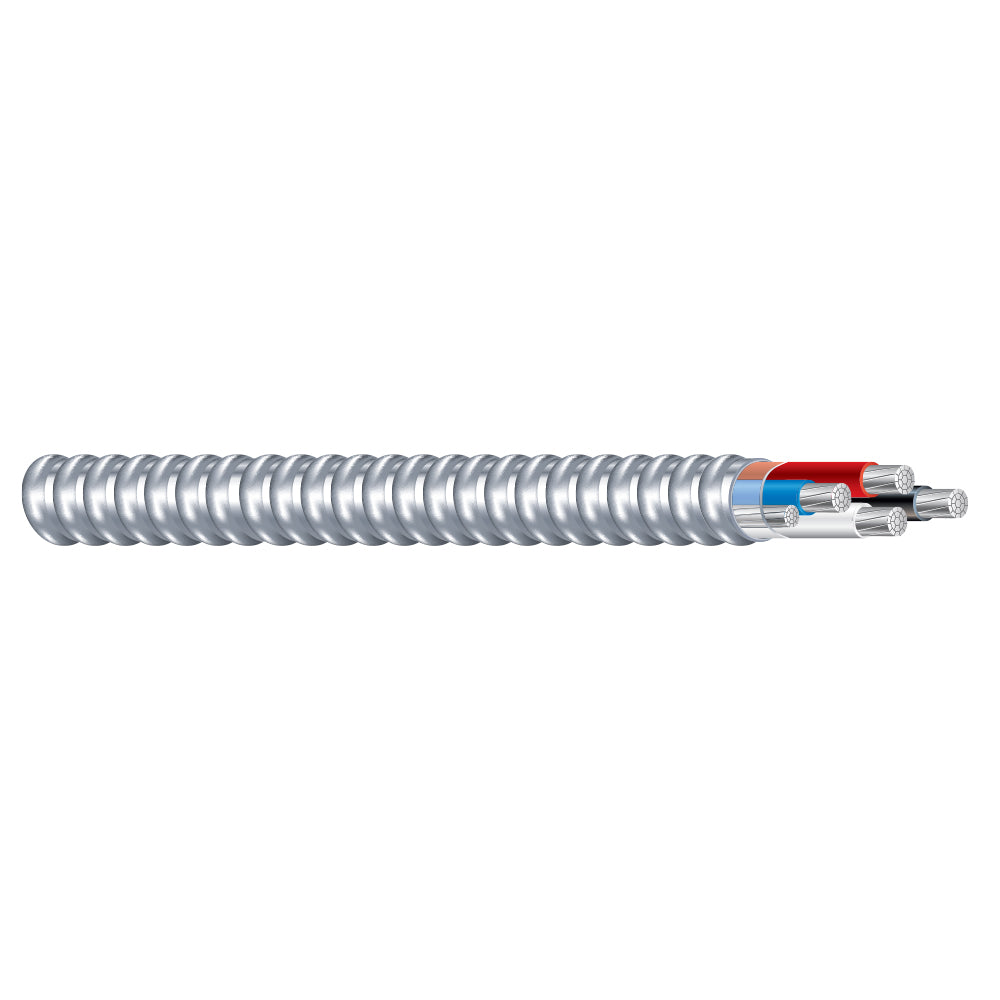

The Southwire 68580023 12/2 MC Armored Cable Electrical Wire is a standard metal-clad building cable with insulated conductors protected by an interlocked metal jacket. It is used for various industrial, commercial, and residential power distribution applications. Features solid copper conductors with PVC insulation and an aluminum jacket.

  • Metal-clad building cables
  • Insulated conductors protected by an interlocked metal jacket
  • Used for various industrial, commercial, and residential power distribution applications

Product Highlights

This Southwire armored cable is suitable for concealed or exposed installations, and installation in cable trays and approved raceways.

Product Information

Standard Information

  • Brand: SOUTHWIRE
  • Manufacturer Part Number: 68580023
  • Country of Origin: US
Technical Specifications
MPN
68580023
ItemID
CCI68580023
UPCCode
00032886345456
Manufacturer
Southwire
Brand
Southwire
UOM
Each
Country
US
Series
Armorlite®
Trade Designation
MC
Trade Designation - Conductors
THHN
Voltage
600 V
Overall Length
100 ft
Packaging
Coil
Cable Jacket Profile Type
Standard
Jacket Color
Silver
Jacket Material
Aluminum
Number of Conductors
2
Conductor Size
12 AWG
Conductor Material
Copper
Conductor Insulation Color
Black; White
Conductor Insulation Material
PVC
Conductor Design
Solid
Number of Strands Per Conductor
1
Number of Ground Conductors
1
Grounding Conductor Size
12 AWG
Grounding Conductor Material
Copper
Grounding Conductor Insulation Color
Green
Includes Bonding Wire
No Bonding Wire
Number of Neutrals
0
Shielding
Shielded
Shielding Material
Aluminum
Number of Shielded Pairs
0
Nominal Outside Diameter
0.48 in
Operating Temperature - Minimum
-6.8 °F
Temperature Rating - Maximum Dry
194 °F
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D; Class II, Div 2, Group E, F, G; Class III, Div 1
Standards
A-A-59544; IEEE 1202/FT4; Listed for use in UL 1, 2 and 3 Hour Through Penetration Firestop Systems; NEC 330; UL 1569; UL 1685; UL 83; Vertical Cable Tray Flame Test
Application
Indoor
UNSPSC
26121636
Outside Diameter
0.474 in
Type
Type MC THHN
Manufacturer Name
Southwire Company
Condition
New
Country of Origin
United States
PackQty
1
