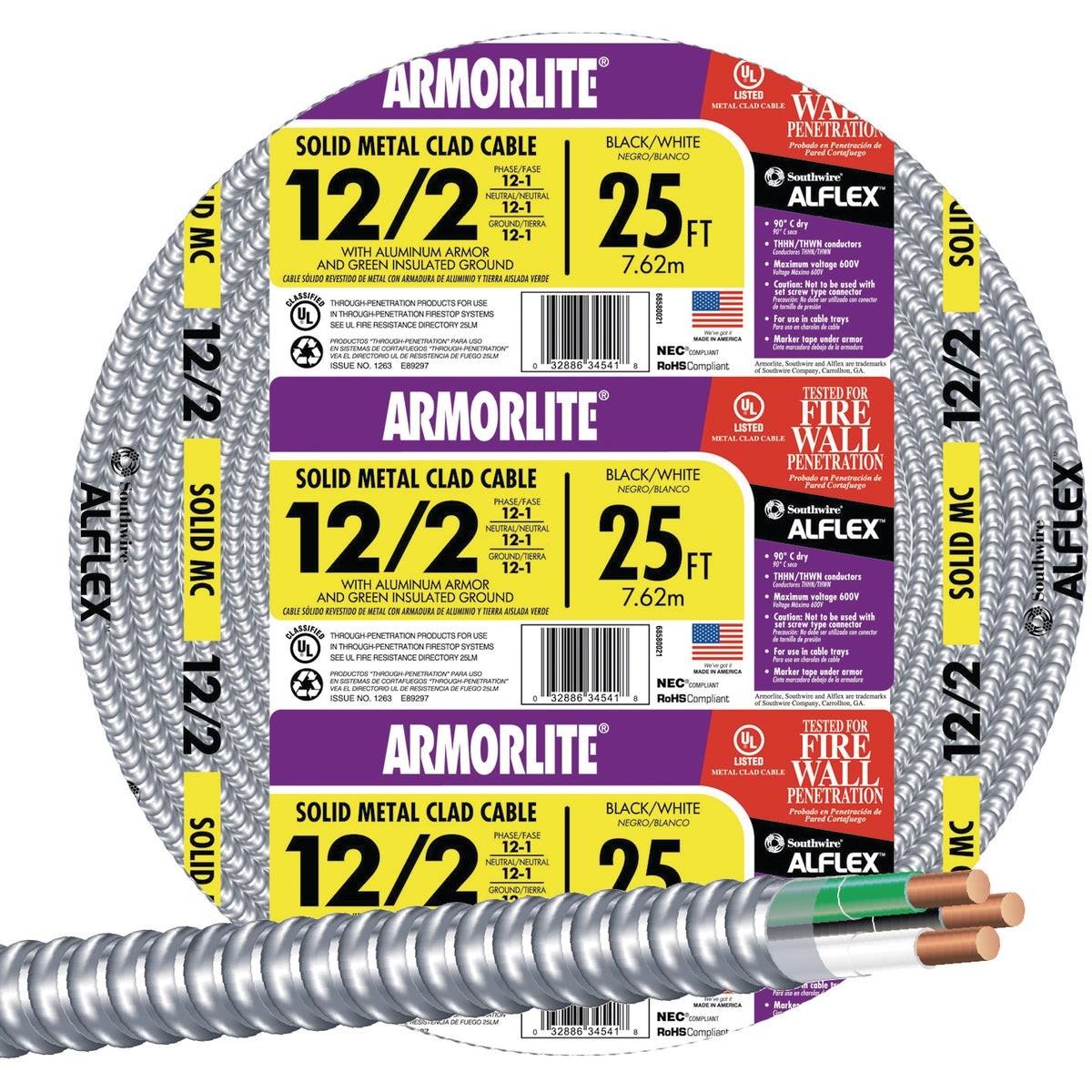

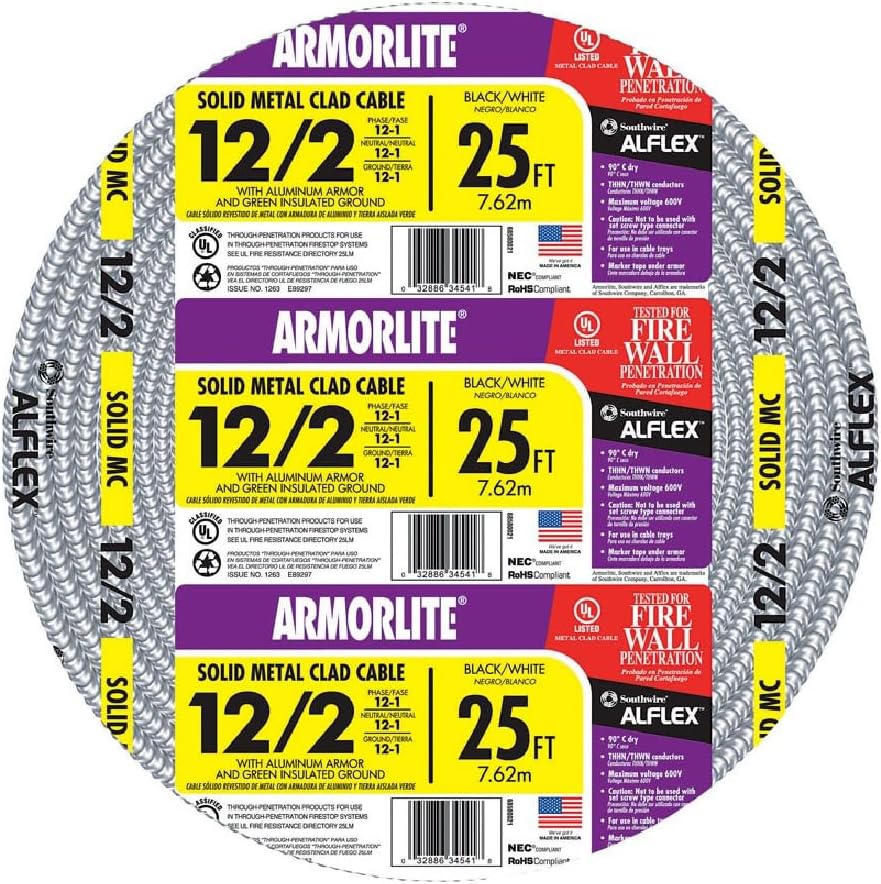

Southwire 68580021 MC Armored Cable Electrical Wire 25 Ft.

Product Description

The Southwire 68580021 is a 25-foot 12/2 MC armored cable electrical wire. It features pre-installed conductors within a protective metallic interlocked armor that is lighter than steel MC cable. The cable is reverse wound for ease of pulling and installation. Suitable for branch and service power distribution.

• Suitable for branch and service power distribution in commercial, industrial, institutional, and multi-residential buildings
• Can be fished or embedded in plaster
• Suitable for concealed or exposed installations

Product Highlights

This MC cable is ideal for power distribution in various commercial and residential settings, offering flexibility and ease of installation.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 68580021
• Country of Origin: US

Technical Specifications

• MPN: 68580021
• Brand: Southwire
• UOM: Each
• Style: 12/2 AWG
• Voltage: 600 Volts
• Material: Aluminum
• Batteries Included?: No
• Batteries Required?: No
• Number of Cable Strands: Multi Strand
• Item [Specifications]: Metal Clad Armored Cable
• Length [Specifications]: 25 ft
• Max. Amps [Specifications]: 20
• Packaging [Specifications]: Coil
• Standards [Specifications]: UL 83, 1569, 1685, NEC Article 330, Federal Specification A-A59544 (Formerly J-C-30B), FT4/IEEE 1202, Vertical Cable Tray Flame Test, Listed for Use In UL 1, 2 and 3 Hour Through Penetration Firestop Systems
• Wire Size [Specifications]: 12 AWG
• Wire Color [Specifications]: Black/Green/White
• Application [Specifications]: Indoor
• Jacket Color [Specifications]: Silver
• Product Type [Specifications]: Metal Clad Armored Cable
• Spool Length [Specifications]: 25 ft.
• Temp. Rating [Specifications]: -14 Degrees to 90 Degrees C Dry
• Jacket Material [Specifications]: Aluminum
• Conductor Design [Specifications]: Solid
• Stranded / Solid [Specifications]: Solid
• Trade Designation [Specifications]: MC
• Insulation Material [Specifications]: PVC
• Nominal Outside Dia. [Specifications]: 0.475 in
• Number of Conductors [Specifications]: 2 with Ground
• Length (Straight Wireway) [Specifications]: 25 ft
• Wire Size (Wire and Cable) [Specifications]: 12 AWG
• Cable Type (Wire and Cable) [Specifications]: MC
• Jacket Material (Wire and Cable) [Specifications]: Aluminum
• Country of Origin (subject to change) [Specifications]: Multiple
• Cond. Size: 12 AWG
• Conductor Number: 2
• Diameter Over Conductor (in): 0.080 inch
• Diameter Over Conductor (cm): 0.20 cm
• Cond. Strands: Solid
• Insulation Thickness (mils): 20 mils
• Insulation Thickness (mm): 0.51 mm
• Ground Size: 1x12
• Diameter Over Armor (in): 0.483 inch
• Diameter Over Armor (cm): 1.23 cm
• Conductor Material: Copper
• Insulation: THHN/THWN
• Cable Size: 12 AWG
• Length: 25 ft
• Selling Unit: Each
• Type: Type MC
