Southwire 68579202 Mc Cable 14 Awg 2 Conductor 1 Ft

Product Description

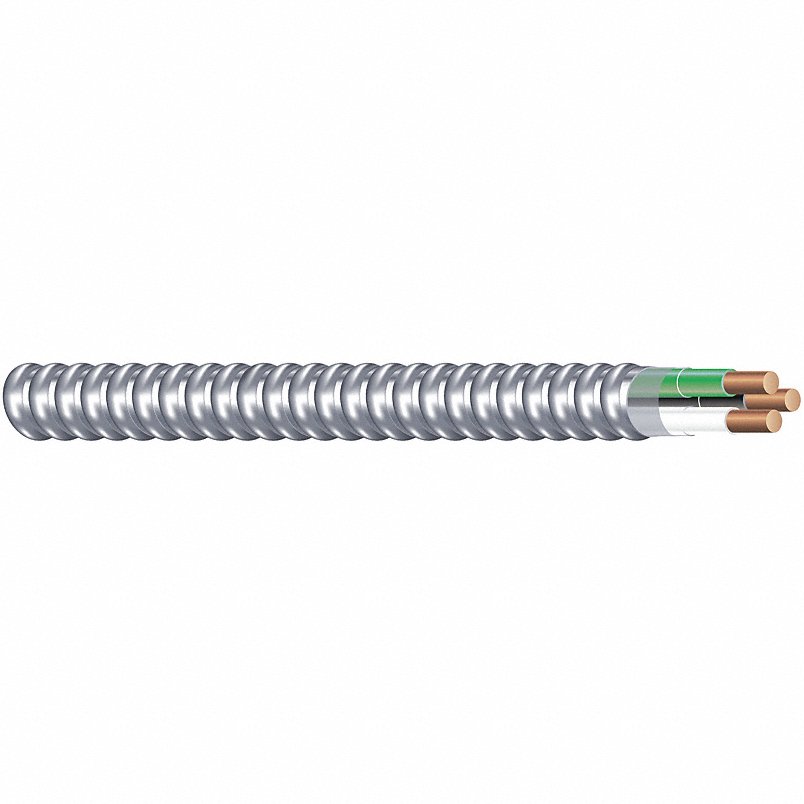

The SOUTHWIRE 68579202 is a standard-profile metal clad (MC) armored cable rated for 600 volts, designed for power distribution in commercial, industrial, and residential installations. It carries two 14 AWG solid copper THHN/THWN-rated conductors insulated with PVC and nylon, enclosed in an interlocked aluminum armor jacket. The standard round profile is thicker and more rigid than low-profile MC cable, offering greater resistance to impact, abrasion, and mechanical damage. A 14 AWG copper ground conductor with green insulation is included.

This MC cable is suited for indoor power distribution runs in commercial and residential buildings where conductors need protection from physical damage. Typical applications include branch circuit wiring in walls, ceilings, and exposed conduit-free runs in commercial occupancies, as well as industrial installations in Class I Division 2 and Class II Division 2 hazardous locations. The aluminum armor provides lightweight, corrosion-resistant protection. The solid copper conductors support standard current loads for 14 AWG branch circuits per NEC Article 330.

Key Features

• 14 AWG solid copper conductors with THHN-rated PVC and nylon insulation, rated to 194 degrees F dry

• Interlocked aluminum armor jacket provides impact, abrasion, and mechanical damage resistance

• Standard round-profile jacket for demanding applications where external mechanical forces are a concern

• Rated for Class I Div 2 and Class II Div 2 hazardous locations

• Listed for use in UL 1, 2, and 3 Hour Through Penetration Firestop Systems

Compatibility

Designed for use in indoor power distribution applications governed by NEC Article 330. Suitable for branch circuit wiring in commercial, industrial, and residential construction where MC cable is the specified wiring method.

Installation Notes

MC cable installation is typically performed by a licensed electrician in accordance with NEC Article 330 and applicable local codes. De-energize all circuits at the panel before making any connections. Use listed MC cable cutters or an armored cable cutter to cut the aluminum jacket cleanly without nicking conductor insulation. Secure the cable with listed MC fittings and connectors at all junction boxes and enclosures.

Technical Specifications

• Voltage Rating: 600 volts

• Conductor Size: 14 AWG

• Number of Conductors: 2

• Conductor Material: Copper

• Conductor Design: Solid

• Conductor Insulation: PVC and Nylon (THHN)

• Conductor Insulation Colors: Black, White

• Ground Conductor: 14 AWG Copper, Green insulation

• Jacket Material: Aluminum

• Jacket Color: Silver

• Jacket Profile: Standard

• Nominal Outside Diameter: 0.44 inches

• Length: 1 ft

• Packaging: Reel

• Temperature Rating (Maximum Dry): 194 degrees F

• Temperature Rating (Minimum): -6.8 degrees F

• Hazardous Location Rating: Class I Div 2 Group A, B, C, D; Class II Div 2 Group E, F, G; Class III Div 1

• Standards: NEC 330, UL 1569, UL 1685, UL 83, IEEE 1202/FT4, A-A-59544, Vertical Cable Tray Flame Test

• Application: Indoor

• Country of Origin: USA (subject to change)

Standard Information

• Brand: SOUTHWIRE

• Manufacturer Part Number: 68579202
