Southwire 670S conduit coupling 4 in

Product Description

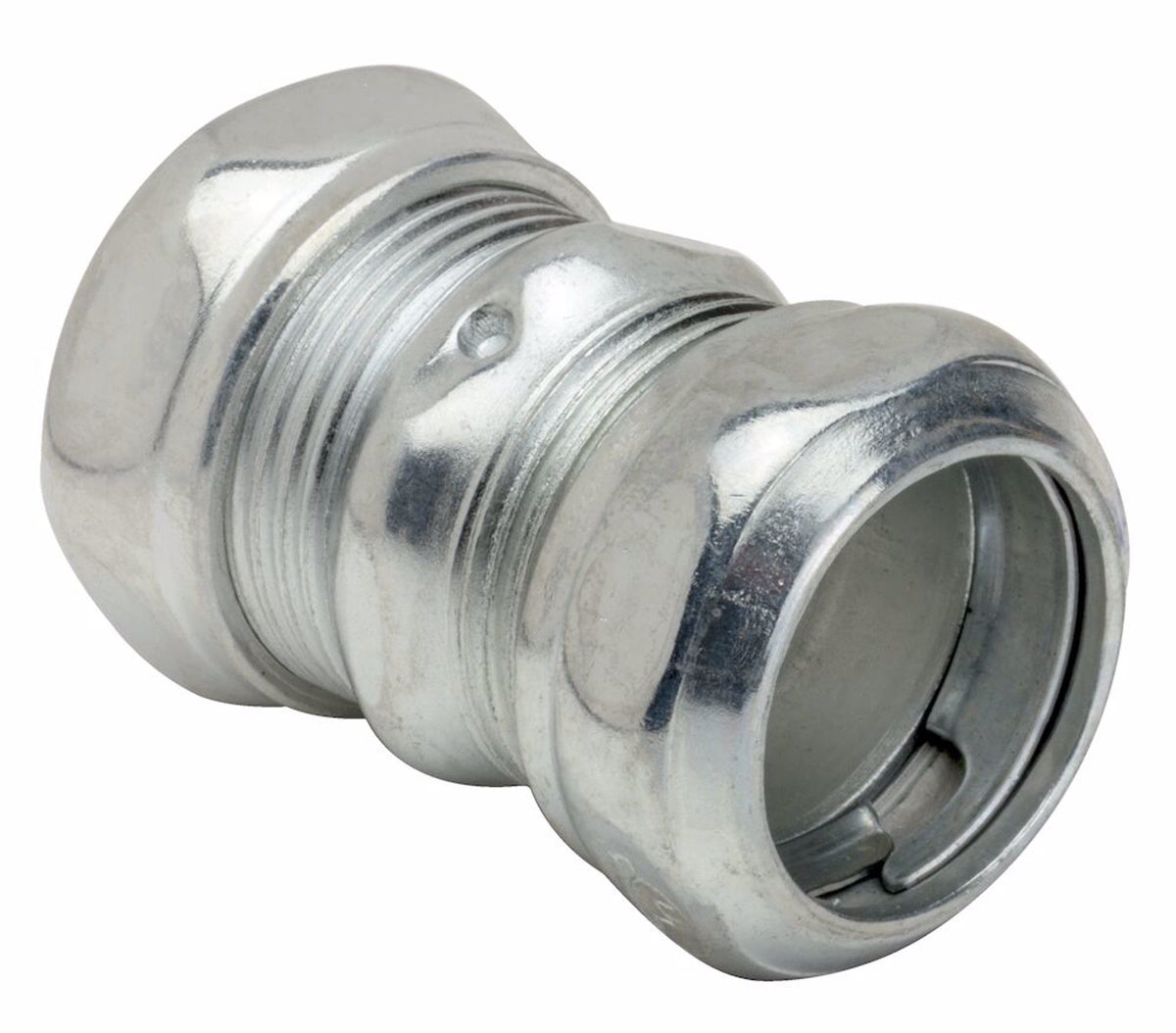

The SOUTHWIRE 670S is a 4-inch steel compression coupling designed for EMT conduit. It features a concrete-tight construction and is made from zinc-plated steel. This coupling is suitable for commercial, industrial, and residential applications, joining two lengths of EMT conduit with a compression connection.

• Compression type connectors and couplings
• Concrete tight
• Connectors: Available with insulated throat

Product Highlights

The SOUTHWIRE 670S provides a secure and reliable connection for EMT conduit in various applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 670S
• Country of Origin: China

Technical Specifications

• Approval: UL 514B, CSA
• Constructional Feature: Concrete-Tight
• Manufacturer Name: Southwire
• Material: Zinc Plated Steel
• Product UPC: 751338170643
• Type: Compression
• Used On: EMT Conduit
• Fitting Type: Coupling
• Size: 4 in
• Insulation: Non-insulated
• Connection Type: Compression
• Finish: Zinc-plated
• Conduit Type: EMT
• OD: 5-3/8 in
• Length: 5-3/4 in
• Standard: UL E148716, CSA Certified, UL Standard 514B, Federal Specification W-F-408E, NEMA FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Application: Used to Join Two Lengths of EMT
• Trade Size: 4 in.
