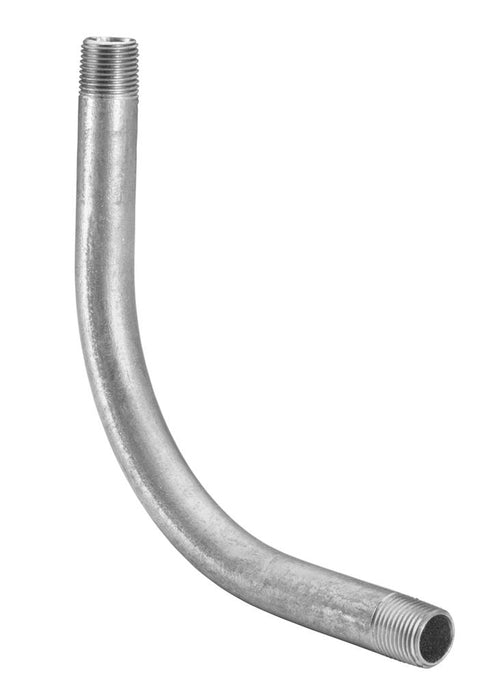

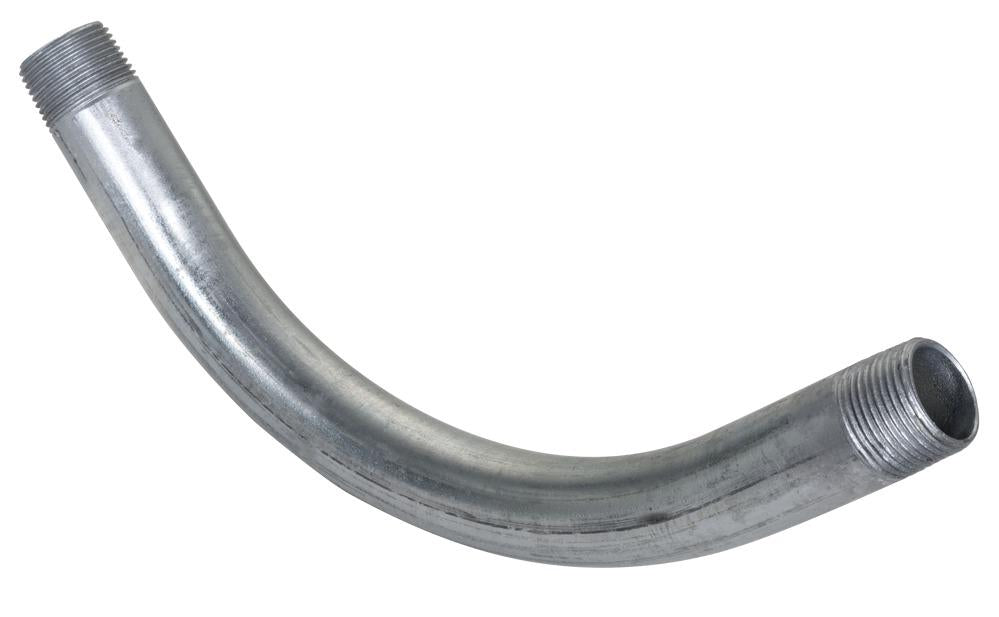

Southwire 67 2-1/2 inches Rigid Conduit Elb

Product Description

The SOUTHWIRE 67 is a 2-1/2" RIGID CONDUIT ELB designed for commercial, industrial, and residential applications. It is precision manufactured to deliver optimum safety and performance. Fabricated from galvanized steel for low conductivity and high corrosion resistance, with defect-free interior and exterior surfaces to ensure a secure connection.

• Low conductivity, high corrosion resistance
• Smooth defect free interior and exterior
• For a secure connection to rigid conduit, bend enables directional changes in conduit

Product Highlights

The Southwire Rigid Conduit Elbow is made from galvanized steel and is suitable for rigid conduit.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 67

Technical Specifications

• Southwire #: 67
• Angle: 90 deg
• Dimensions: 5-1/4 in L Leg
• Finish: Galvanized
• Material: Steel
• Radius: 10-1/2 in
• Suitable For Use With: Rigid Conduit
• Trade Size: 2-1/2 in
• Type: Threaded
• Standard Approval: UL 514B, UL 6|cULus E223147 Listed|ANSI C80.1|Federal Specification WW-C-563, A-A-50552|NEMA/ANSI FB-1|Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Application: For a secure connection to rigid conduit, bend enables directional changes in conduit
