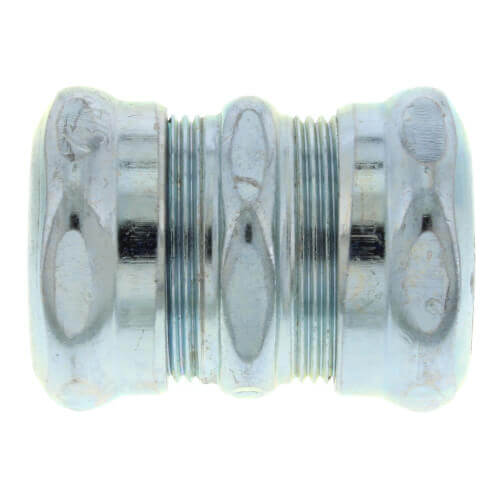

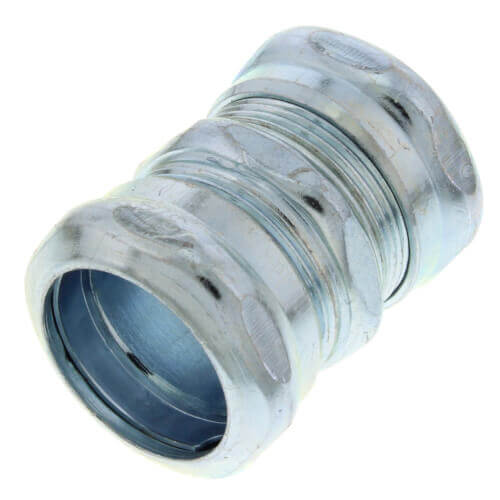

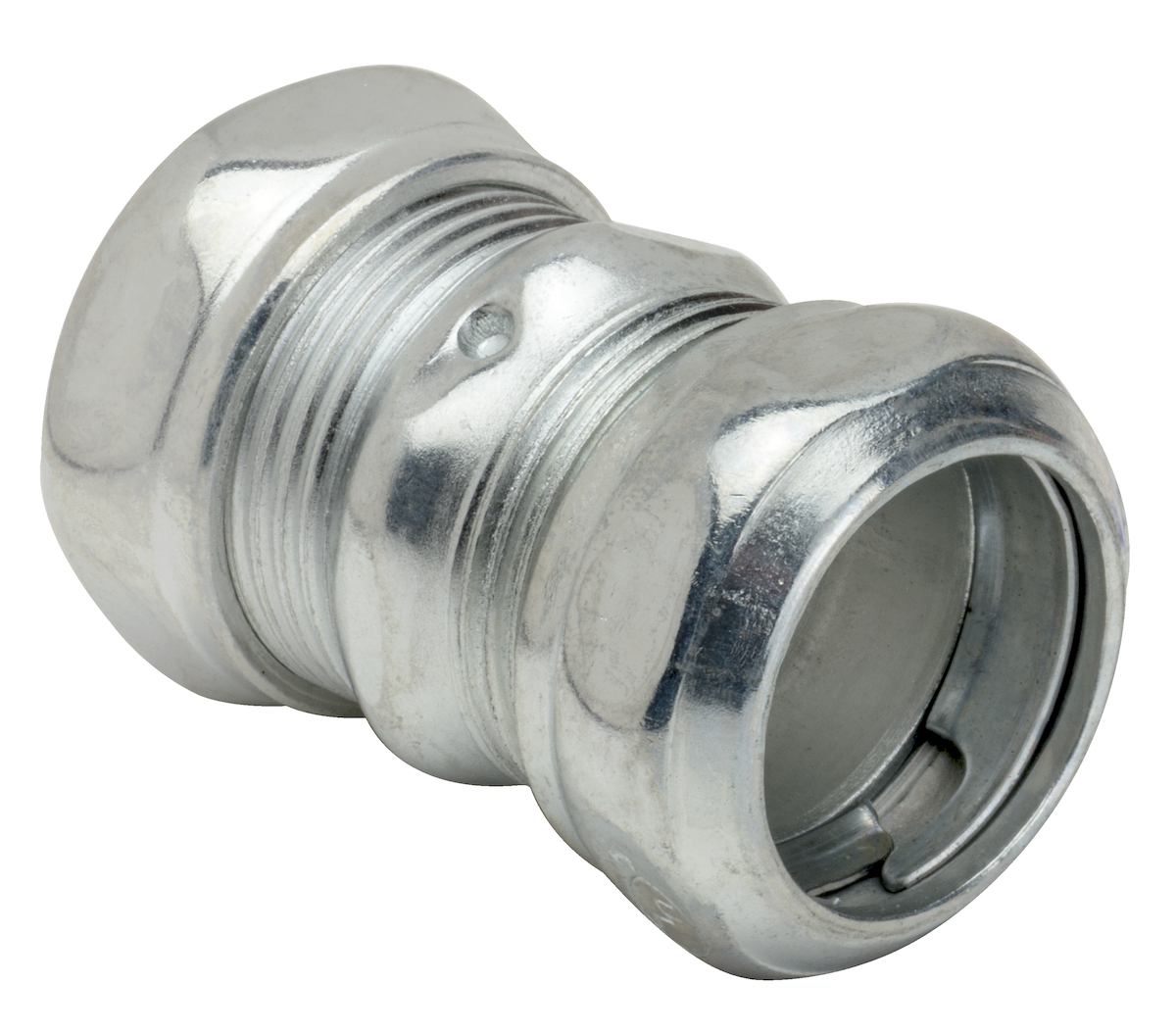

Southwire 665S conduit coupling 1-1/2 in

Product Description

The SOUTHWIRE 665S is a steel compression coupling used to join two lengths of EMT conduit. It is constructed from zinc plated steel and is concrete-tight when taped. This coupling is suitable for commercial, industrial, and residential applications. It features a compression connection and a non-insulated throat.

• UL Standard 514B
• NEMA FB-1
• Concrete Tight when taped

Product Highlights

Steel compression coupling joins two lengths of EMT conduit. Zinc plated for corrosion resistance and concrete-tight when taped.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 665S

Technical Specifications

• Approval: UL 514B, CSA
• Constructional Feature: Concrete-Tight
• Manufacturer Name: Southwire
• Material: Zinc Plated Steel
• Product UPC: 751338170506
• Type: Compression
• Used On: EMT Conduit
• NEMA: FB-1
• Size: 1-1/2 in
• Suitable For Use With: EMT Conduit
• Application: For joining two lengths of EMT
• Standard & Approvals: UL 514B File No. E148716, CSA Certified, Federal Specification W-F-408E, NEMA/ANSI FB-1, Military Specification W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Finish: Zinc Plated
