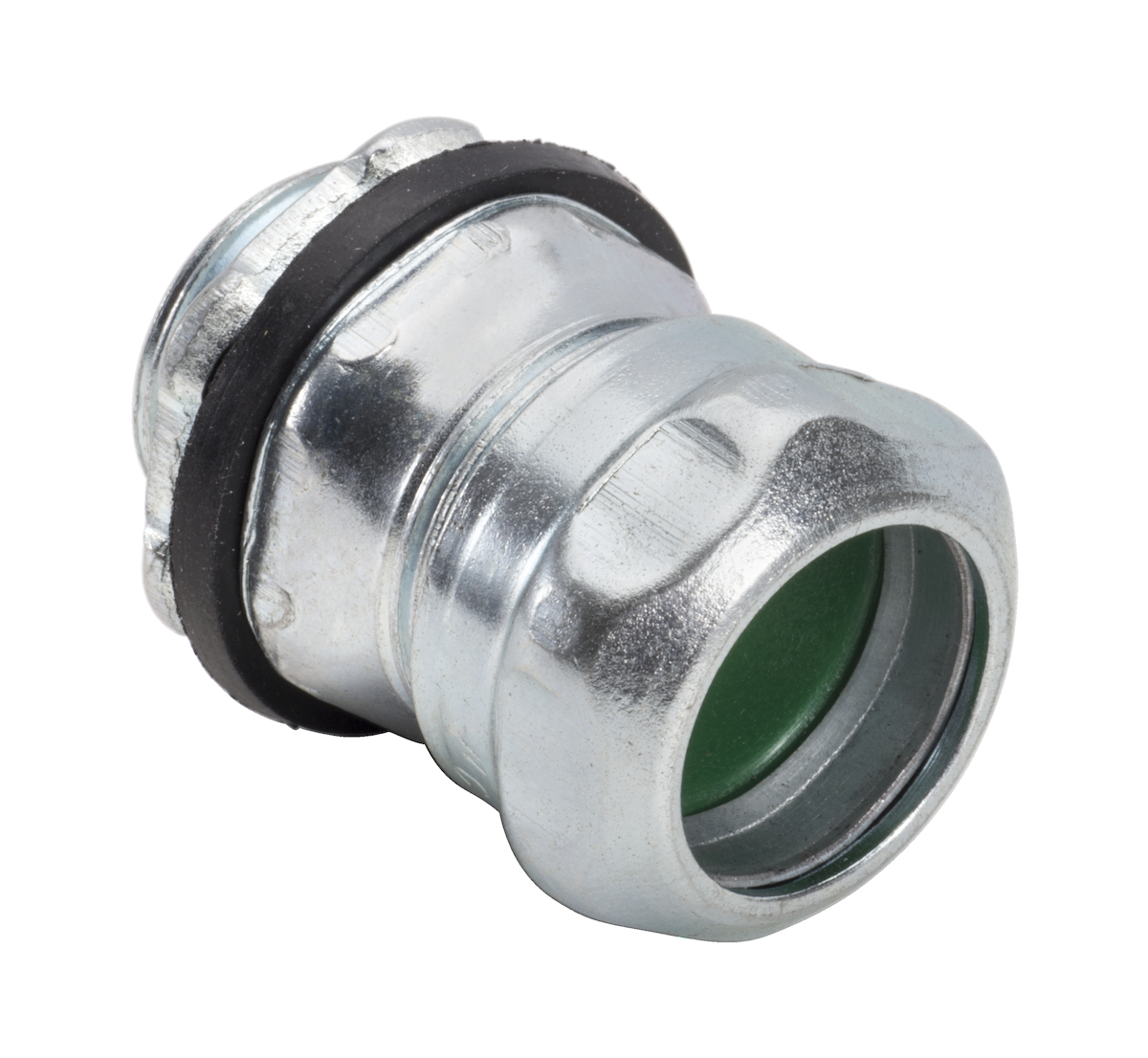

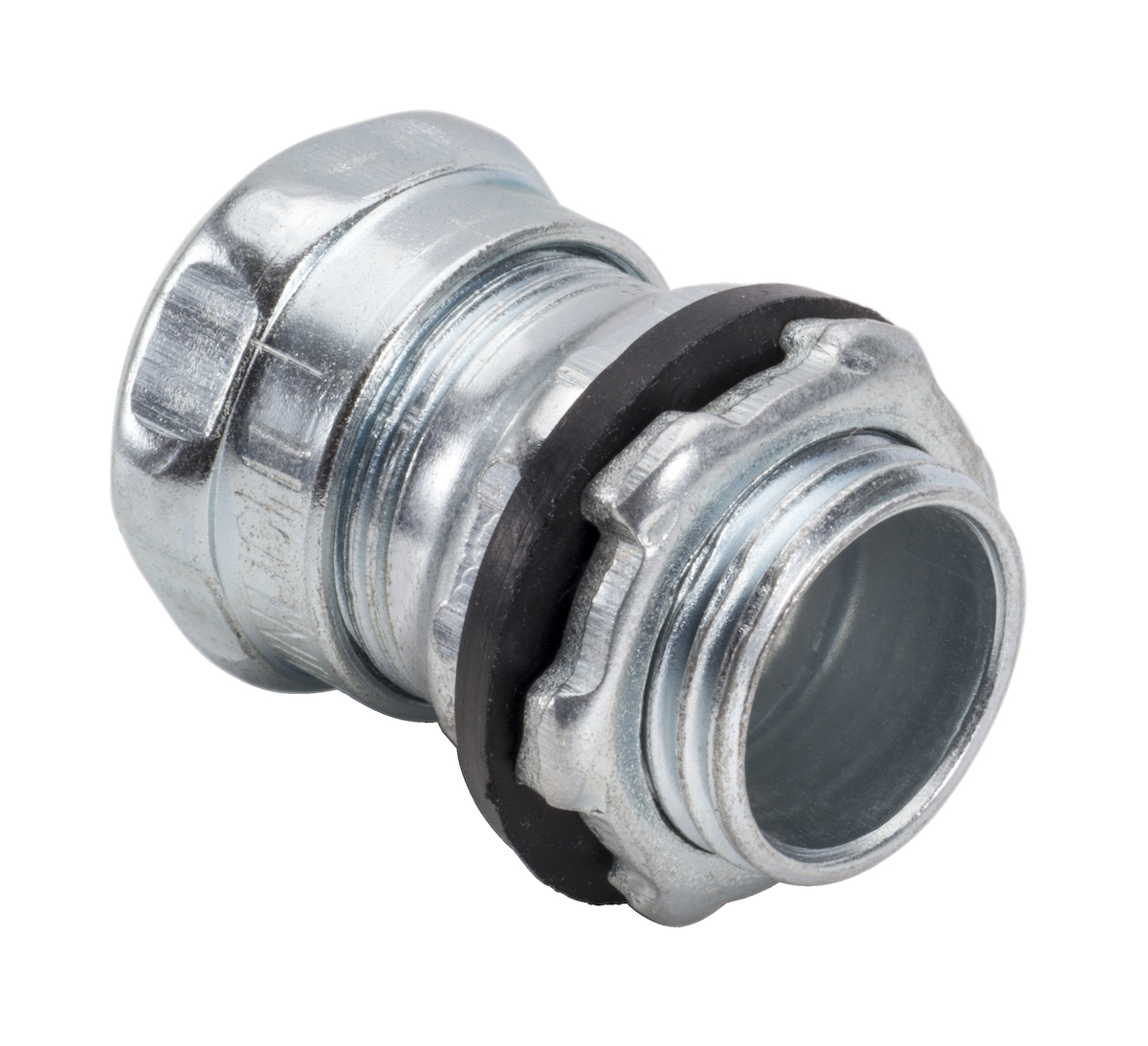

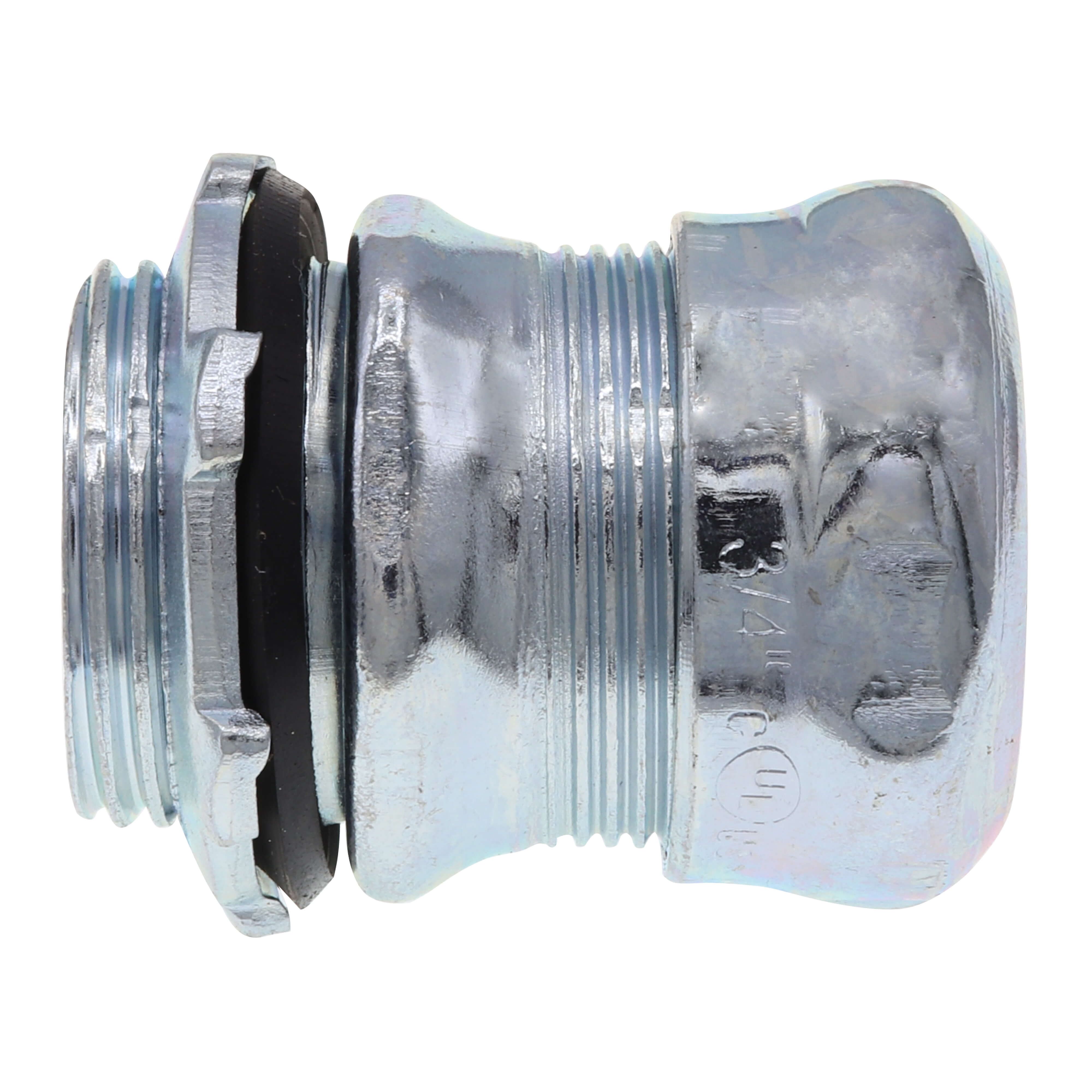

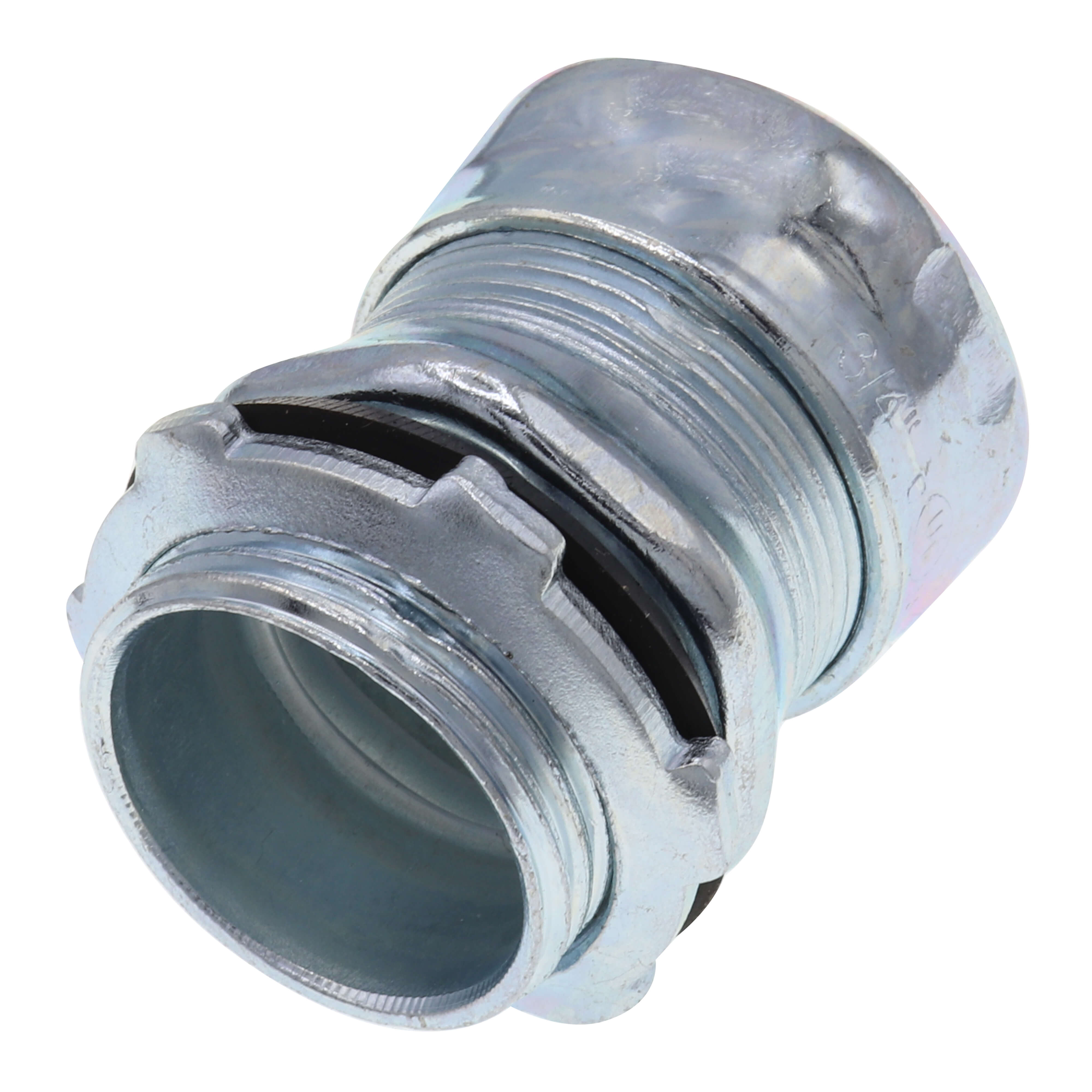

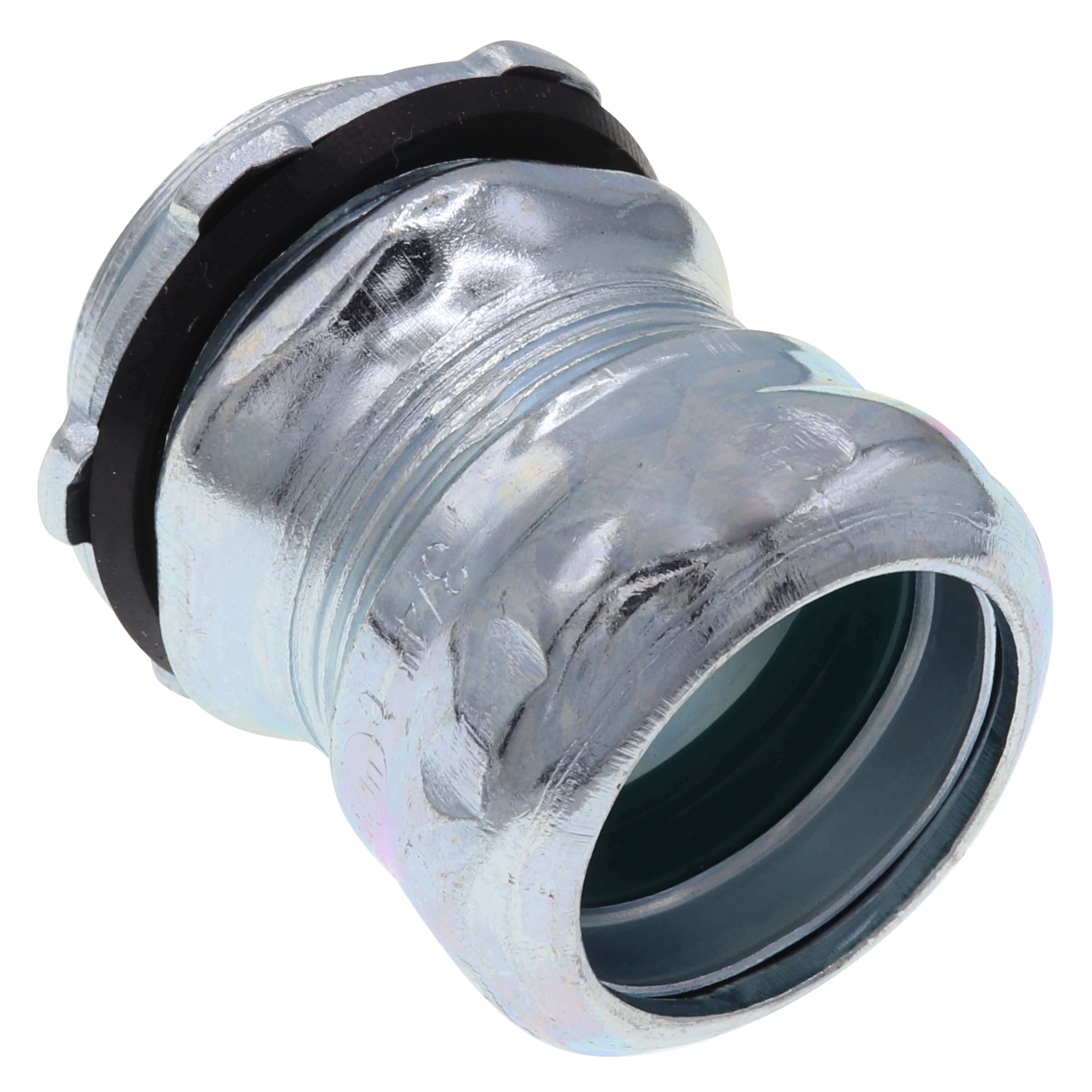

Southwire 652SRT EMT Conduit Connector 3/4 inches

Product Description

The SOUTHWIRE 652SRT EMT Conduit Connector features a compression type assembly and provides a raintight and concrete tight connection. Constructed from rugged steel with a zinc plated finish, it securely bonds EMT thin wall conduits to electrical boxes or enclosures. This connector is UL and CSA approved and NEMA/ANSI FB-1 compliant.

• Rugged steel construction with a zinc plated finish
• Used to securely bond EMT thin wall conduits to electrical boxes or enclosures
• UL listed

Product Highlights

Steel EMT connector with compression type assembly for a raintight and concrete tight connection.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 652SRT

Technical Specifications

• Approval: UL, CSA
• Constructional Feature: Concrete-Tight, Raintight
• Manufacturer Name: Southwire
• Material: Zinc Plated Steel
• Product UPC: 751338830608
• Thread Length: 0.438 Inch
• Throat Type: Non-Insulated
• Type: Compression
• Used On: EMT Conduit
• Size [Features]: 3/4"
• Diameter: 3/4 in
• Insulation: Non-Insulated
• Connection Type: Compression
• Finish: Zinc-Plated
• Length: 3/4 in
• Trade Size: 3/4 in
