Product Description

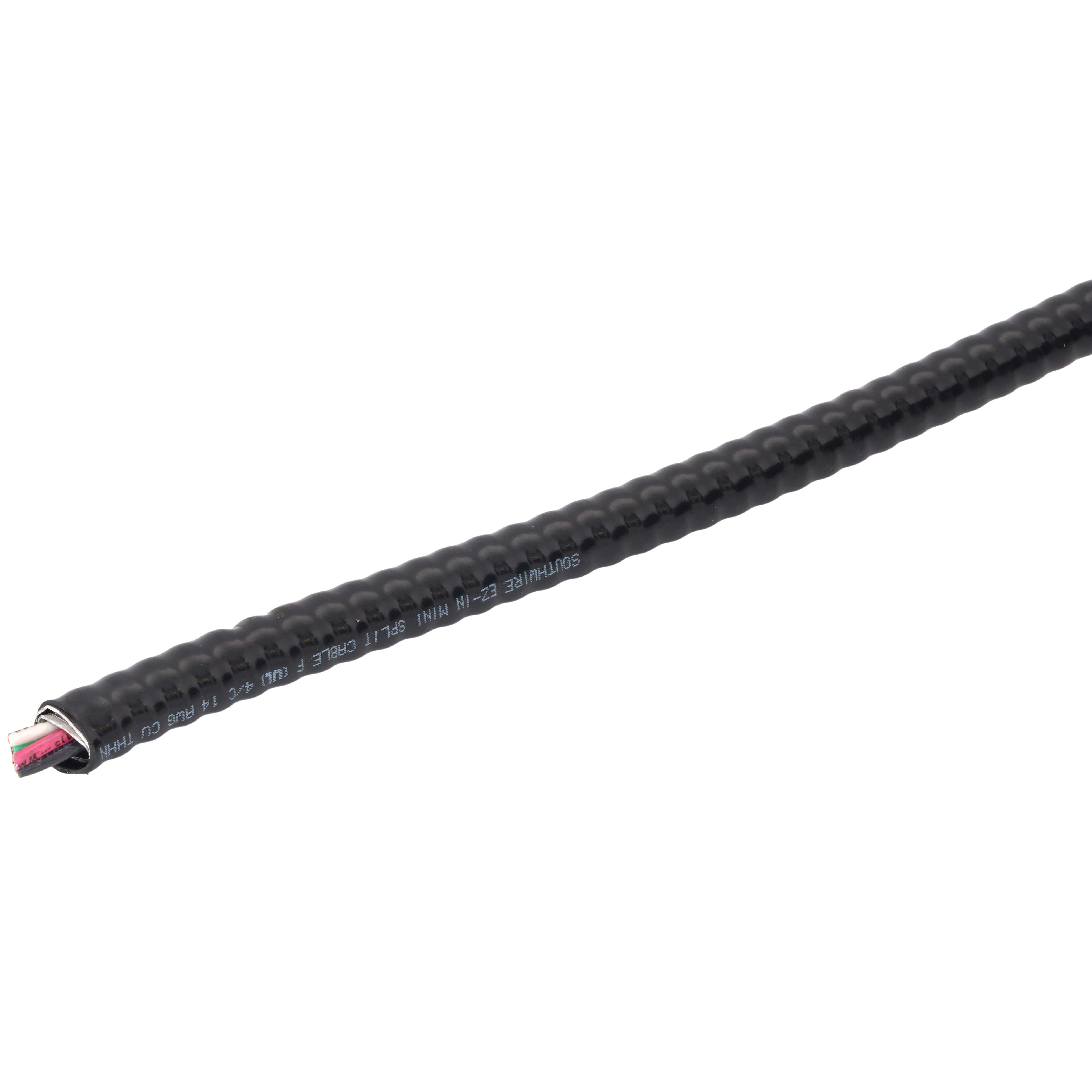

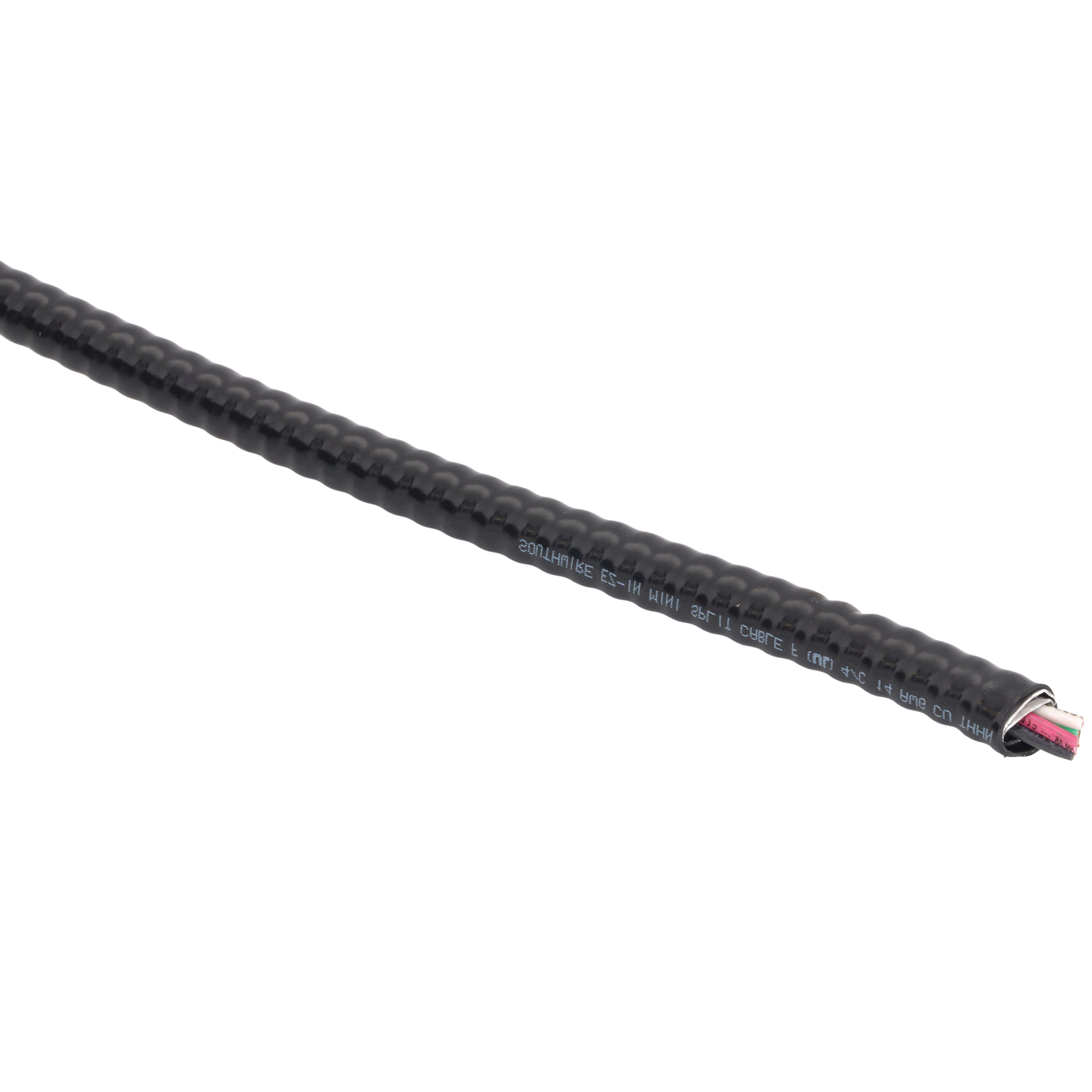

The Southwire 59351203 EZ-IN Shielded Mini-Split Cable is designed for HVAC mini-split installations, offering ease of installation by eliminating the need for conduit or cable trays. This 14 AWG, 4-conductor, 600V cable is suitable for wet locations and can be installed in concealed or exposed environments, including cable trays and as aerial cable.
- 14 AWG, 4-conductor, 600V rated for reliable power transmission.
- Stranded, shielded design with 18 AWG tinned copper drain wire for protection.
- Suitable for wet locations and resistant to moisture and sunlight.
Product Highlights
Features EZ-IN technology for simplified HVAC mini-split installations.
Product Information
Standard Information
-
Brand: SOUTHWIRE
-
Manufacturer Part Number: 59351203
-
Country of Origin: USA
Technical Specifications
-
Wire Gauge: 14 AWG
-
Number of Conductors: 4
-
Cable Type: Stranded, Shielded Mini Split Cable
-
Voltage Rating: 600V
-

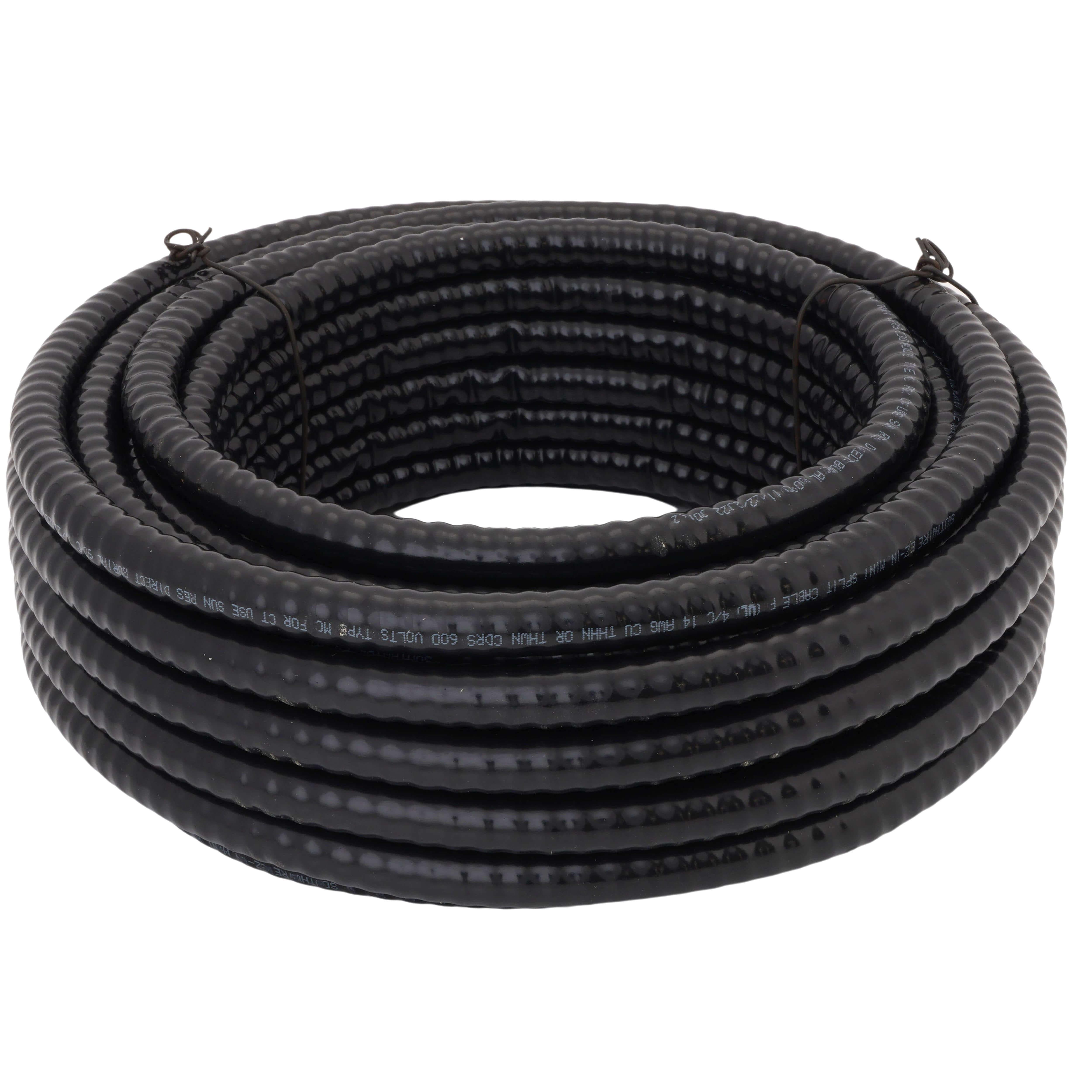

Length: 50 ft
-
Outer Jacket Color: Black
-
Specification Number: 60422
-
Construction: 14 AWG 4C 7 STR
-
Conductor Color: Black/Red/Green/White
-
Diameter Over Conductor: 0.070 inch
-
Conductor Strands: 7
-
Insulation Thickness: 20 mils
-
Diameter Over Armor: 0.484 inch
-
Jacket Thickness: 50 mils
-
Approximate Outer Diameter: 0.590 inch
-
Approximate Weight (per 1000 ft): 175 lbs
-

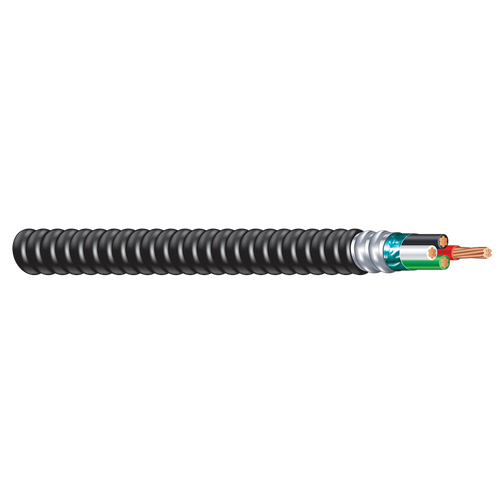

Conductor Material: Stranded Class B Compressed Copper
-
Insulation Material: Polyvinyl Chloride (PVC) with Nylon Sheath
-
Shield Material: Aluminum Foil with 18 AWG 19-strand Tinned Copper Drain Wire
-
Armor Material: Aluminum Interlocked Armor
-
Jacket Material: Polyvinyl Chloride (PVC) Sunlight Resistant
-
Standards Met: UL 83, UL 1569, Federal Specification A-A59544, NFPA 70 Article 330, ASTM B3, ASTM B8, ASTM B33
-
Application Type: Ductless
