Southwire 59351202 14/4 Stranded Bare Copper EZ-IN Shielded Mini Split Cable 600V 250 ft

Product Description

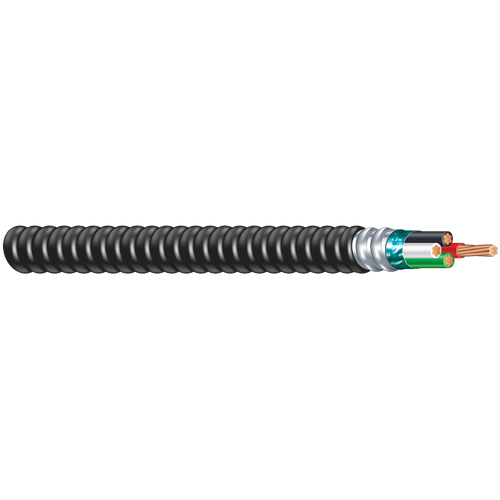

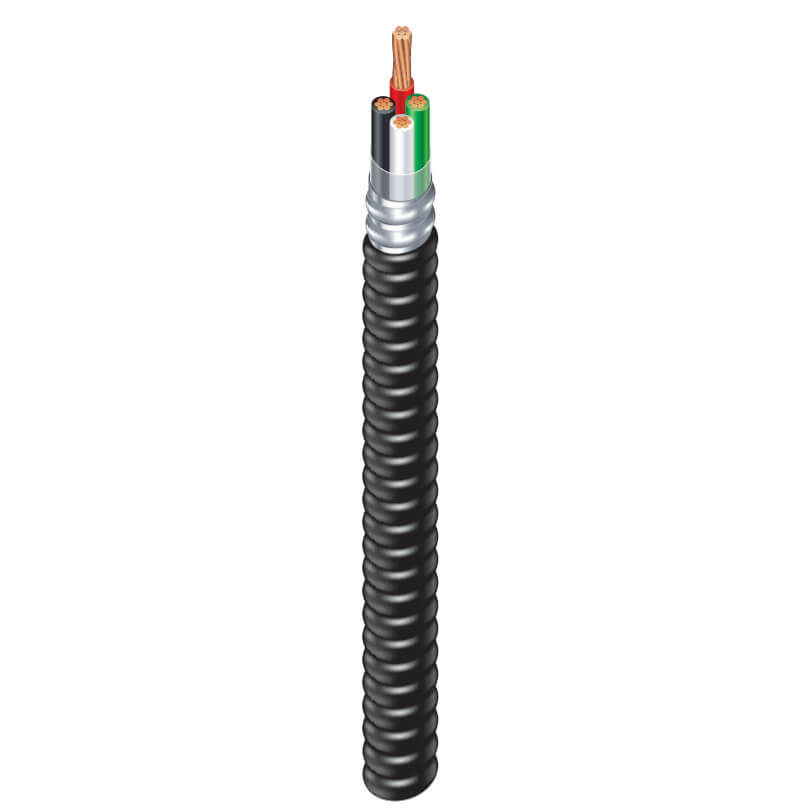

The SOUTHWIRE 59351202 is a 250 ft. spool of 14/4 Stranded Bare Copper EZ-IN Shielded Mini Split Cable. This 600V cable is designed for indoor and outdoor use, including wet locations and direct burial, and can be installed without conduit. It features stranded, bare copper THHN/THWN conductors, interlocked aluminum armor, and a flame retardant PVC jacket. The cable is moisture and sunlight resistant, with a temperature rating of 90°C (Dry) and 75°C (Wet).

• Can be installed without the use of conduit.
• Moisture and Sunlight Resistant.
• Features 14 AWG, 4 conductors, and is rated for 600 Volts.

Product Highlights

Shielded mini-split cable for indoor/outdoor use, direct burial, and conduit-free installation.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 59351202
• Country of Origin: USA

Technical Specifications

• AWG: 14
• Conductors: 4
• Voltage: 600V
• Temperature Rating: 90°C (Dry) and 75°C (Wet)
• Application Environment: Indoors and outdoors in wet locations, direct burial
• Installation Method: Can be installed without the use of conduit
• Length: 250 ft
• Wire Type: Mini-Split Cable
• Jacket Color: Black
• Conductor Material: Stranded class B compressed copper per ASTM B3 and ASTM B8
• Insulation Material: Polyvinyl Chloride (PVC) with Nylon Sheath
• Shield Material: Aluminum foil with 18 AWG 19-strand tinned copper drain wire
• Armor Material: Aluminum Interlocked Armor
• Jacket Material: Polyvinyl Chloride (PVC) sunlight resistant
• Compliance: ASTM B3, ASTM B8, ASTM B33, UL 83, UL 1569, Federal Specification A-A59544, NFPA 70
• Conductor Color: BK,RD,WE,GN
• Diameter Over Conductor (in): 0.070
• Conductor Strands: 7
• Insulation Thickness (mils): 20
• Diameter Over Armor (in): 0.484
• Jacket Thickness (mils): 50
• Approx. OD (in): 0.590
• Approx. Weight (lbs/1000ft): 175
• Ducted or Ductless: Ductless
• Application: Mini Split
• Type: Shielded Cable
• Packaging Type: Reel
