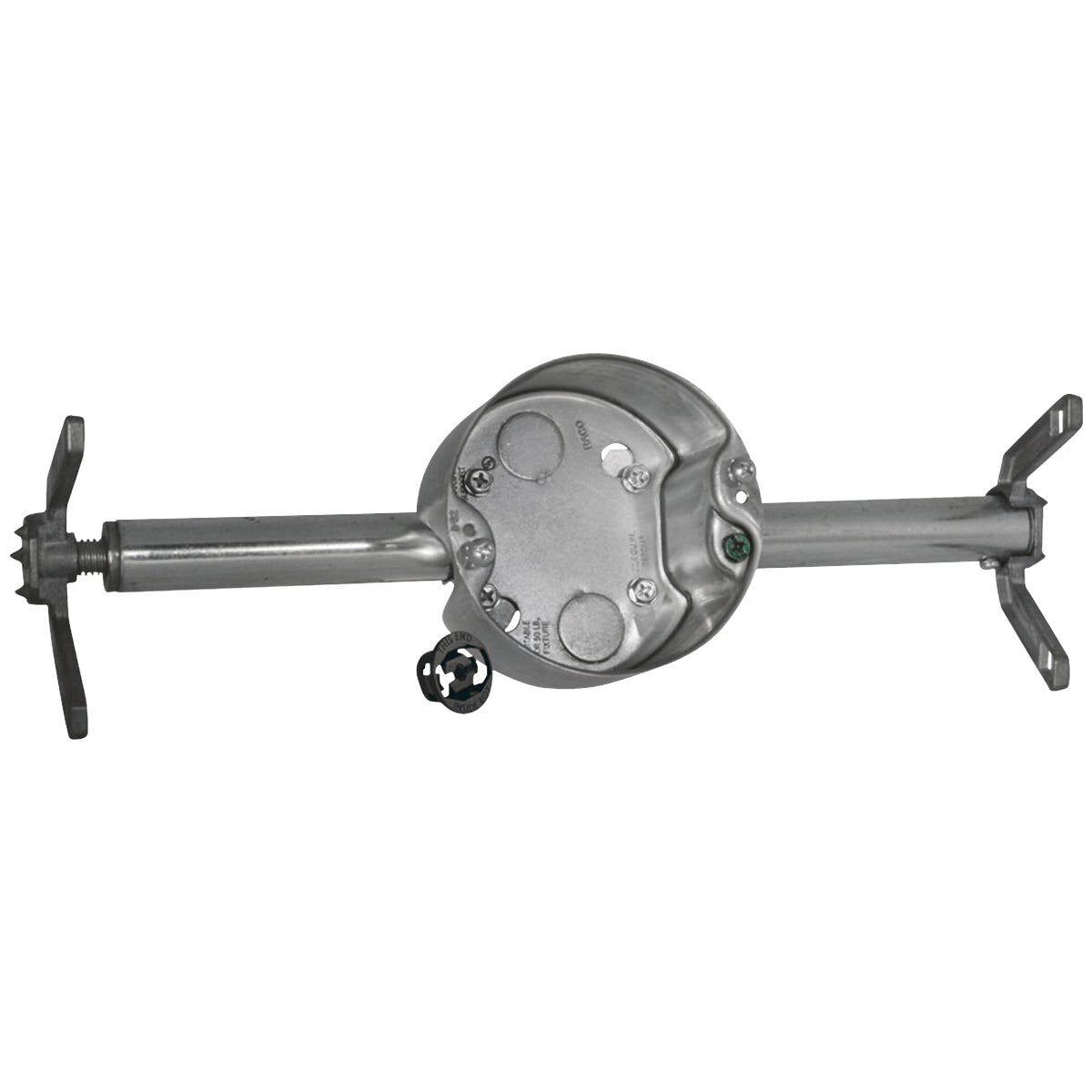

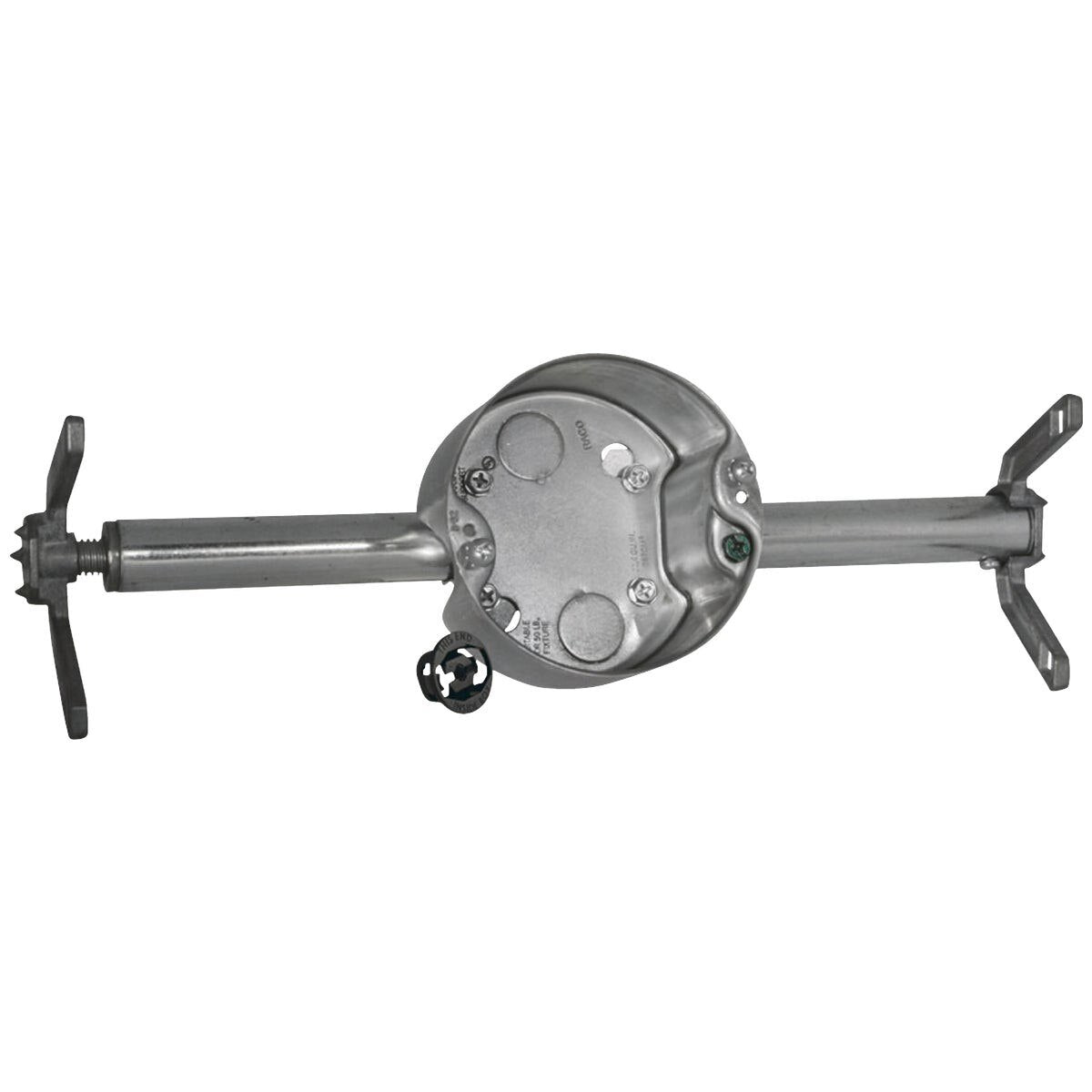

Southwire 54171-FANOW-UPC 4 in Bracket Mount Ceiling Fan Box

Product Description

The SOUTHWIRE 54171-FANOW-UPC is a bracket mount retrofit ceiling fan box designed for new or existing ceiling installations where a standard stud mount is not available. The box uses an expandable bracket that spans between joists, allowing secure mounting without direct stud access. It ships with combination-head cover mounting screws included. UL and RoHS listings confirm it meets safety and environmental standards required by most local codes. Electricians and qualified installers use this box when retrofitting fan-rated support into finished ceilings without opening drywall beyond the box cutout.

This ceiling fan box is suited for residential and light commercial applications. It supports the installation of ceiling fans, ceiling and wall lighting fixtures, and convenience outlets or devices. The retrofit design makes it a practical choice for remodel and renovation work where joist access is limited or the existing box is not fan-rated. The 4-inch round box format is a standard size used across a wide range of fan and fixture applications.

Key Features

• Expandable bracket mount design allows installation between ceiling joists without stud access
• 4-inch round ceiling box format fits standard fan and fixture canopies
• Combination-head cover mounting screws included
• UL listed for safety compliance
• RoHS listed for restricted hazardous substance compliance
• Retrofit-ready for remodel and renovation installations

Compatibility

Designed as an OEM-style replacement and retrofit solution for residential ceiling fan and light fixture installations requiring a fan-rated bracket-mount electrical box.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC Article 314 and local electrical codes. Shut off circuit power at the breaker panel and verify the circuit is de-energized with a non-contact voltage tester before beginning work. Confirm the bracket is fully extended and locked against the joists before attaching the fan or fixture. Do not exceed the weight and load ratings specified by the fan or fixture manufacturer.

Technical Specifications

• Box Size: 4 inches
• Mount Type: Bracket Mount Retrofit
• Weight: 2.38 pounds
• Listings: UL, RoHS
• Included Hardware: Combination-head cover mounting screws

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 54171-FANOW-UPC
