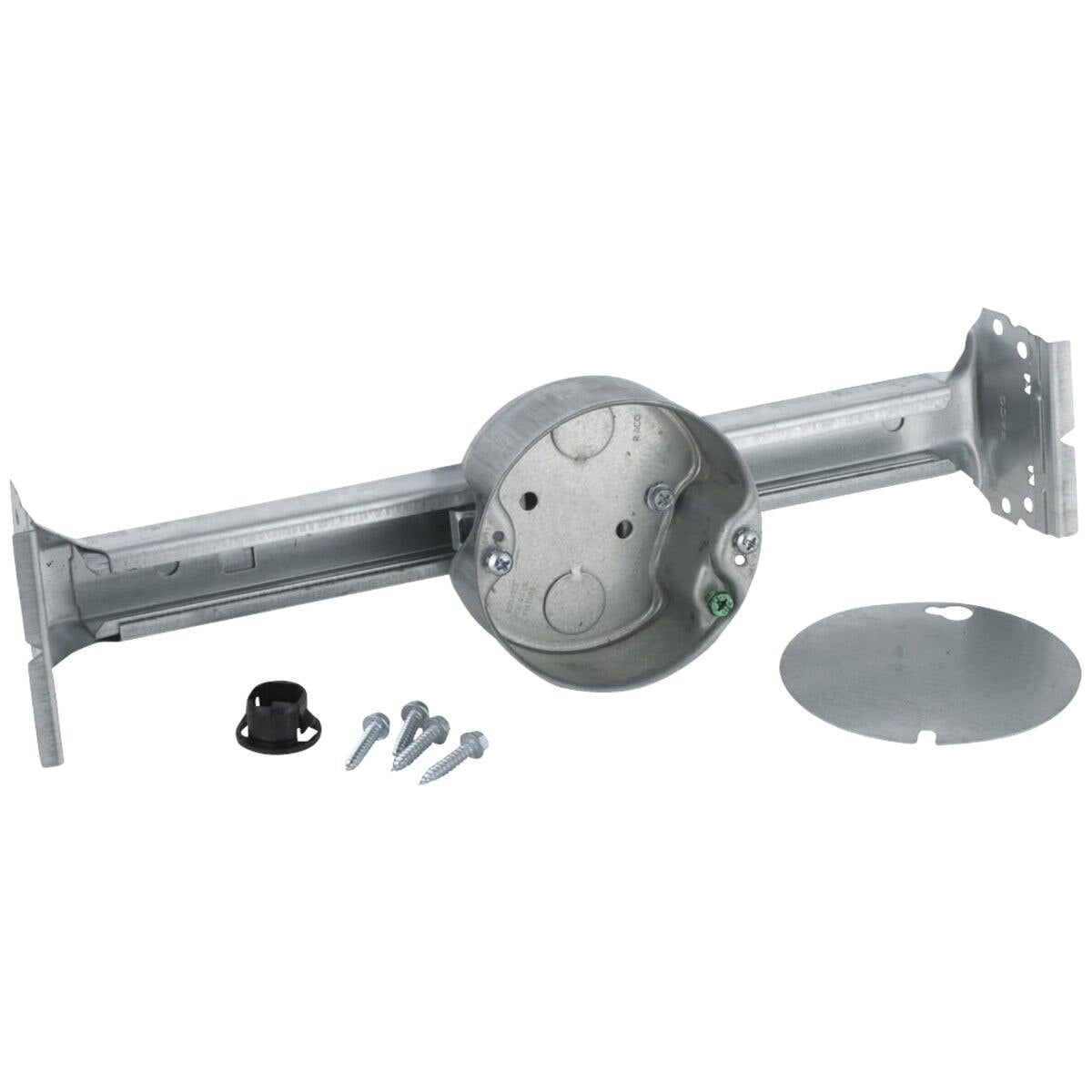

Southwire 54151-FANBH-UPC Ceiling Fan Box Bracket Mount

Product Description

The SOUTHWIRE 54151-FANBH-UPC is a bracket-mount new construction ceiling fan box designed for residential and light commercial electrical installations. It supports ceiling fan mounting as well as wall and ceiling lighting fixtures, convenience outlets, and other wiring devices. The box features a combination-head fixture design and ships with cover mounting screws included. At 2.18 pounds, it is a solid, code-ready solution for electricians roughing in fan and fixture locations during new construction framing. UL listing and RoHS compliance confirm it meets established safety and environmental standards.

This ceiling fan box is intended for new construction applications where bracket mounting is required. It is suited for residential ceilings and light commercial settings where an electrician needs a reliable, code-compliant fan-rated box installed during the framing stage before drywall. The bracket mount design allows installation between joists without requiring direct attachment to framing lumber, making it practical in a range of joist spacings. The 1-1/2 inch depth accommodates standard wiring and box-fill requirements in typical ceiling assemblies.

Key Features

• Bracket-mount design installs between joists without direct framing attachment
• 1-1/2 inch box depth supports standard wiring and box-fill compliance
• Combination-head fixture accommodates fans, lighting fixtures, and convenience devices
• Cover mounting screws included for complete installation
• UL listed for fan and fixture support loads
• RoHS compliant for restricted hazardous substance requirements

Compatibility

Designed as an OEM-style replacement and new construction solution for standard residential and light commercial ceiling fan and lighting fixture installations requiring a bracket-mount fan-rated electrical box.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for fan-rated outlet boxes. Shut off circuit power at the breaker panel and verify with a non-contact voltage tester before beginning work. The bracket should be secured firmly between joists before attaching the fan or fixture to avoid load-bearing failure. Do not use a non-fan-rated box as a substitute for a fan-rated enclosure when supporting ceiling fans.

Technical Specifications

• Box Depth: 1-1/2 inches
• Mount Type: Bracket Mount
• Application: New Construction
• Weight: 2.18 pounds
• Certifications: UL Listed, RoHS Compliant
• Sold As: Each

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 54151-FANBH-UPC
