Southwire 534 Rigid Conduit Strap 1-1/4 inches

Product Description

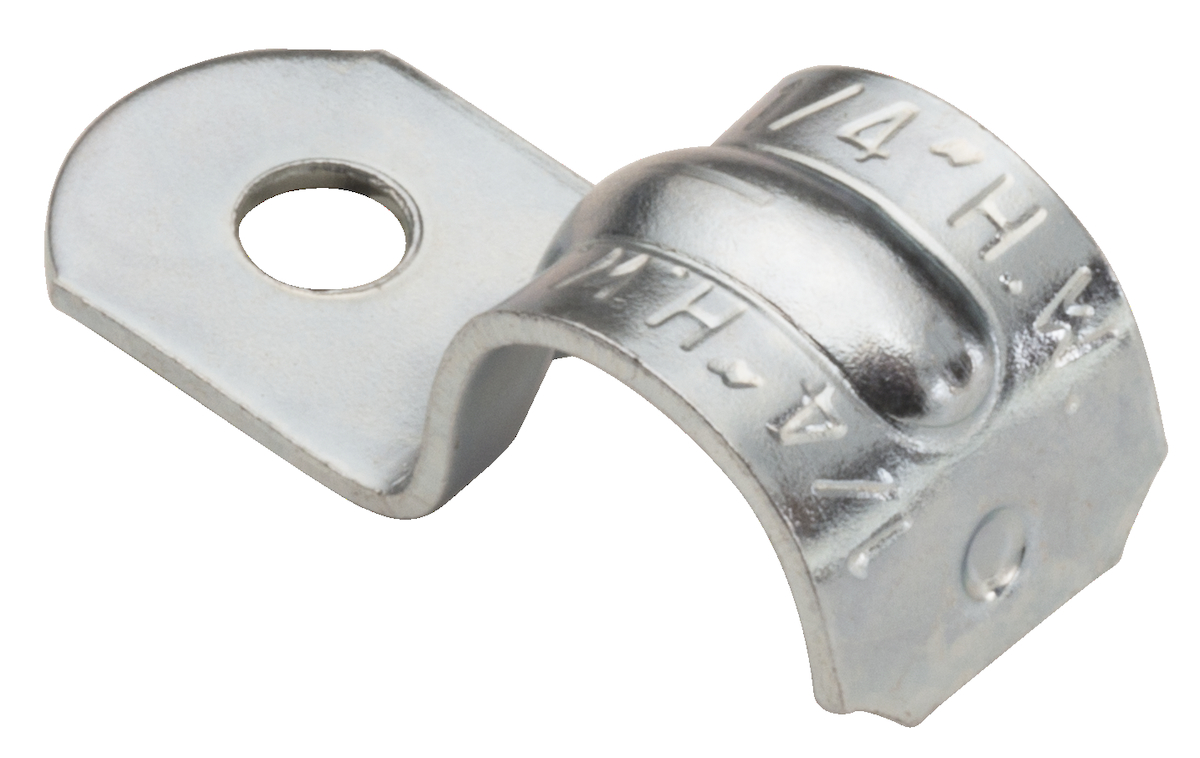

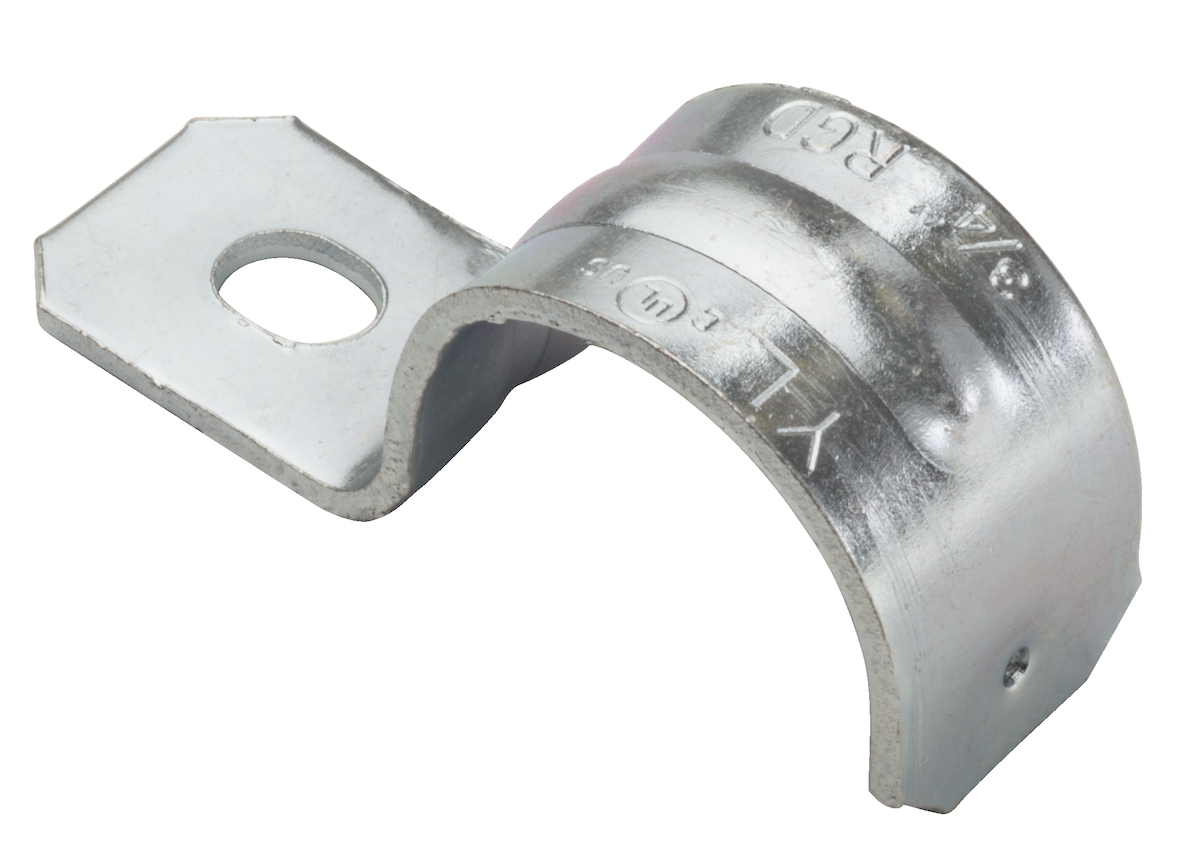

The SOUTHWIRE 534 is a 1-1/4" rigid one-hole snap-on strap designed for securing IMC/Rigid conduit. Constructed from steel with a zinc plated finish, it is suitable for indoor and outdoor applications. The strap is UL approved and provides greater load bearing capability.

• Snap-on Rigid strap with one hole
• Greater load bearing capability
• Easy to install

Product Highlights

This steel, zinc plated one-hole strap is easy to install and provides secure support for rigid/IMC conduit.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 534

Technical Specifications

• Approval: UL
• Manufacturer Name: Southwire
• Material: Steel
• Product UPC: 751338150805
• Type: 1-Hole Snap-On
• Used On: IMC/Rigid Conduit
• Width: 0.88 Inch
• Size: 1-1/4 in
• Suitable For Use With: IMC/Rigid Conduit
• Application: For use to secure rigid/IMC conduit to wood, masonry or where greater load bearing is required, indoor and outdoor applications
• Standard & Approvals: UL 514B, UL File No. E170258, Federal Specification No. A-A-50553, NEMA/ANSI FB-1, Federal Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Finish: Zinc Plated
