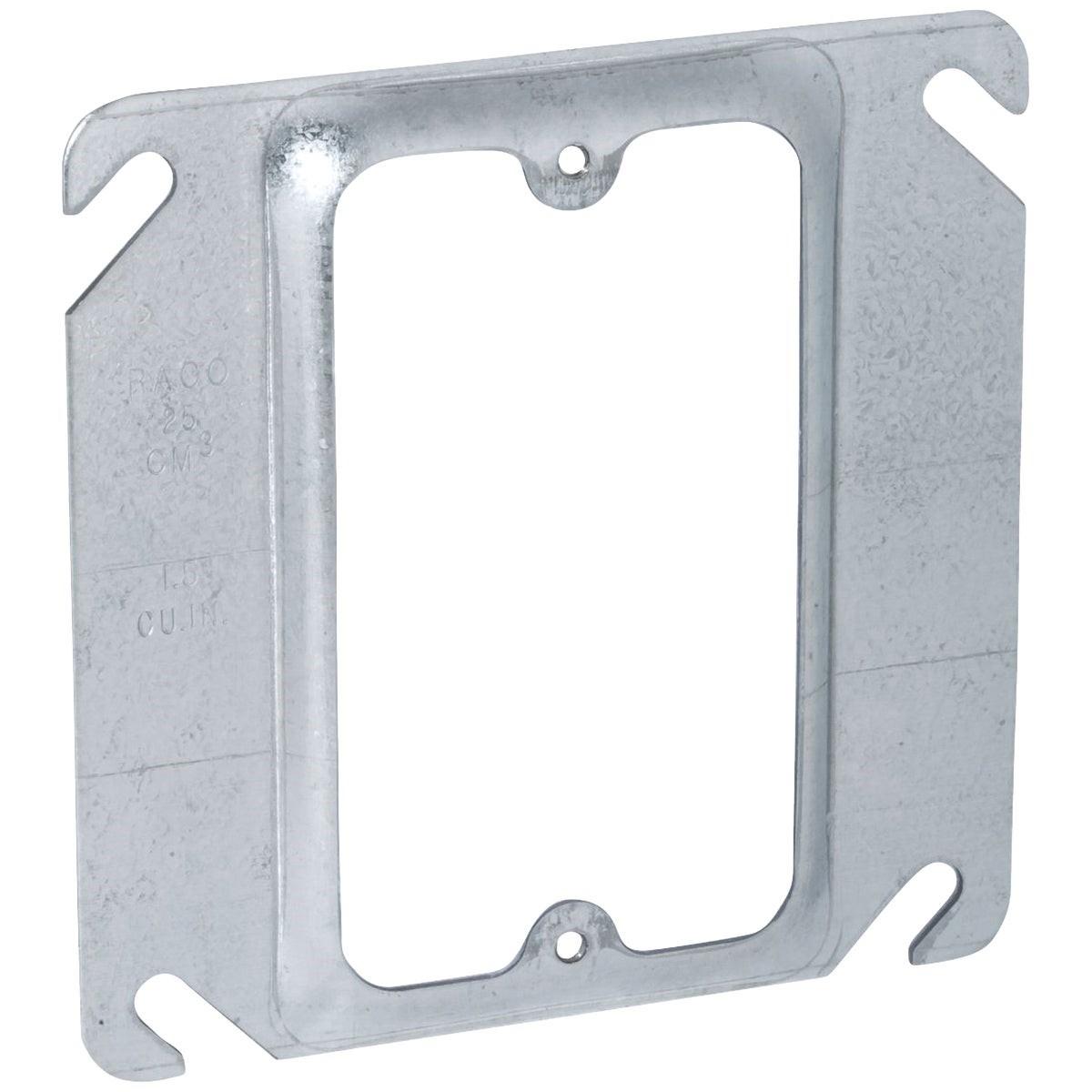

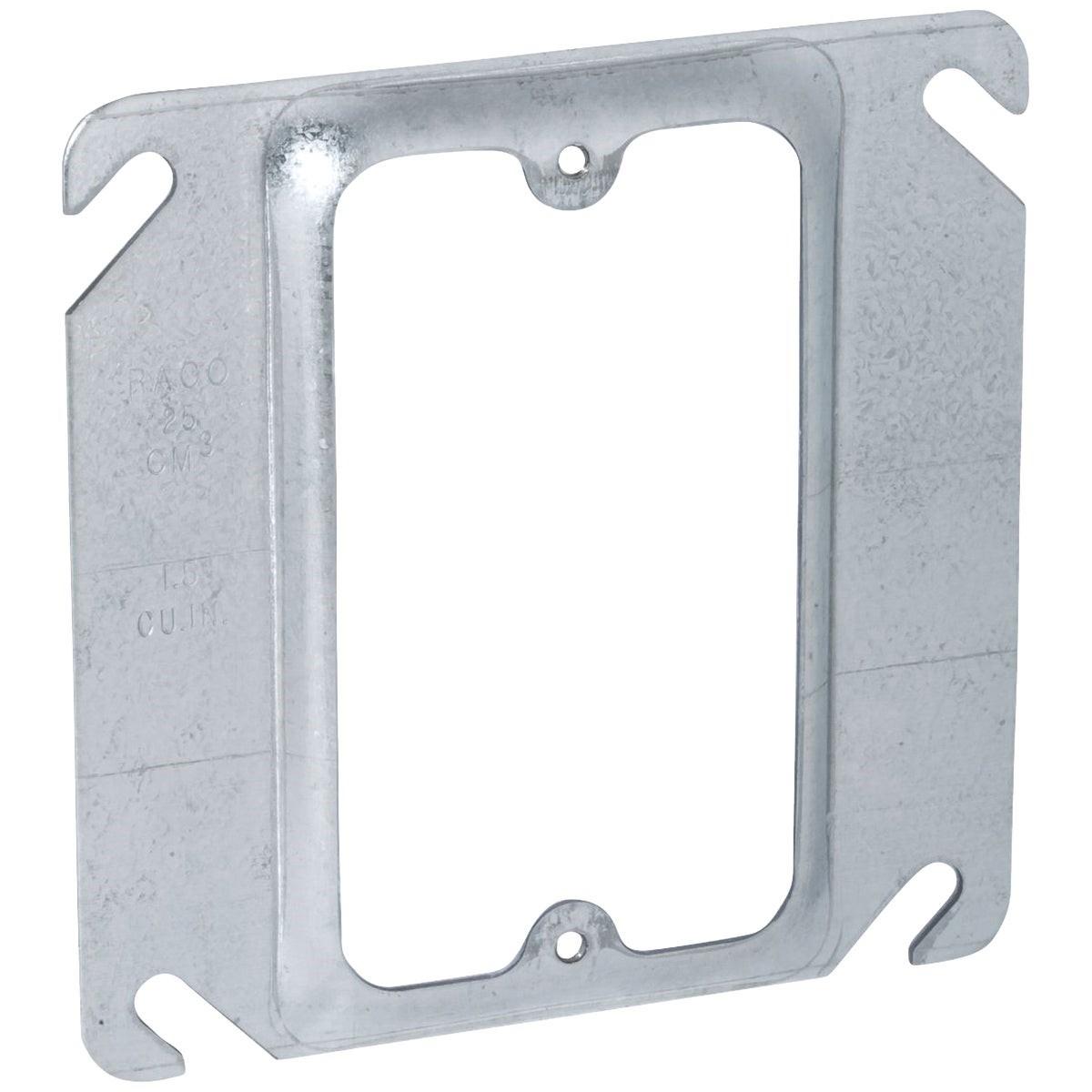

Southwire 52C62-UPC 1-gang 4x4 Square Raised Device Ring

Product Description

The SOUTHWIRE 52C62-UPC is a 1-gang square raised device ring designed for use with 4-inch by 4-inch square electrical boxes. It mounts switches, receptacles, and other wiring devices in residential and commercial electrical installations. The cover features angled slots that compensate for up to 0.5 inches of box misalignment on upright framing members, making it easier to achieve a plumb, flush finish even when boxes are slightly off-center. This ring is UL listed and RoHS compliant, meeting standard safety and environmental requirements. Licensed electricians rely on this type of raised cover ring as a cost-effective, code-ready solution for square-box device installations.

The 52C62-UPC is suited for standard rough-in and finish electrical work in residential and light commercial settings. It is used wherever a 4-inch square box requires a single-gang device configuration, including wall outlets, toggle switches, and similar wiring devices. The angled-slot design makes it particularly useful in wood-framed construction where stud faces may not be perfectly plumb, reducing the need to reposition the box before cover installation.

Key Features

• Compatible with 4-inch by 4-inch square electrical boxes for single-gang device mounting
• Angled slots compensate for up to 0.5 inches of box misalignment on upright framing members
• Accommodates switches, receptacles, and standard wiring devices
• UL listed and RoHS compliant for code-compliant installations
• Lightweight construction at 0.143 pounds per unit

Compatibility

Designed as an OEM-style replacement and standard-fit raised cover ring for 4-inch by 4-inch square electrical boxes requiring a single-gang device configuration.

Installation Notes

Installation is performed by licensed electricians in accordance with the National Electrical Code (NEC). Always de-energize the circuit at the breaker and verify with a voltage tester before handling any wiring or mounting hardware. Secure the ring to the square box using the appropriate machine screws, and confirm device alignment before fastening completely. Do not overtighten fasteners, as this can crack the device ears on receptacles or switches mounted to the ring.

Technical Specifications

• Configuration: 1-Gang
• Box Compatibility: 4 x 4 inch square boxes
• Misalignment Compensation: Up to 0.5 inches
• Weight: 0.143 pounds
• Certifications: UL Listed, RoHS Compliant
• Unit of Measure: Each

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 52C62-UPC
