Southwire 527 EMT Conduit Strap 2-1/2 in

Product Description

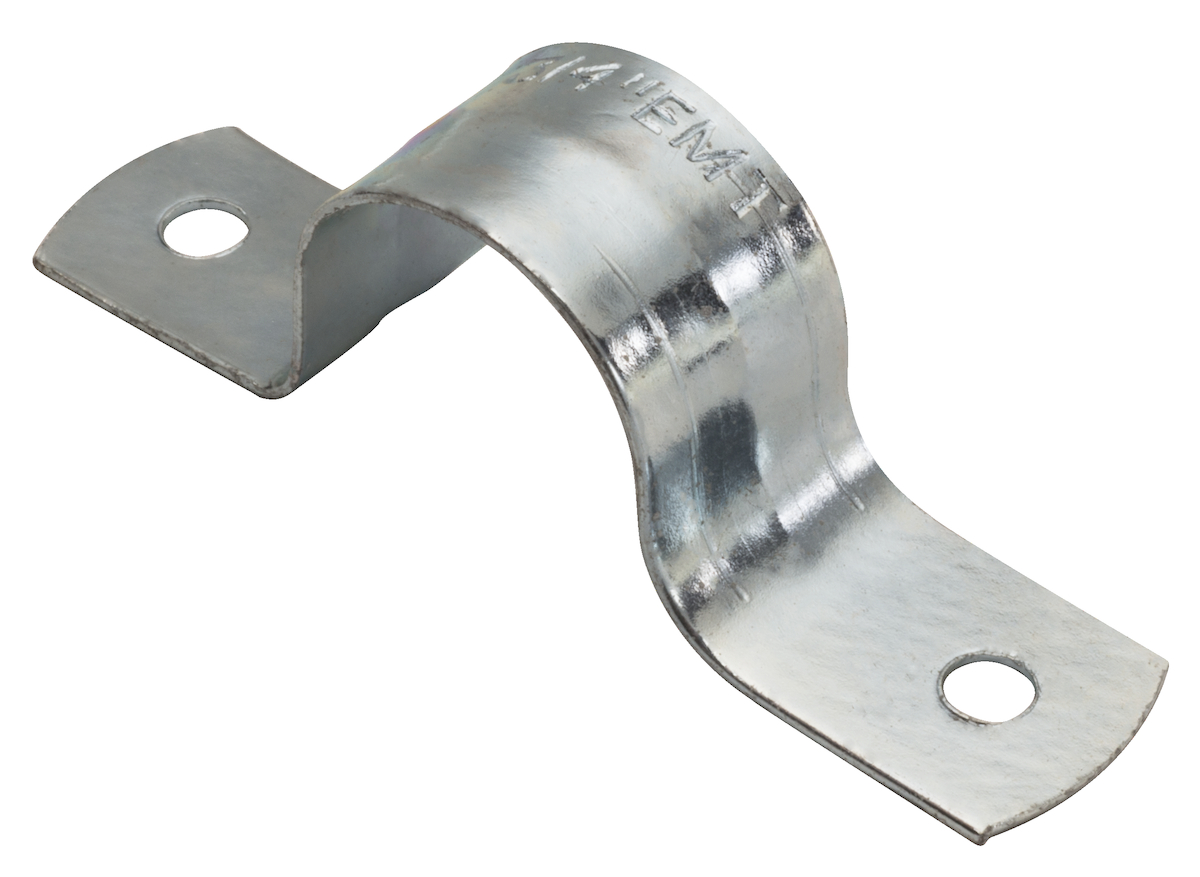

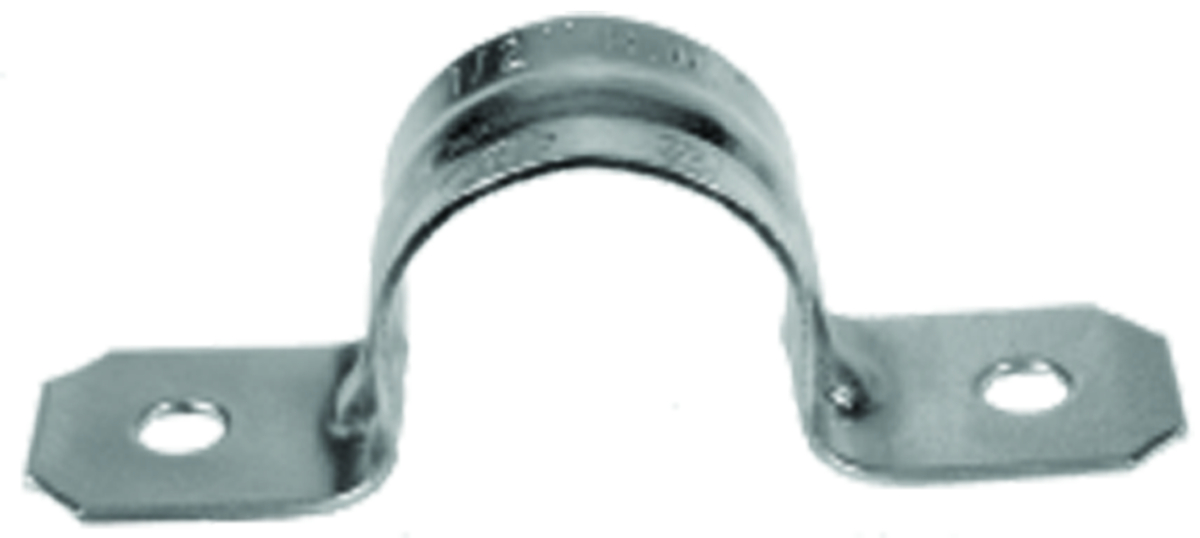

The SOUTHWIRE 527 is a 2-1/2 inch EMT conduit strap designed to support EMT conduit where greater load bearing is required. It features a two-hole, snap-on design for easy installation. Constructed from zinc plated steel, this strap is suitable for both indoor and outdoor applications.

• Snap-on type EMT strap with two holes
• Greater load bearing capability
• Easy to install

Product Highlights

The SOUTHWIRE 527 EMT conduit strap provides secure support for EMT conduit with its durable construction and easy snap-on installation.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 527

Technical Specifications

• Approval: UL
• Manufacturer Name: Southwire
• Material: Zinc Plated Steel
• Product UPC: 751338150102
• Type: 2-Hole Snap-On
• Used On: Rigid/EMT Conduit
• Width: 1 Inch
• Suitable For Use With: EMT/Rigid Conduit
• Application: For use to support EMT conduit where greater load bearing is required, indoor and outdoor applications
• Standard & Approvals: UL 514B, UL File No. E170258, Federal Specification No. A-A-50553, NEMA/ANSI FB-1, Federal Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Finish: Zinc Plated
• Size: 2-1/2 in
