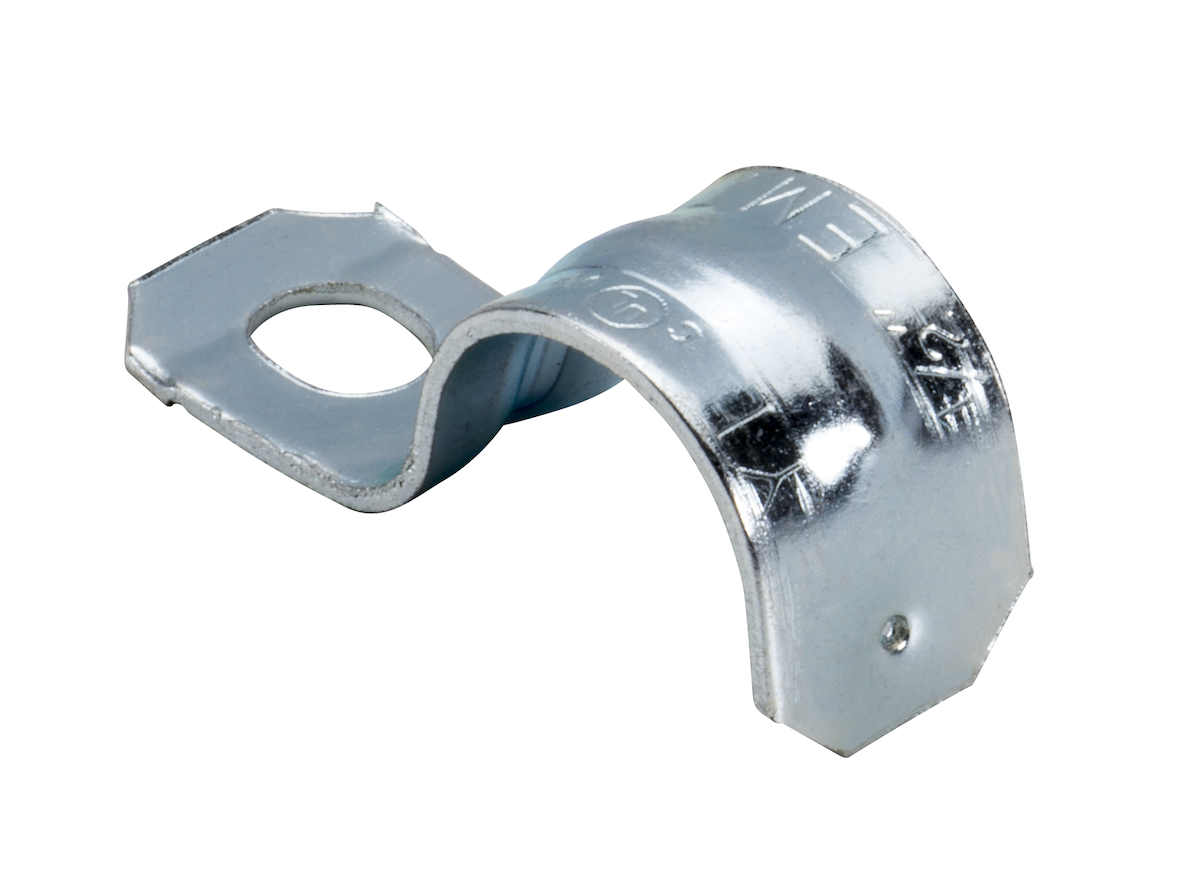

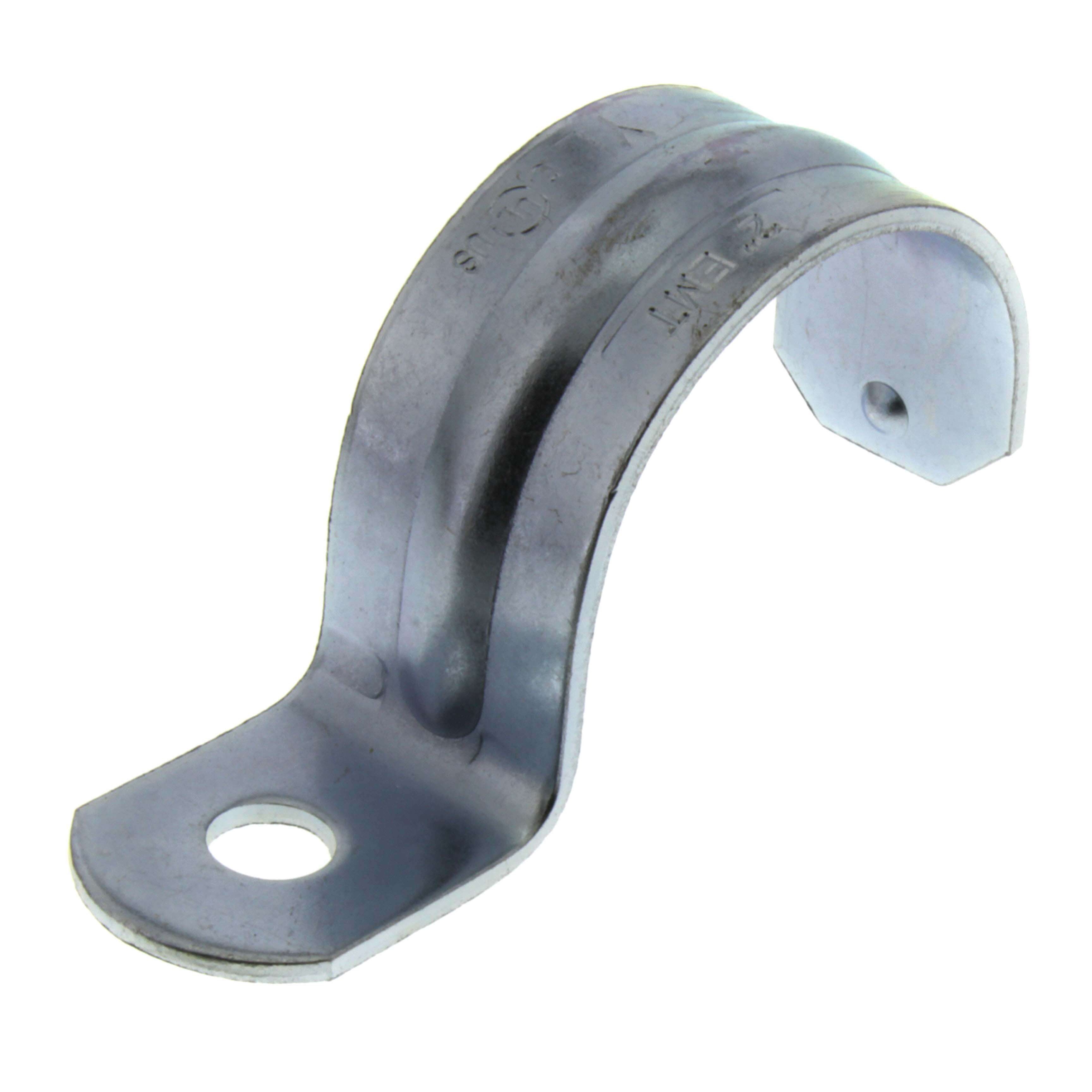

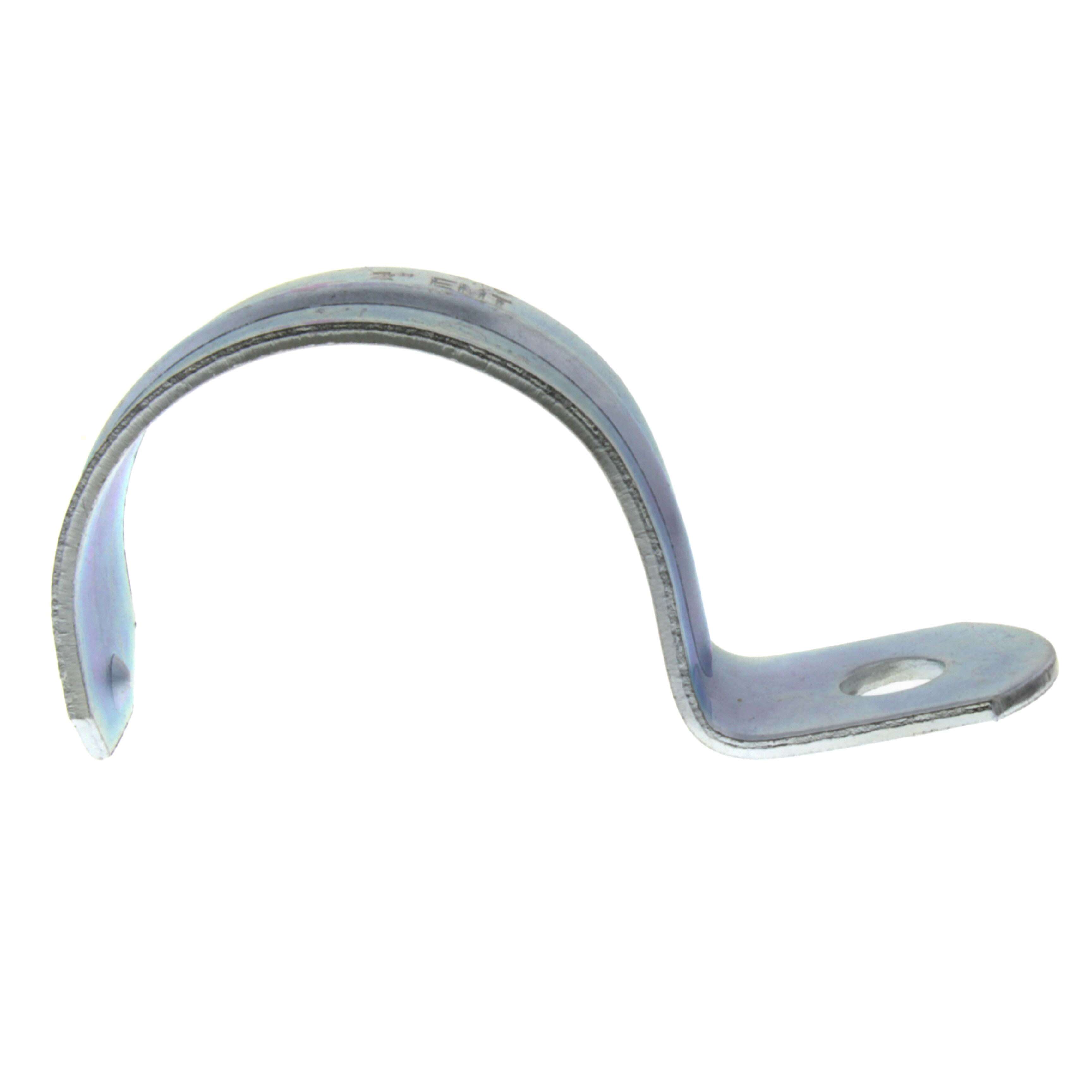

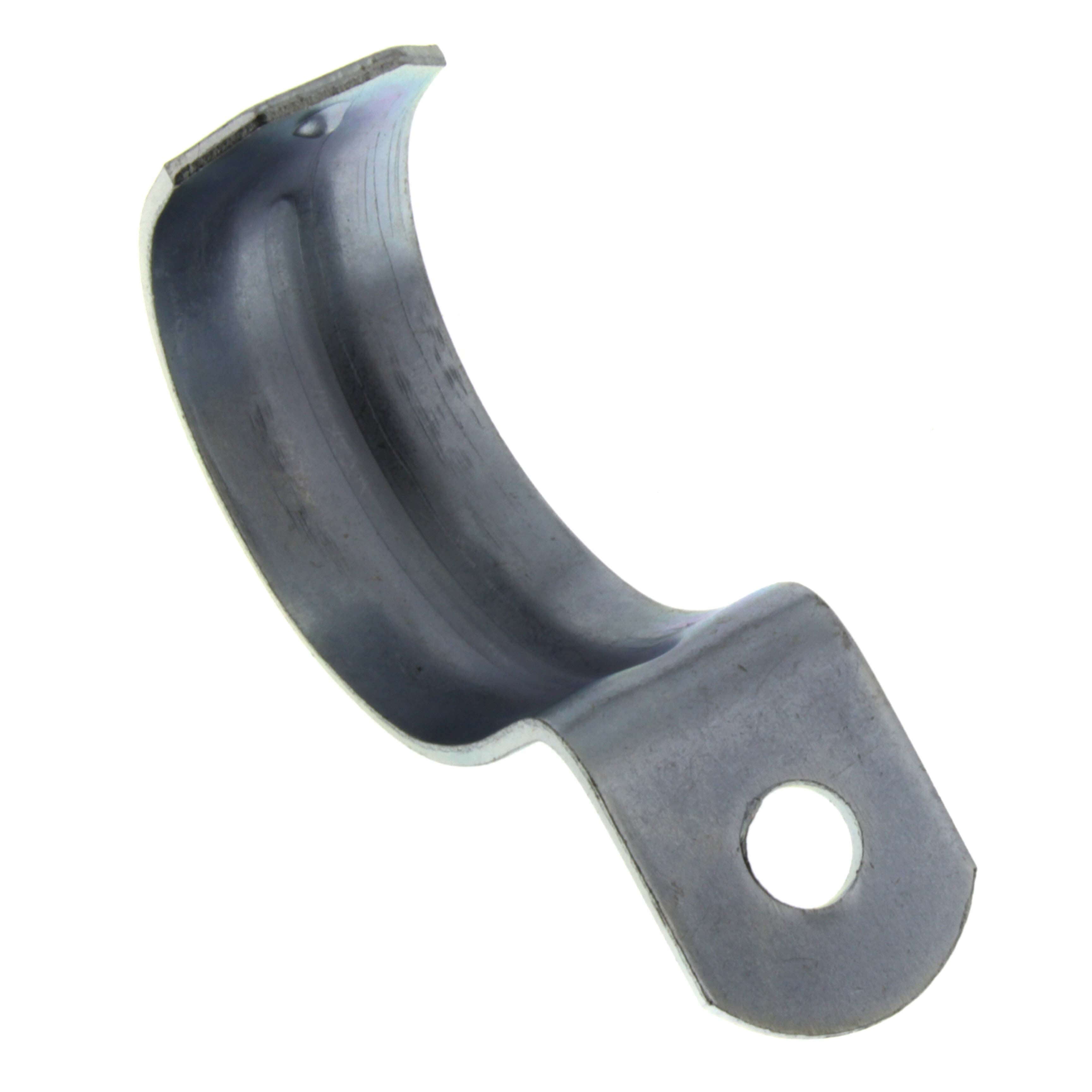

Southwire 516 EMT Conduit Strap 2 in

Product Description

The SOUTHWIRE 516 EMT Conduit Strap is a snap-on style, one-hole strap made from zinc plated steel. Designed to support EMT conduit, it is suitable for indoor or outdoor applications where greater load bearing is required. The strap features an inverted rib for added strength and is easy to install.

• UL Listed, Snap on Type
• Zinc Plated Steel
• Easy to install

Product Highlights

Snap-on type EMT strap with one hole for supporting EMT conduit in various applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 516
• Country of Origin: China

Technical Specifications

• Approval: UL
• Manufacturer Name: Southwire
• Material: Zinc Plated Steel
• Product UPC: 751338156609
• Type: 1-Hole, Snap-On
• Used On: EMT Conduit
• Width: 1.1 Inch
• Size: 2 in
• Number of Holes: 1
• Application: For use to support EMT conduit where greater load bearing is required, indoor and outdoor applications
• Standard & Approvals: UL 514B, UL File No. E170258, Federal Specification No. A-A-50553, NEMA/ANSI FB-1, Federal Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Finish: Zinc Plated
• Length: 3.93 in
• Height: 1.1 in
