Southwire 47180301 18 sol 10/c cu t-stat cl2 250 ft

Product Description

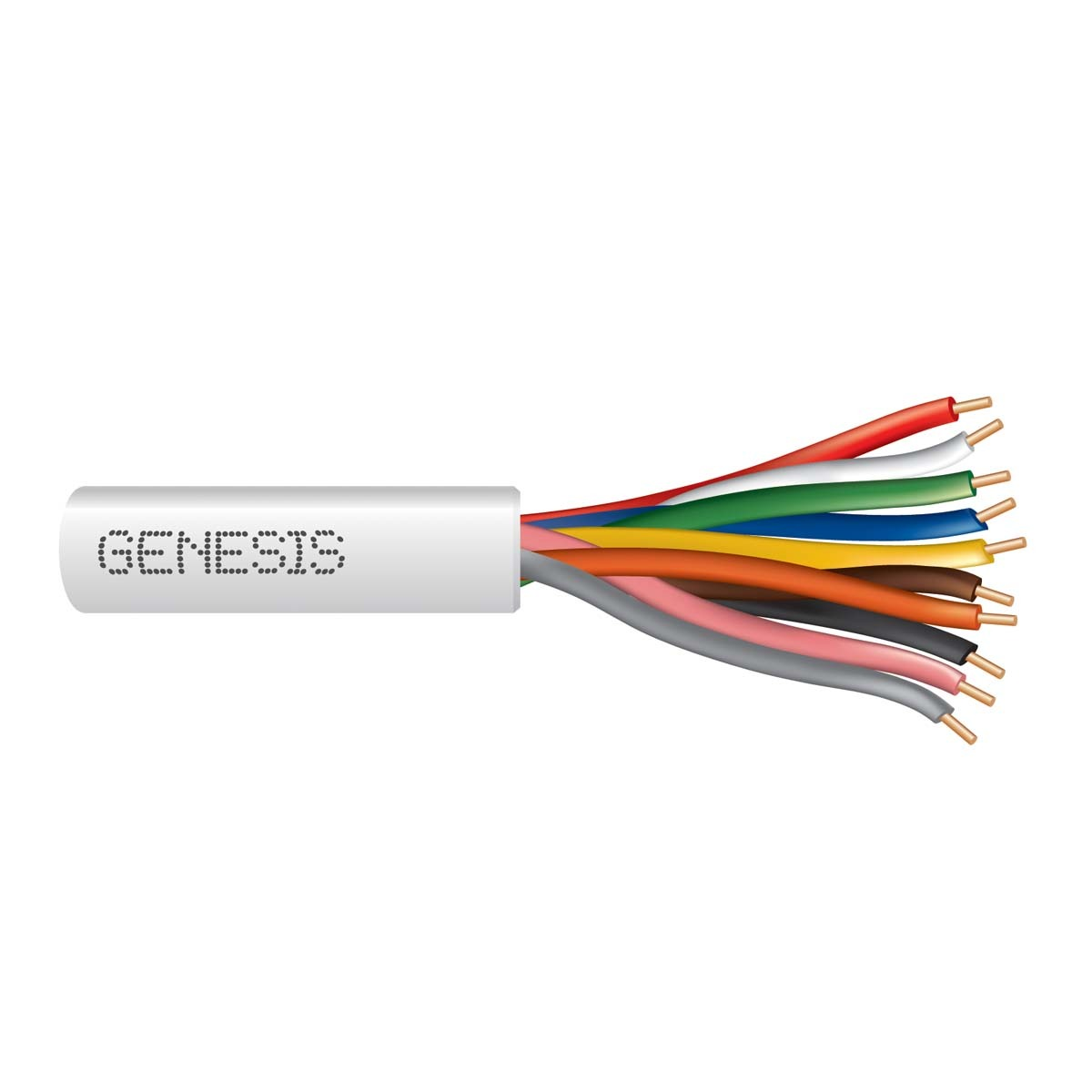

SOUTHWIRE 47180301 Genesis General Purpose Rated Thermostat Cable is designed for installation in metal raceways and solid bottom metal cable trays, suitable for use within buildings and exposed to sunlight. This 18 AWG, 10-conductor unshielded cable features bare copper conductors for excellent conductivity, polypropylene insulation, and a PVC jacket. It is rated for 150 Volts and a temperature range of -20 °C to 75 °C, and includes a rip cord for easy stripping and sequential length marking.

• Suitable for installation in a metal raceway that complies with 300.22(B).
• Bare Copper conductors for excellent conductivity and low voltage drop.
• Durable rip cord for efficient jacket stripping and removal.

Product Highlights

General purpose rated thermostat cable with bare copper conductors, polypropylene insulation, and PVC jacket, designed for various indoor installations.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 47180301

Technical Specifications

• Size: 18 AWG
• Number of Conductors: 10
• Stranding: Solid
• Shielding: Unshielded
• Nominal Total Weight (lbs/1000ft): 60
• Nominal Total Weight (kgs/km): 90
• Jacket Color: WHITE
• Rated Voltage: 150 Volts
• Rated Temperature: -20 °C to 75 °C
• Standards: UL 1685 - General Purpose Rated, UL 13 - Power-Limited Circuit Cables, Type CL2, Sunlight Resistant Rated, REACH/RoHS Compliant
• Conductor Material: Bare Copper
• Insulation Material: Polypropylene
• Jacket Material: PVC
