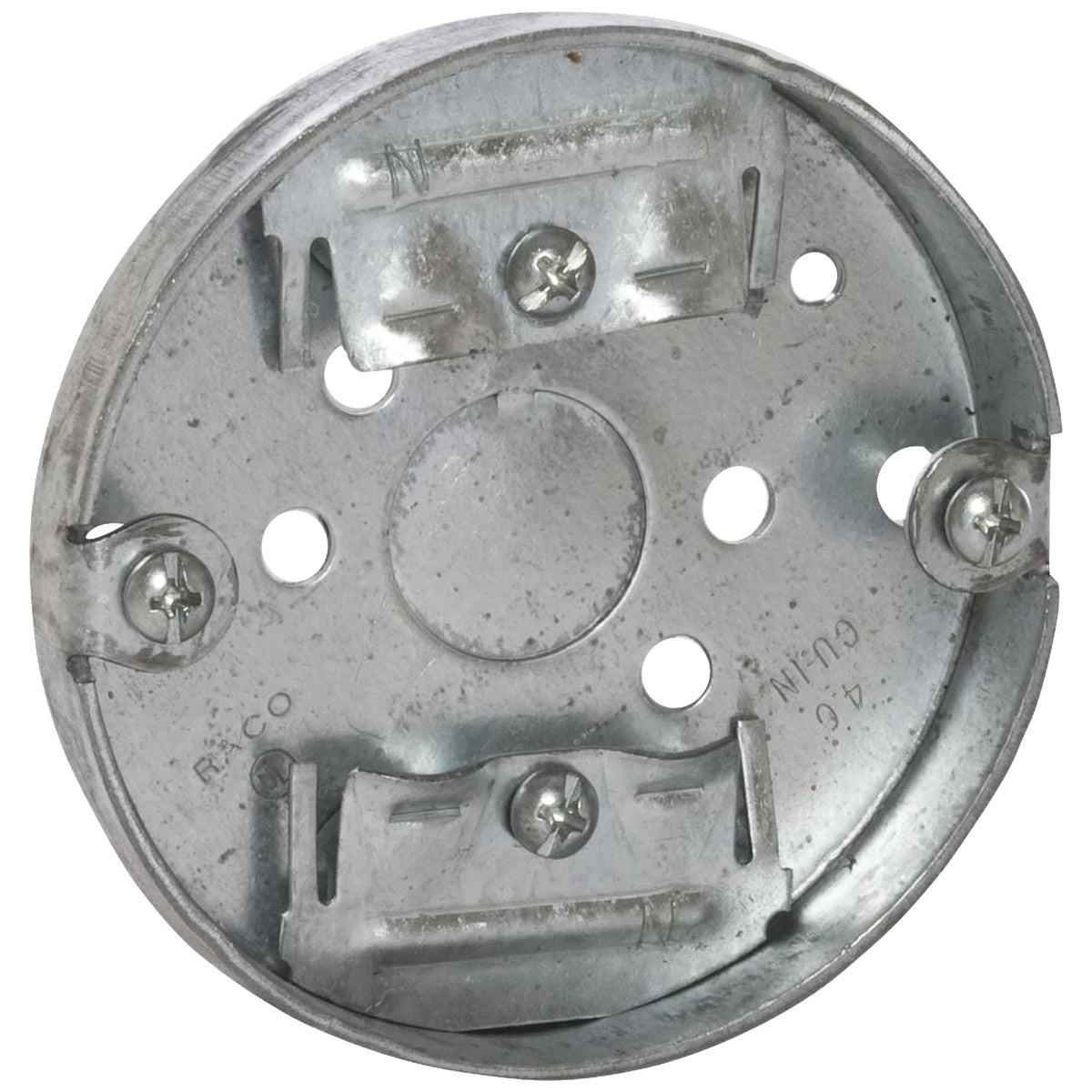

Southwire 46111-R-UPC Steel Round Pan Ceiling Box

Product Description

The SOUTHWIRE 46111-R-UPC is a round pan electrical box designed for mounting ceiling and wall lighting fixtures where a shallow-depth box is required. Drawn from steel for strong tensile strength, this 4 cubic inch box supports a 50 lb fixture rating, making it suitable for standard ceiling-mounted luminaires. It carries both UL listing and RoHS compliance. Electricians reach for this type of box in new construction and retrofit applications where ceiling depth is limited and a low-profile mounting solution is necessary.

This round pan box is used in residential and light commercial electrical installations. It is suited for ceiling and wall fixture mounting locations where a full-depth box is not practical. The shallow profile fits tight ceiling cavities and retrofit installations where junction space is minimal. The 4 cubic inch capacity accommodates standard fixture wiring connections for typical lighting circuits.

Key Features

• Drawn steel construction for high tensile strength and durability
• 50 lb fixture rating supports standard ceiling-mounted lighting
• 4 cubic inch capacity for wiring connections
• Shallow depth profile suits tight ceiling cavities and retrofit installs
• UL listed for safety compliance
• RoHS compliant materials

Compatibility

Designed as an OEM-style replacement and standard-fit round pan ceiling box for residential and light commercial lighting fixture mounting applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off power at the circuit breaker before working in the box or connecting fixture wiring. Verify that the combined weight of the fixture and any attached hardware does not exceed the 50 lb rating. Secure the box to structural framing or an approved brace bar before mounting any fixture.

Technical Specifications

• Box Capacity: 4 cubic inches
• Fixture Weight Rating: 50 lb
• Material: Steel
• Weight: 0.3 pounds
• Certifications: UL Listed, RoHS Compliant

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 46111-R-UPC
