Southwire 411100504 Machine Tool Wire 6 Awg Red 500 Ft

Product Description

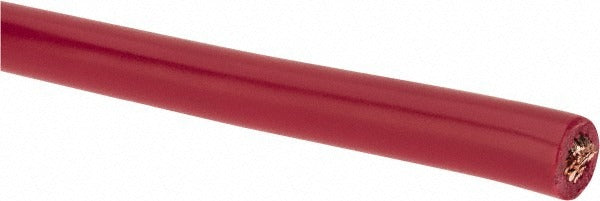

The SOUTHWIRE 411100504 is a 6 AWG stranded machine tool wire rated for use in industrial control and machine tool wiring applications. Built with 19 strands of copper conductor and insulated with polyvinylchloride (PVC), this wire measures 0.314 inches in outside diameter and comes in a 500-foot length. It carries a maximum operating temperature rating of 221 degrees F and a minimum of -22 degrees F, making it suitable for environments where thermal range, moisture exposure, and chemical resistance are primary concerns. Licensed electricians and industrial maintenance technicians are the typical installers.

This wire is designed for use inside machine tools, control panels, and industrial equipment enclosures. Its resistance to acid, moisture, and oil makes it a practical choice in manufacturing and process environments where wire may contact fluids or corrosive substances. The 19-strand construction provides flexibility during routing through tight conduit runs and wire harness assemblies. It meets CSA 22.2 No. 210 and UL 1063 standards, confirming its compliance with established requirements for machine tool wiring.

Key Features

• 6 AWG, 19-strand copper construction for flexible routing in control enclosures
• PVC insulation rated from -22 degrees F to 221 degrees F
• Resistant to acid, moisture, and oil for industrial environments
• 0.314-inch outside diameter for standard conduit and raceway sizing
• 500-foot length available in 1-foot cut increments
• Listed to CSA 22.2 No. 210 and UL 1063 and Subject 758

Compatibility

Designed as a standard machine tool wire replacement or new-install conductor for industrial control panels, machine tool enclosures, and equipment wiring applications requiring UL 1063-listed 6 AWG wire.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the equipment before pulling or terminating wire. Confirm conduit fill calculations comply with NEC Chapter 9 before routing. Do not exceed the wire's rated temperature or expose it to chemicals outside its listed resistance range.
