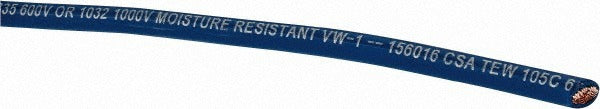

Southwire 411050506 Machine Tool Wire 10 Awg Blue 500 Ft

Product Description

The SOUTHWIRE 411050506 is a 10 AWG stranded machine tool wire rated for use in industrial control panels, automated equipment, and machine tool applications. Built with 105-strand construction and polyvinylchloride (PVC) insulation, it delivers flexible routing through tight wire ways and panel enclosures. The conductor runs 500 feet per spool in blue for circuit identification. The 0.18-inch outside diameter keeps routing manageable in dense assemblies. This wire is rated from -22 degrees F to 221 degrees F, making it suitable for demanding thermal environments found in factory automation and motor control centers. Licensed electricians and industrial control panel builders are the primary installers.

This wire is designed for internal wiring of machine tools, control panels, and industrial automation equipment. Its oil-resistant, moisture-resistant, and acid-resistant insulation handles the contamination exposure common on factory floors. The 500-foot spool length suits panel shops and MRO stocking applications where wire is cut to length for individual runs. The blue color coding supports organized, inspectable wiring layouts inside enclosures built to NFPA 79 industrial machinery standards.

Key Features

• 10 AWG, 105-strand construction for flexibility in tight routing paths
• PVC insulation rated -22 degrees F to 221 degrees F operating range
• Oil-resistant, moisture-resistant, and acid-resistant insulation jacket
• 0.18-inch outside diameter for clean fit through wire ways and grommets
• 500-foot spool length for panel shop stocking and cut-to-length use
• Meets UL 1063, UL 758, UL 83, UL 1426, NFPA 70, NFPA 79, CSA 22.2 No. 127/210, ASTM B174, and RoHS 2002/95/EC

Compatibility

Designed as an OEM-style and replacement conductor for internal wiring in industrial machine tools, control panels, and automated equipment assemblies requiring flexible, insulated copper wire rated to UL 1063 and NFPA 79 standards.

Installation Notes

Installation should be performed by a licensed electrician or qualified control panel builder in accordance with NFPA 70 (NEC) and NFPA 79 where applicable. De-energize and lock out the equipment before routing or terminating any conductors. Use appropriate wire ferrules or terminal lugs rated for stranded 10 AWG conductors when terminating in panel terminals. Avoid sharp bends or abrasion points that could compromise the PVC insulation jacket over time.
