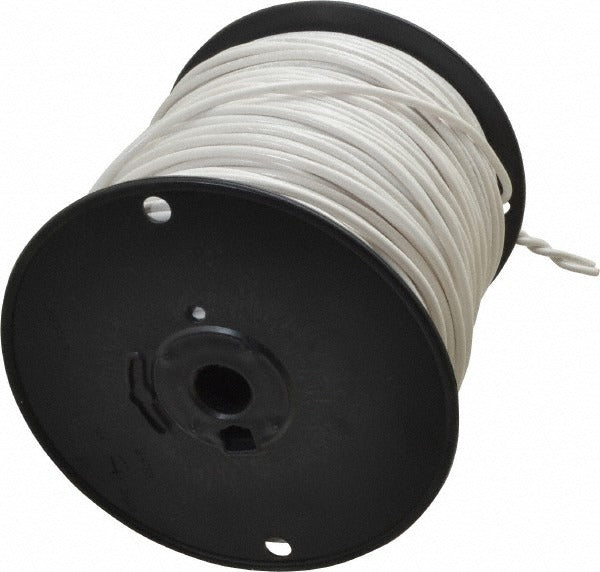

Southwire 411040501 Machine Tool Wire 12 Awg White 500 Ft

Product Description

The SOUTHWIRE 411040501 is a 12 AWG stranded machine tool wire rated for use in industrial control panels, automated equipment, and machine tool wiring applications. The conductor is built with 65 strands for improved flexibility, making it well-suited for routed runs inside enclosures and along moving or vibrating assemblies. PVC insulation provides resistance to acids, moisture, and oils common in machine shop environments. The wire is rated for a maximum operating temperature of 221 degrees F and a minimum of -22 degrees F. Each spool contains 500 feet of white wire with an outside diameter of 0.155 inches.

This wire is intended for use inside or in connection with industrial machine tools, control panels, and automated manufacturing equipment. White jacket color supports wire identification in multi-conductor installations. It meets multiple UL and CSA standards, making it appropriate for both domestic and Canadian installations. Electricians and industrial maintenance technicians working on NEC Article 670 machine tool installations or NFPA 79-governed industrial machinery will find this wire compliant with common code requirements.

Key Features

• 12 AWG stranded construction with 65 strands for increased flexibility
• PVC insulation rated acid-resistant, moisture-resistant, and oil-resistant
• Temperature range: -22 degrees F minimum to 221 degrees F maximum
• Outside diameter of 0.155 inches for conduit and raceway planning
• White jacket for circuit identification in panel wiring
• Compliant with UL 1063, UL 83, UL 758, UL 1426, NFPA 70, NFPA 79, CSA 22.2 No. 127/210, ASTM B174, and RoHS 2002/95/EC

Compatibility

Designed for use in machine tool wiring, industrial control panels, and automated equipment where UL 1063 or NFPA 79-rated flexible wire is required.

Installation Notes

Installation should be performed by a licensed electrician familiar with NEC Article 670 and NFPA 79 requirements for industrial machinery. De-energize all circuits and follow lockout/tagout procedures before routing or terminating wire inside control panels or machine enclosures. Verify conduit fill calculations using the stated 0.155-inch outside diameter. Avoid contact with solvents or chemicals that fall outside the rated resistance properties of the PVC insulation.
