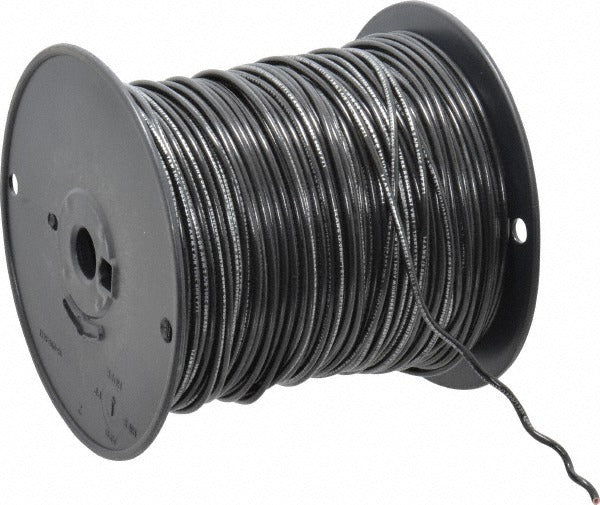

Southwire 411030508 Machine Tool Wire 14 Awg Black 500 Ft

Product Description

The SOUTHWIRE 411030508 is a 14 AWG stranded machine tool wire designed for internal wiring of machine tools, control panels, and industrial equipment. Built with a polyvinylchloride (PVC) insulation jacket measuring 0.136 inches in outside diameter, this wire features 41 strands for flexibility in tight routing applications. It is rated for a maximum operating temperature of 221 degrees F and a minimum of -22 degrees F, making it suitable for demanding industrial environments. Licensed electricians and industrial maintenance technicians are the primary installers of this wire type.

This wire is used in machine tool wiring, control enclosures, and automation panel builds where flexible, oil-resistant, and moisture-resistant conductors are required. The 500-foot spool length is well suited to panel shop environments and field installations with significant wire runs. Its PVC insulation provides resistance to acids, moisture, and oils commonly encountered in manufacturing and industrial settings. It is appropriate for both new construction and retrofit wiring projects in commercial and industrial facilities.

Key Features

• 14 AWG with 41 strands for flexibility in routed and bundled installations
• PVC insulation rated for temperatures from -22 degrees F to 221 degrees F
• Acid-resistant, moisture-resistant, and oil-resistant insulation
• 0.136-inch outside diameter for compact routing in conduit or cable trays
• 500-foot spool length reduces splicing in long wire runs
• Meets multiple standards including UL 1063, UL 83, NFPA 79, and RoHS 2002/95/EC

Compatibility

Designed for internal wiring of machine tools and industrial control panels where UL 1063 and NFPA 79 compliant 14 AWG stranded wire is specified.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (NEC) and NFPA 79 for industrial machinery wiring. De-energize and lock out all circuits before pulling or terminating wire. Use appropriate ferrules or terminals rated for stranded conductors when landing in terminal blocks. Verify conduit fill calculations comply with applicable code before installation.
