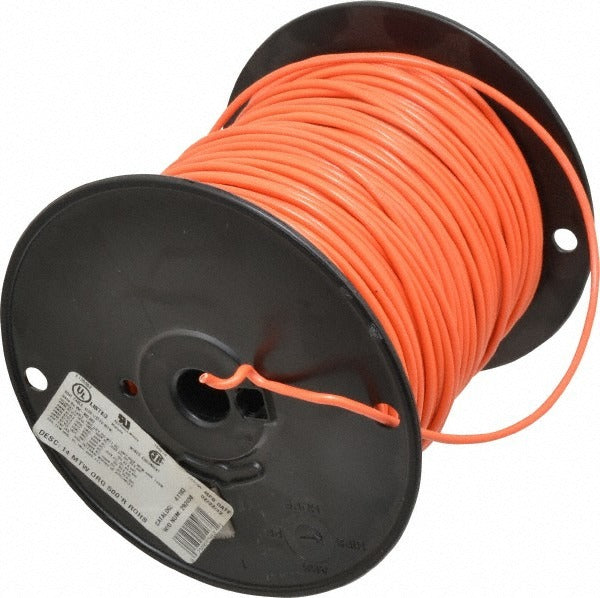

Southwire 411030503 Machine Tool Wire 14 Awg Orange 500 Ft

Product Description

The SOUTHWIRE 411030503 is a 14 AWG stranded machine tool wire rated for use in industrial control panels, machine tools, and automated equipment wiring. The conductor uses 41 strands of fine wire for flexibility, and the PVC insulation measures 0.136 inches in outside diameter. This wire is rated for a maximum operating temperature of 221 degrees F and a minimum of -22 degrees F, making it suitable for demanding thermal environments. It comes on a 500-foot spool in orange, a color commonly used to identify specific circuit types in panel wiring. Licensed electricians and industrial maintenance technicians are the primary installers.

This wire is intended for internal wiring of machine tools, control panels, and industrial automation equipment. The orange color aids in circuit identification and organization within enclosures. Its resistance to acids, moisture, and oil makes it appropriate for environments where exposure to cutting fluids, coolants, or industrial chemicals is a factor. The 500-foot spool length supports larger panel builds and reduces mid-run splicing. It is well suited for both new equipment builds and retrofit or repair work on existing industrial machinery.

Key Features

• 14 AWG with 41-strand construction for flexibility in tight panel routing
• PVC insulation with 0.136 inch outside diameter
• Rated -22 degrees F to 221 degrees F operating temperature range
• Resistant to acids, moisture, and oil
• Orange color for circuit identification in control panels
• Meets UL 1063, UL 83, UL 758, UL 1426, NFPA 70, NFPA 79, CSA 22.2 No. 127/210, ASTM B174, and RoHS 2002/95/EC standards

Compatibility

Designed for use as internal wiring in machine tools and industrial control panels where UL 1063 or NFPA 79 compliant conductors are required.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 and NFPA 79 requirements for machine tool and industrial control panel wiring. De-energize all circuits and follow proper lockout/tagout procedures before routing or terminating wire. Use appropriately rated terminals, connectors, and conduit fill calculations per applicable code. Do not exceed the temperature or bend radius limits specified for this wire type.
