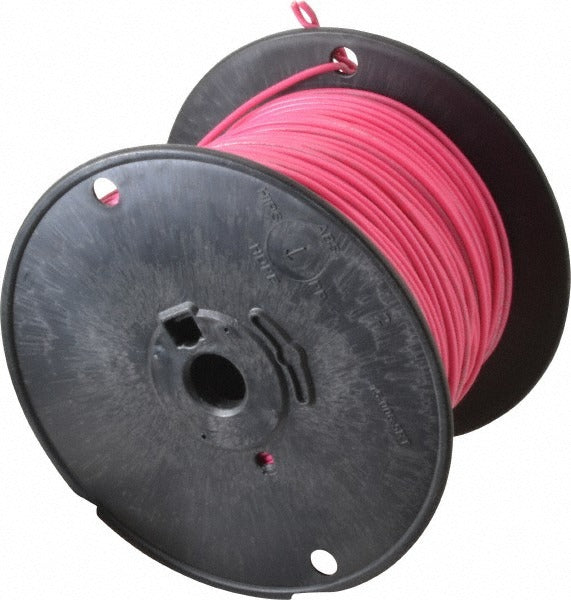

Southwire 411010511 Machine Tool Wire 18 Awg Pink 500 Ft

Product Description

The SOUTHWIRE 411010511 is an 18 AWG stranded machine tool wire designed for internal wiring of machine tools, control panels, and industrial equipment. Built with a polyvinylchloride (PVC) insulation jacket, this wire handles operating temperatures from -4 degrees F up to 221 degrees F. The conductor uses 16 strands for flexibility during routing through tight wire runs and conduit paths. The outside diameter measures 0.108 inches. This wire is a standard choice for electricians and industrial maintenance technicians wiring control enclosures and automation panels where oil, moisture, and acid exposure are expected.

This wire is suited for machine tool and industrial control wiring applications in both commercial and light industrial environments. The pink jacket color supports color-coded wiring schemes, making tracing and troubleshooting circuits faster in dense panel builds. At 500 feet per spool, it covers large panel projects or multiple smaller jobs without resupply. It meets CSA 22.2 No. 210 and is listed under UL 1063 and UL Subject 758, making it appropriate for applications requiring listed wire.

Key Features

• 18 AWG, 16-strand conductor for flexible routing in machine tool and control panel wiring
• PVC insulation rated to 221 degrees F maximum operating temperature
• Resistant to acid, moisture, and oil — suited for industrial machine environments
• 0.108-inch outside diameter for compact routing through panel knockouts and conduit
• Pink jacket supports color-coded wiring in multi-circuit control panels
• Listed to UL 1063 and UL Subject 758; meets CSA 22.2 No. 210

Compatibility

Designed as a standard 18 AWG machine tool wire suitable for internal wiring of industrial control panels, machine tools, and automation equipment where UL 1063 or CSA 22.2 No. 210 listed wire is required.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize the panel or machine completely before pulling or terminating wire. Use appropriate wire strippers rated for stranded wire to avoid nicking conductors. Do not exceed the wire's rated temperature or bend radius during installation in tight enclosures.
