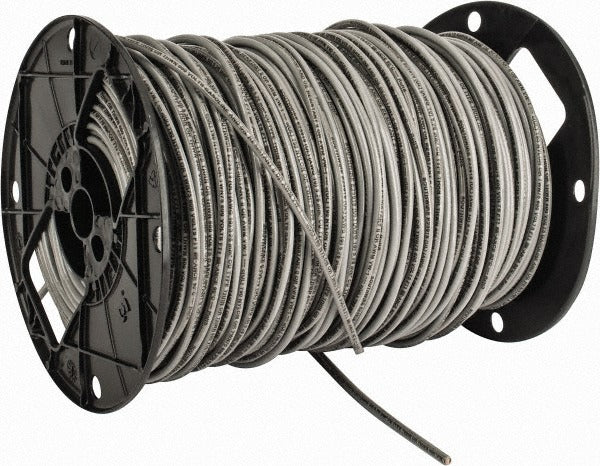

Southwire 22982301 Thhn Thwn 10 Awg 30 Amp 500 Ft Solid Wire

Product Description

The SOUTHWIRE 22982301 is a solid-core, single-conductor THHN/THWN building wire rated at 10 AWG and 30 amps, supplied in a 500-foot length. Constructed with a copper conductor, thermoplastic insulation, and a gray nylon jacket, this wire is built for use in conduit runs in commercial and residential electrical installations. It carries a 600-volt rating and a maximum operating temperature of 194 degrees F. The dual THHN/THWN listing means it is rated for both dry and wet locations, making it suitable for a wide range of branch circuit and feeder applications. Licensed electricians are the primary installers of this product.

This wire is used in branch circuit wiring, feeder runs, and general-purpose electrical construction where code-compliant conductors are required. The 10 AWG solid copper construction is common in residential branch circuits and light commercial work. The gray jacket color aids in conductor identification during installation. The 500-foot spool length suits larger runs or multiple circuit pulls from a single reel. It is appropriate for use in conduit systems including EMT, rigid metal conduit, and PVC conduit per NEC requirements.

Key Features

• Dual-rated THHN/THWN for use in both dry and wet locations
• 10 AWG solid copper conductor rated at 30 amps
• 600-volt insulation rating for standard branch circuit and feeder use
• Maximum operating temperature of 194 degrees F
• Gray nylon jacket resists abrasion, heat, moisture, oil, and gasoline exposure
• Meets UL 83, UL 1063 (MTW), CSA, RoHS, and Federal Specification A-A-59544 standards

Compatibility

Designed as a standard THHN/THWN single-conductor building wire for use in conduit systems in residential and commercial electrical installations where 10 AWG solid copper conductors are specified per NEC guidelines.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and verify lockout/tagout procedures are in place before pulling or terminating wire. Solid conductors at this gauge require proper connector and lug sizing rated for solid copper. Do not exceed the wire's rated ampacity, voltage, or temperature limits as listed on the jacket markings.
