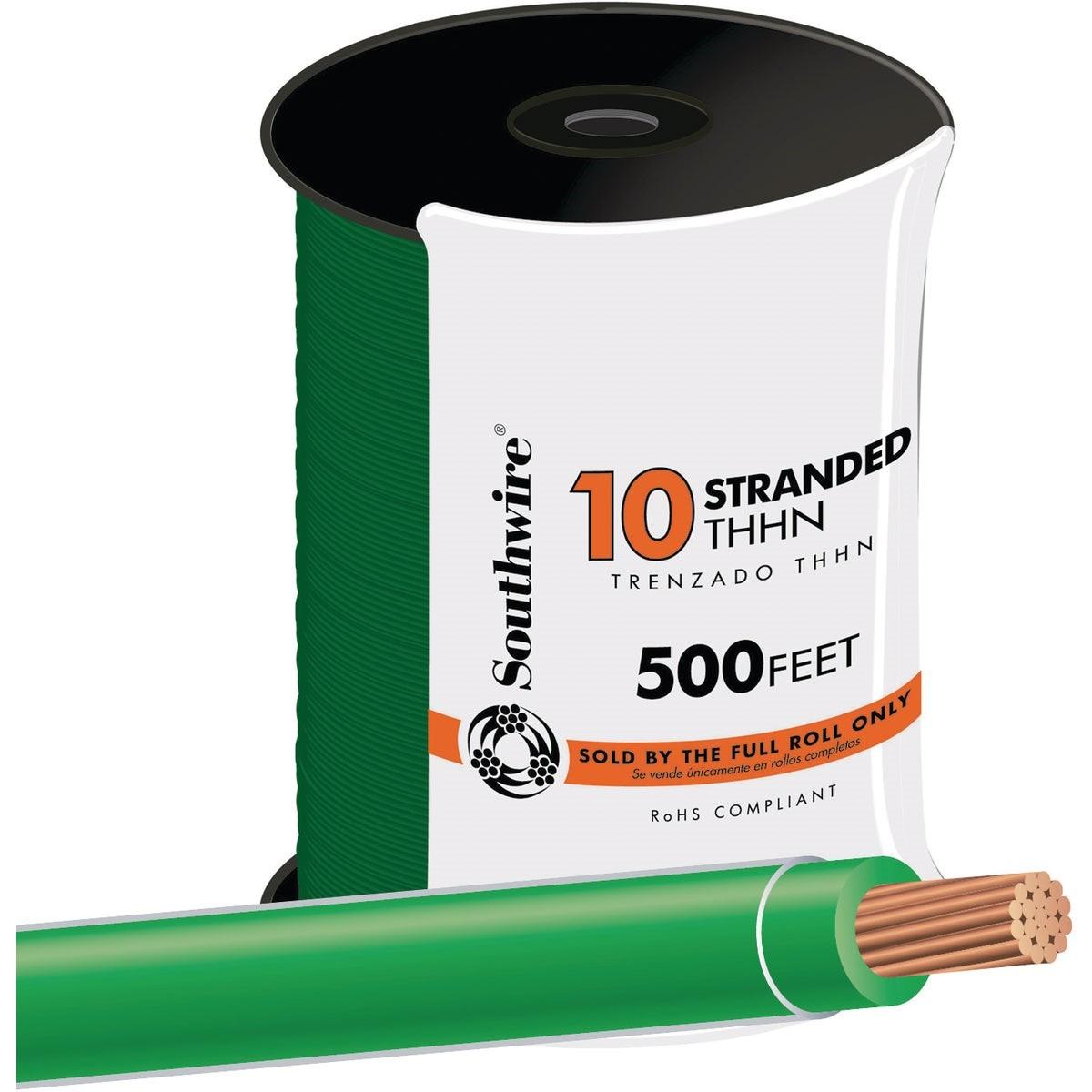

Southwire 22977357 Thhn Wire 10 Awg Stranded Green 500 Ft

Product Description

The SOUTHWIRE 22977357 is a 500-foot roll of 10 AWG stranded green THHN building wire rated for 600 volts and 90 degrees C. The conductor is stranded copper insulated with flame-retardant PVC and finished with a nylon jacket. This combination gives the wire flexibility for pulling through conduit while providing resistance to oil, gasoline, chemicals, and abrasion. Licensed electricians install this wire in commercial and residential construction for power distribution, lighting circuits, and control wiring applications where a durable, code-compliant conductor is required.

This wire is suited for general-purpose building wiring installed inside conduit or raceways. The green jacket identifies it as an equipment grounding conductor under NEC color conventions, making it a standard choice for grounding runs in panel feeders, branch circuits, and equipment connections. Its 600-volt rating covers the full range of standard low-voltage building electrical systems.

Key Features

• 10 AWG stranded copper conductor for flexibility during installation
• 600-volt rating covers standard residential and commercial building circuits
• 90 degrees C temperature rating for use in dry and wet conduit runs
• Flame-retardant PVC insulation with nylon jacket resists oil, gasoline, chemicals, and abrasion
• Green jacket designates use as an equipment grounding conductor per NEC convention
• UL listed for use in conduit and raceways

Compatibility

Designed for use as general-purpose THHN building wire in conduit and raceway systems meeting NEC requirements for 600-volt, 90 degrees C rated conductors.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before making any connections. Pull wire through conduit or raceways only — this wire is not rated for direct burial or open-air runs without a raceway. Avoid kinking the conductor during pulling to maintain conductor integrity.

Technical Specifications

• Wire Gauge: 10 AWG
• Conductor Type: Stranded Copper
• Wire Type: THHN
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Insulation Material: Flame-Retardant PVC with Nylon Jacket
• Color: Green
• Length: 500 feet
• Unit of Measure: Roll
• Weight: 19.725 pounds
• Certifications: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 22977357
