Southwire 22975757 Thhn Wire 10 Awg Stranded Red 500 Ft

Product Description

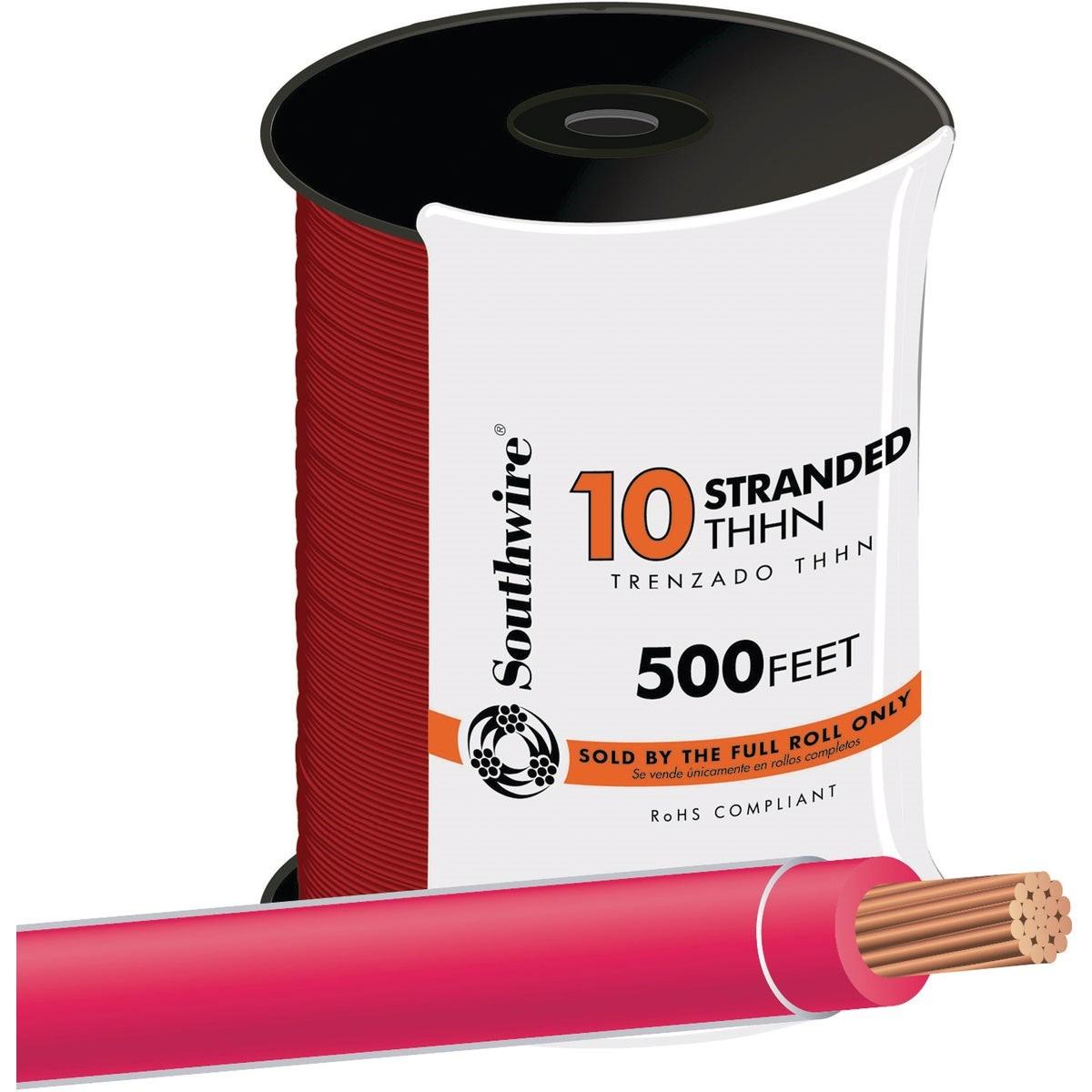

The SOUTHWIRE 22975757 is a 500-foot roll of 10 AWG stranded THHN building wire in red, rated for 600 volts and 90 degrees C. It features stranded copper conductors with flame-retardant PVC insulation and a nylon jacket, making it well suited for pulling through conduit and raceways. This wire is a general-purpose building wire used for power distribution, lighting circuits, and control wiring in residential and commercial construction. Electricians rely on this wire for branch circuit runs where a flexible, code-compliant conductor is required in conduit installations.

This wire is used in residential, commercial, and light industrial electrical installations. The red jacket color is standard for identifying phase conductors in multi-wire branch circuits and is commonly specified in panel feeders, branch circuits, and control wiring applications installed inside conduit or enclosed raceways. The 500-foot roll size suits larger projects and service upgrades where substantial wire runs are needed in a single pull.

Key Features

• 10 AWG stranded copper conductor for flexibility during installation and pulling
• 600-volt rating for standard branch circuit and feeder applications
• Rated to 90 degrees C for use in higher-temperature environments
• Flame-retardant PVC insulation with nylon jacket resists oil, gasoline, chemicals, and abrasion
• Suitable for use in conduit and enclosed raceways per NEC requirements
• UL listed for code-compliant installations

Compatibility

Designed as an OEM-style general-purpose THHN building wire suitable for use in conduit and raceways in standard 600-volt electrical systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lockout the circuit before making any terminations. Use appropriate wire-pulling lubricant when pulling through conduit to avoid jacket damage. Do not exceed the conductor ampacity ratings specified in NEC Table 310 for the installation environment and conduit fill requirements.

Technical Specifications

• Wire Gauge: 10 AWG
• Conductor Type: Stranded Copper
• Wire Type: THHN
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Insulation: Flame-retardant PVC with Nylon Jacket
• Color: Red
• Length: 500 feet
• Unit of Measure: Roll
• Weight: 19.7 pounds
• Certifications: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 22975757
