Southwire 22974057 Thhn Wire 10 Awg Stranded White 500 Ft

Product Description

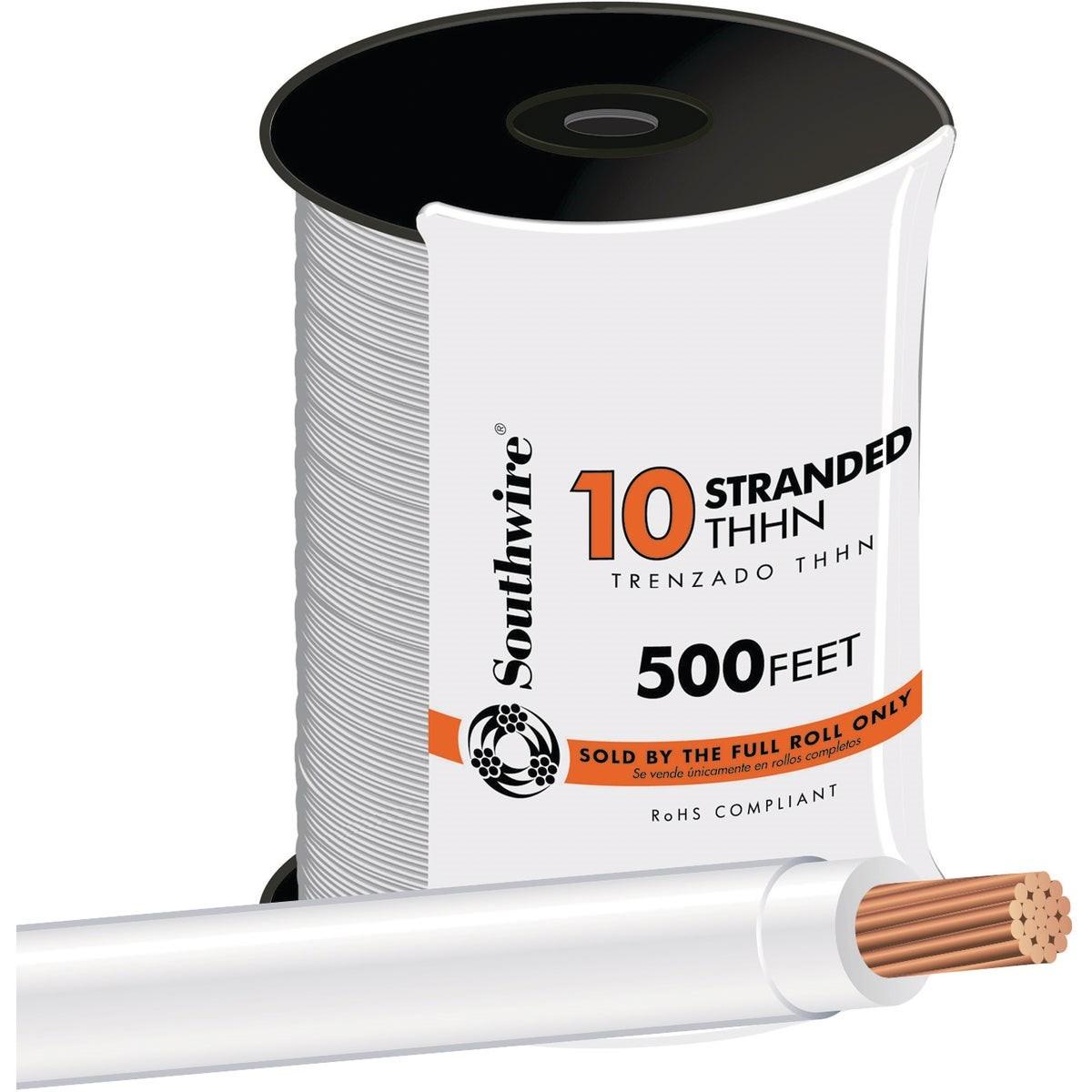

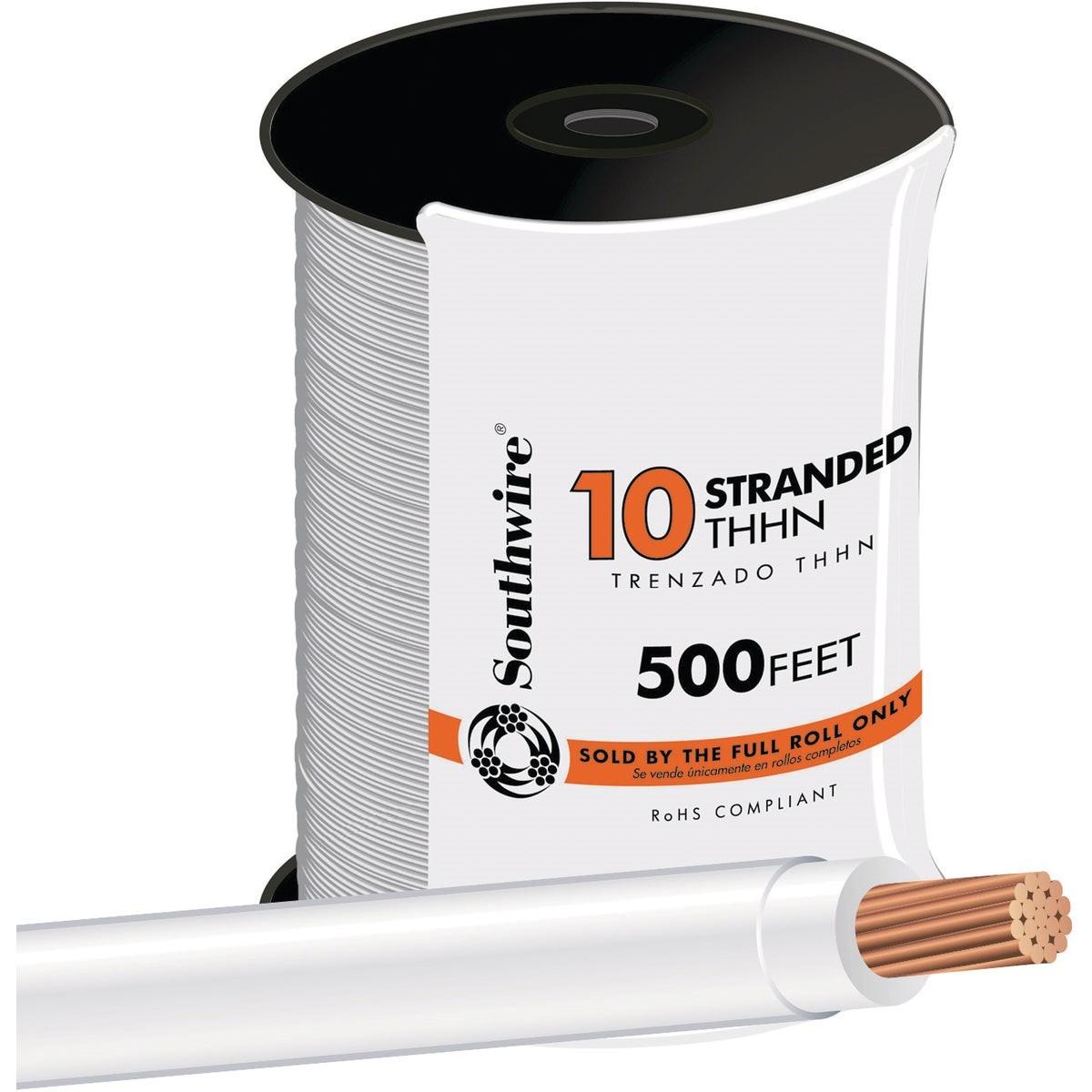

The SOUTHWIRE 22974057 is a 500-foot roll of 10 AWG stranded THHN building wire in white. Rated for 600 volts and 90 degrees C, it is built for general-purpose power, lighting, and control wiring in commercial and residential construction. The conductor is stranded copper, which provides flexibility during pull-through installations. The insulation is flame-retardant PVC with a nylon jacket that resists oil, gasoline, chemicals, and abrasion. Licensed electricians and electrical contractors rely on this wire for standard branch-circuit and feeder runs where THHN-rated conductors are specified.

This wire is suited for use in conduit and raceways in both residential and commercial applications. Typical installations include branch circuits, panel feeders, motor control wiring, and general lighting circuits. The white jacket color is commonly used to designate neutral conductors in multi-wire branch circuits, though local code requirements govern final color assignments. The 500-foot roll size is practical for mid-size jobs and reduces the number of splices needed in longer runs.

Key Features

• 10 AWG stranded copper conductor for flexibility during conduit pulls
• 600-volt rating for standard branch-circuit and feeder applications
• 90 degrees C temperature rating for high-demand environments
• Flame-retardant PVC insulation with nylon jacket for chemical and abrasion resistance
• Suitable for installation in conduit and raceways per NEC requirements
• UL listed for compliance with standard electrical code specifications

Compatibility

Designed for use in conduit and raceway systems where THHN-rated 10 AWG stranded building wire is required for power, lighting, and control wiring circuits.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and verify the absence of voltage before making any connections. Use appropriate conduit fill calculations to ensure the raceway is not overfilled. Avoid exceeding the wire's 90 degrees C or 600-volt ratings in the application.

Technical Specifications

• Wire Gauge: 10 AWG
• Conductor Type: Stranded Copper
• Wire Type: THHN
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Insulation: Flame-Retardant PVC with Nylon Jacket
• Color: White
• Length: 500 feet
• Unit of Measure: Roll
• Weight: 19.85 pounds
• Certifications: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 22974057
