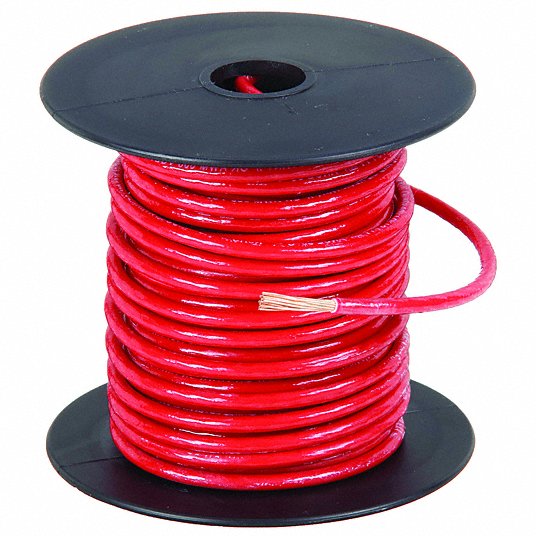

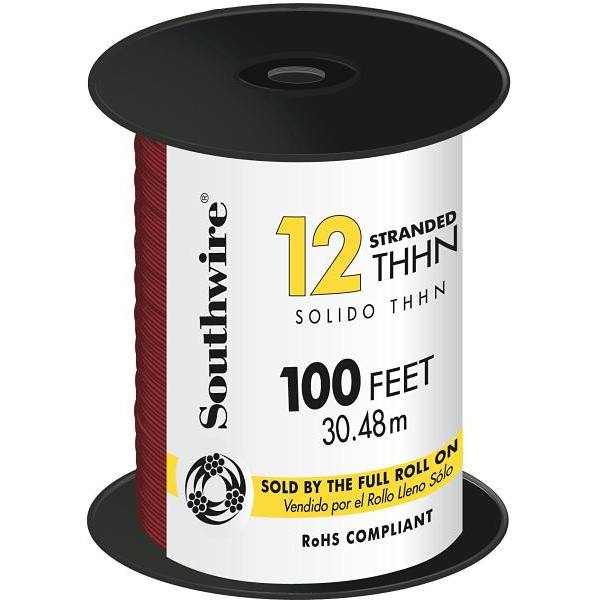

Southwire 22966684 Building Wire 12 AWG 100 FT

Product Description

The Southwire 22966684 Building Wire is designed for use in conduit in commercial and industrial environments. This wire is a copper THHN rated cable, suitable for applications where a reliable electrical connection is crucial. It operates at a voltage of six hundred volts and can be utilized in both wet and dry locations.

• Made with soft, annealed copper for enhanced flexibility.
• Rated for use in wet and dry conditions, meeting National Electrical Code standards.
• Comes in a one hundred foot spool for convenient usage.

Product Highlights

This wire is ideal for applications such as feeders to outdoor post lamps and pumps. The durable insulation ensures resistance to heat and moisture.

Product Information

Standard Information

• Conductor Material: Copper
• Packaging: Spool

Technical Specifications

• Conductor Size: 12 AWG
• Conductor Number: 1
• Diameter Over Conductor: 0.090 inches
• Insulation Thickness: 16 mils
• Voltage Rating: 600 V
• Overall Length: 100 ft
• Maximum Operating Temperature: 194 °F
• Standards: UL Listed
• Amperage: 20 amp
• Wire Type: THHN
• Made in USA: Yes
