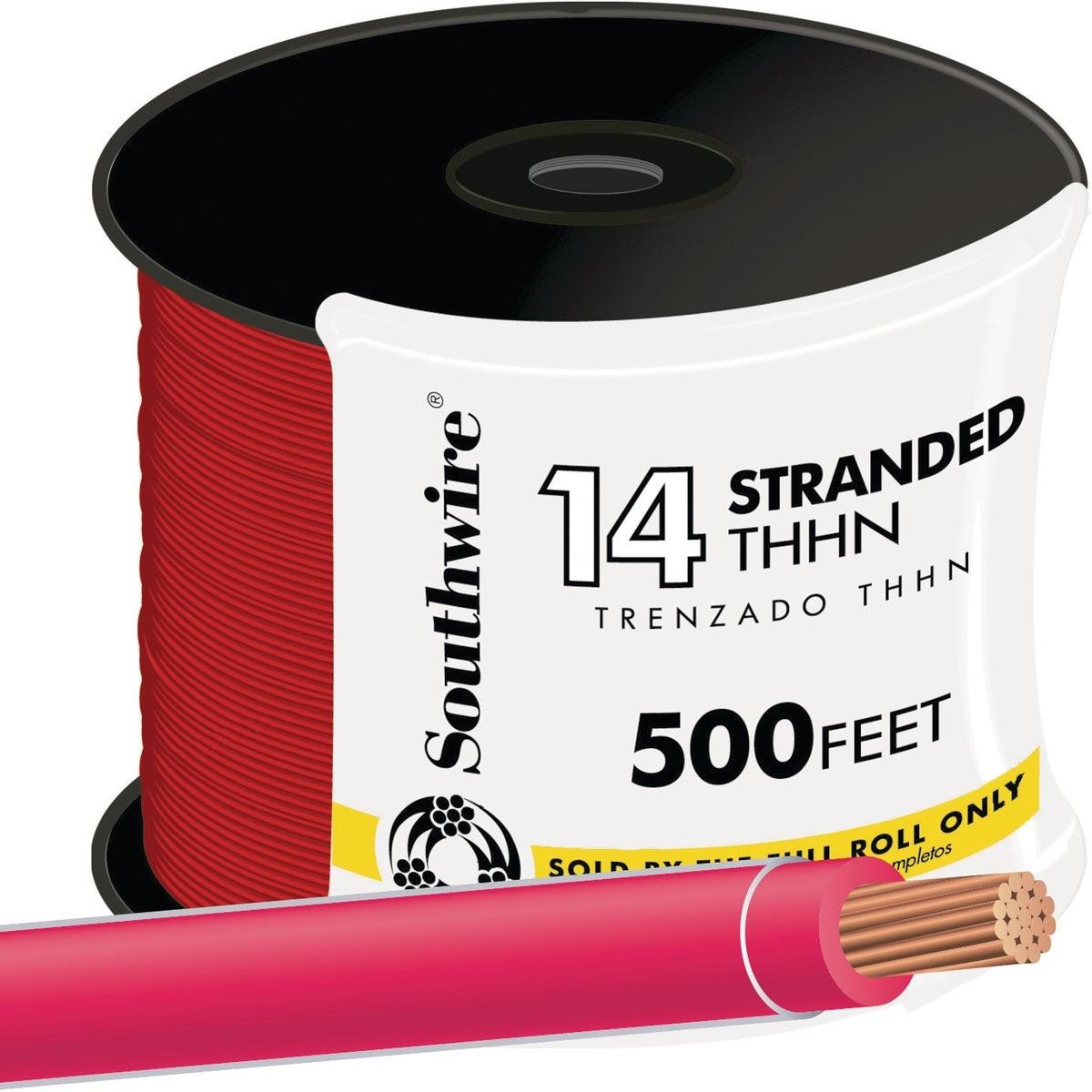

Southwire 22957558 Thhn Wire 14 Awg Stranded Red 500 Ft

Product Description

The SOUTHWIRE 22957558 is a 500-foot roll of 14 AWG stranded red THHN building wire rated for 600 volts and 90 degrees C. The stranded copper conductor is insulated with flame-retardant PVC and jacketed with nylon, giving it resistance to oil, gasoline, chemicals, and abrasion. This general-purpose wire is designed for power, lighting, and control wiring in commercial and residential construction. Electricians and electrical contractors install it in conduit and raceway systems where code-compliant, durable wiring is required.

This wire is suited for use in dry and damp locations within conduit or enclosed raceways. The 14 AWG stranded configuration makes it easy to pull through conduit runs and terminate at panels, fixtures, and control devices. It is commonly used in branch circuit wiring, lighting circuits, and general control applications in both residential and light commercial settings. The red jacket color supports standard color-coding practices during installation and future service.

Key Features

• 600-volt rating suitable for standard building wire applications
• Rated to 90 degrees C for use in higher-temperature environments
• Stranded copper conductor for flexible pulls through conduit
• Flame-retardant PVC insulation with nylon jacket for mechanical and chemical protection
• Resistant to oil, gasoline, chemicals, and abrasion
• UL listed for code-compliant installations

Compatibility

Designed for use in conduit and raceway systems in residential and light commercial electrical installations where 600-volt, 14 AWG THHN building wire is specified.

Installation Notes

This wire is installed by licensed electricians in accordance with the National Electrical Code (NEC). De-energize all circuits and confirm zero voltage at the work area before beginning any wiring. Use appropriate conduit fill calculations per NEC to confirm the raceway is not overfilled. Terminate conductors with properly rated connectors and lugs rated for stranded copper.

Technical Specifications

• Wire Gauge: 14 AWG
• Conductor Type: Stranded Copper
• Insulation Type: Flame-Retardant PVC with Nylon Jacket
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Wire Type: THHN
• Color: Red
• Length: 500 feet
• Unit of Measure: Roll
• Weight: 7.975 pounds
• UPC: 00032886892837

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 22957558
