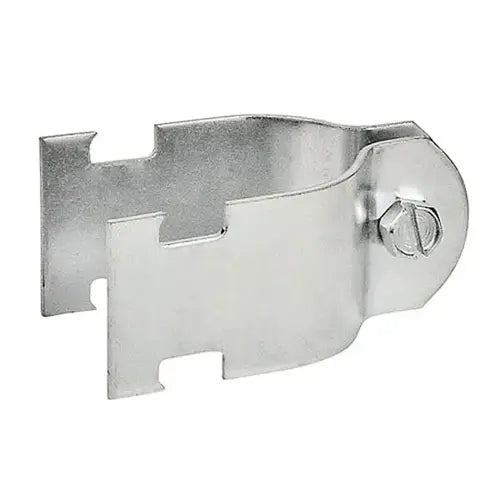

Southwire 2107 2 1/2 Strut Clamp (2-1/2 inch)

Product Description

Southwire 2107 is a 2-1/2 inch strut clamp designed to mount EMT and rigid conduit to strut channel. The two-piece steel clamp uses a screw-tight fastening action and a single 2-1/2 inch hole to secure conduit perpendicular to strut; it is suitable for damp locations and overhead or wall-mount installations. Dimensions and weight support standard conduit fittings and strut mounting.

• Two-piece steel construction with screw-tight clamping for secure conduit mounting
• Single-hole design with 2-1/2 inch hole diameter and 2-1/2 inch maximum opening for EMT and rigid conduit
• Meets UL 514B and multiple federal and military specifications; suitable for damp locations

Product Highlights

Two-piece steel strut clamp for 2-1/2 inch EMT and rigid conduit, single-hole design, UL 514B compliant.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 2107
• Country of Origin: Unknown

Technical Specifications

• Brand: Southwire
• Manufacturer Part Number: 2107
• Model: p-2107
• SKU: SOUTHWIRE-2107
• UPC: 751338410374
• Category: Commercial, Industrial, Residential Fittings
• Material: Steel
• Construction: Two-piece steel
• Finish: Steel
• Hole Diameter: 2-1/2 inch
• Maximum Opening: 2-1/2 inch
• Number of Holes: 1
• Application: Mount EMT and rigid conduit to strut channel; suitable for damp locations
• Mounting Type: Strut channel
• Weight: 0.34 lb
• Dimensions: 1.25 x 1.95 x 4.40 inches
• Standards: UL 514B; UL File Number E148716; US FED SPEC A-A-50553; NEMA/ANSI FB-1; Military W-F-406D/W-F-406E/W-F-408D/W-S-610D
