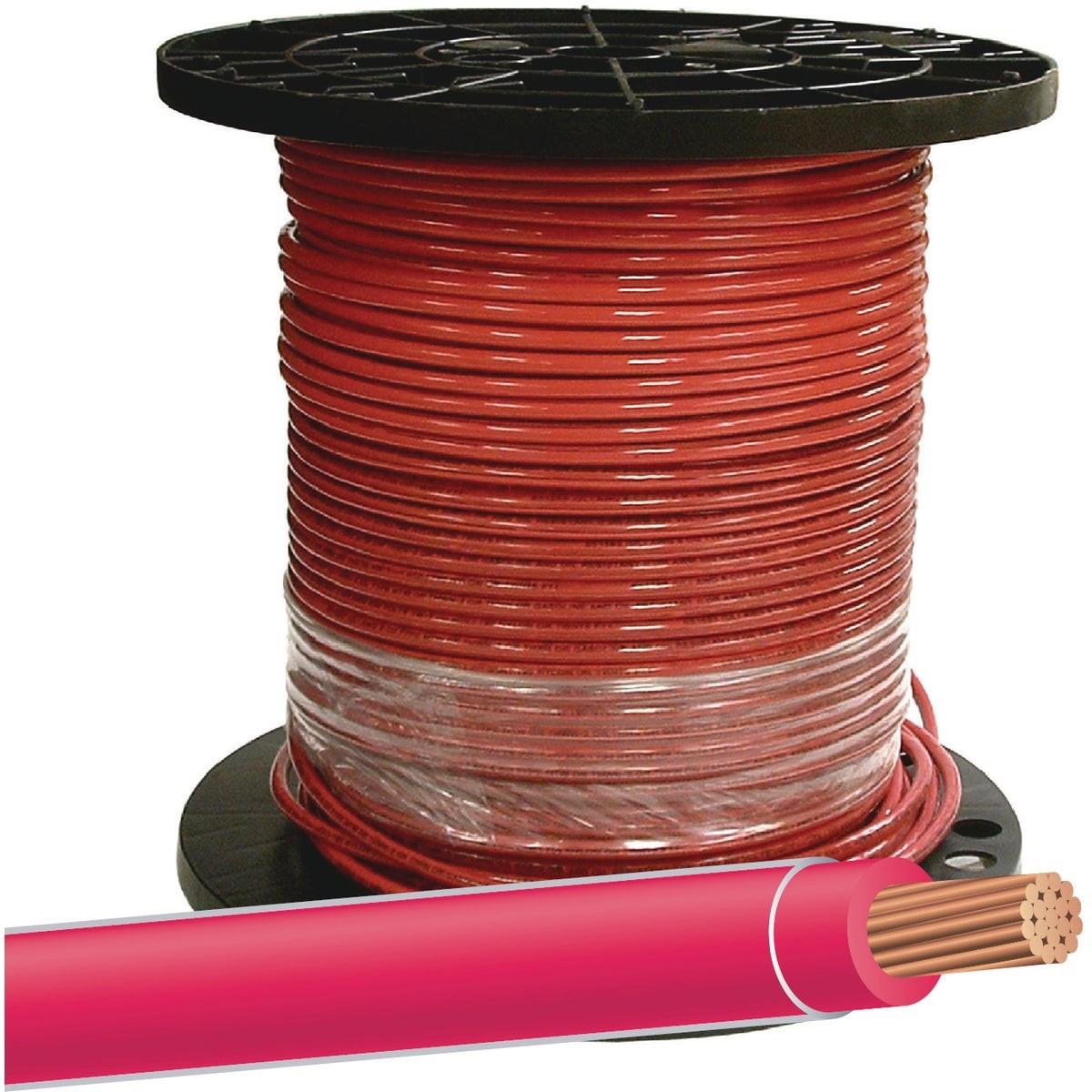

Southwire 20490912 Stranded Thhn Wire 8 Awg 500 Ft Red

Product Description

The SOUTHWIRE 20490912 is a 500-foot roll of 8 AWG stranded THHN building wire in red, rated for 600 volts and 90 degrees C. It is a general-purpose copper conductor intended for power distribution, lighting circuits, and control wiring inside commercial and residential structures. The conductor is stranded copper for flexibility, covered with flame-retardant PVC insulation and a nylon jacket that resists oil, gasoline, chemicals, and abrasion. Electricians reach for this wire when pulling conductors through conduit or raceways on new construction and retrofit projects. It carries a UL listing for use in standard building wire applications.

This wire is suited for use in dry and wet locations where THHN or THWN-rated conductors are required. Common applications include branch circuit wiring, feeder runs, motor control wiring, and general building power distribution. The 8 AWG size is frequently specified for 40- to 50-amp circuits, sub-panel feeds, and equipment connections in both residential and light commercial settings. The red jacket color aids in phase identification when multiple conductors are pulled together.

Key Features

• 8 AWG stranded copper conductor for flexibility during installation
• 600-volt rating for standard building wire applications
• 90 degrees C temperature rating
• Flame-retardant PVC insulation with nylon jacket
• Resistant to oil, gasoline, chemicals, and abrasion
• UL listed for use in conduit and raceways

Compatibility

Designed for use in conduit and raceway systems where THHN or THWN-rated 8 AWG building wire is specified per NEC requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code and applicable local codes. De-energize and lock out the circuit before making any connections. Use proper wire-pulling lubricant when pulling through conduit to avoid jacket damage. Do not exceed the conductor ampacity ratings listed in NEC Table 310.15 for the specific installation conditions.

Technical Specifications

• Wire Gauge: 8 AWG
• Conductor Type: Stranded Copper
• Wire Type: THHN
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Insulation Material: Flame-Retardant PVC with Nylon Jacket
• Color: Red
• Length: 500 feet
• Unit of Measure: Roll
• Weight: 31.8 pounds

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 20490912
