Southwire 116 imc/rigid conduit nipple 2 in

Product Description

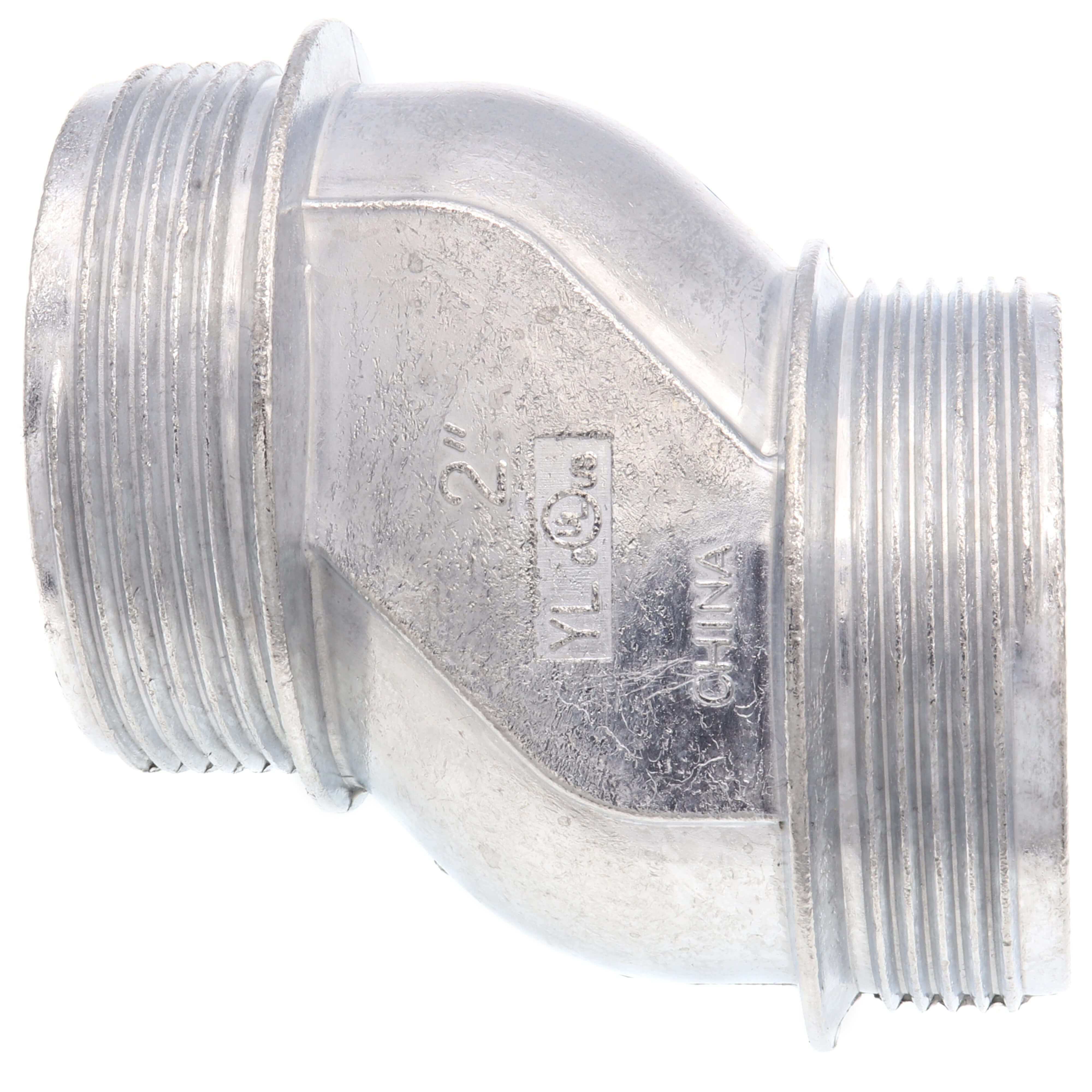

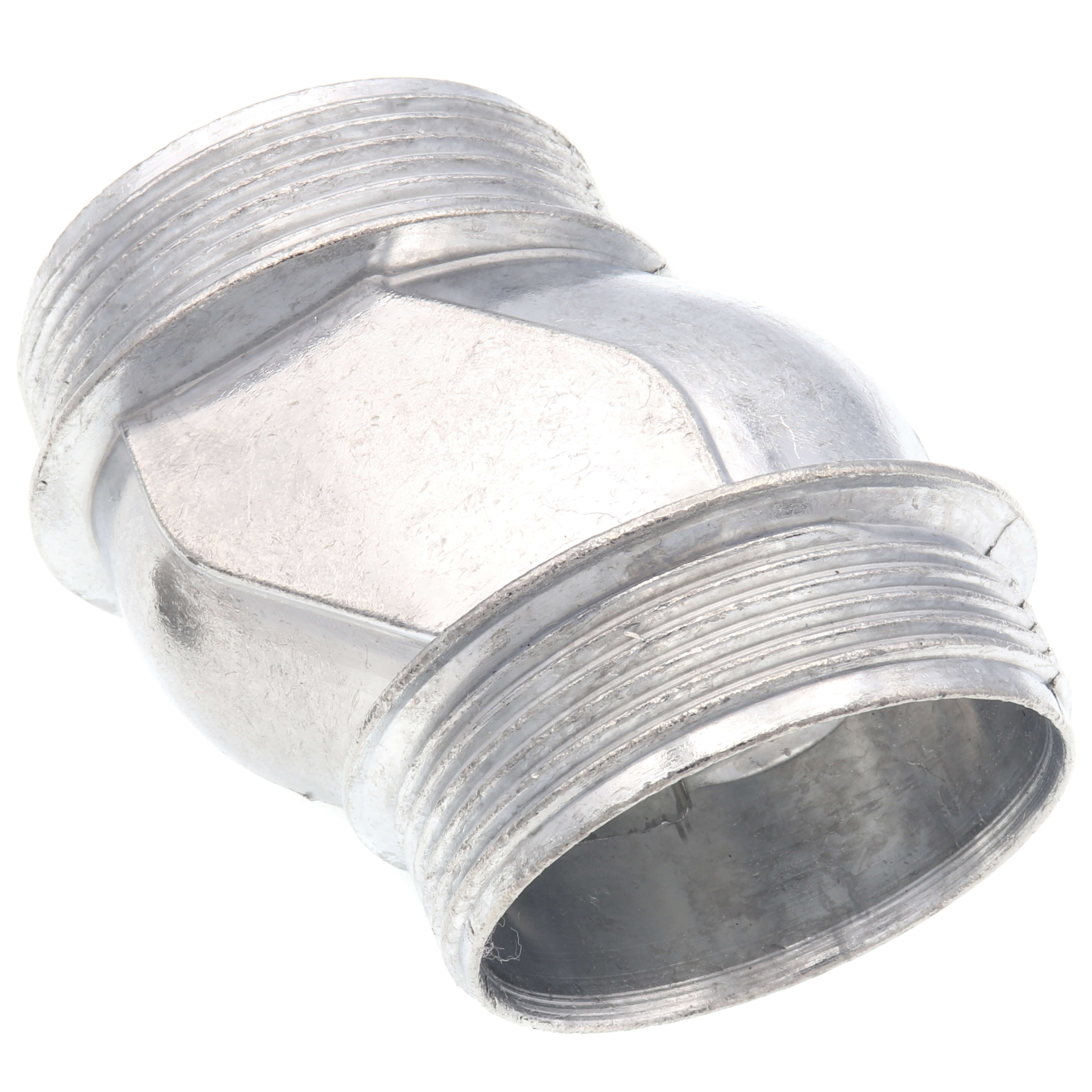

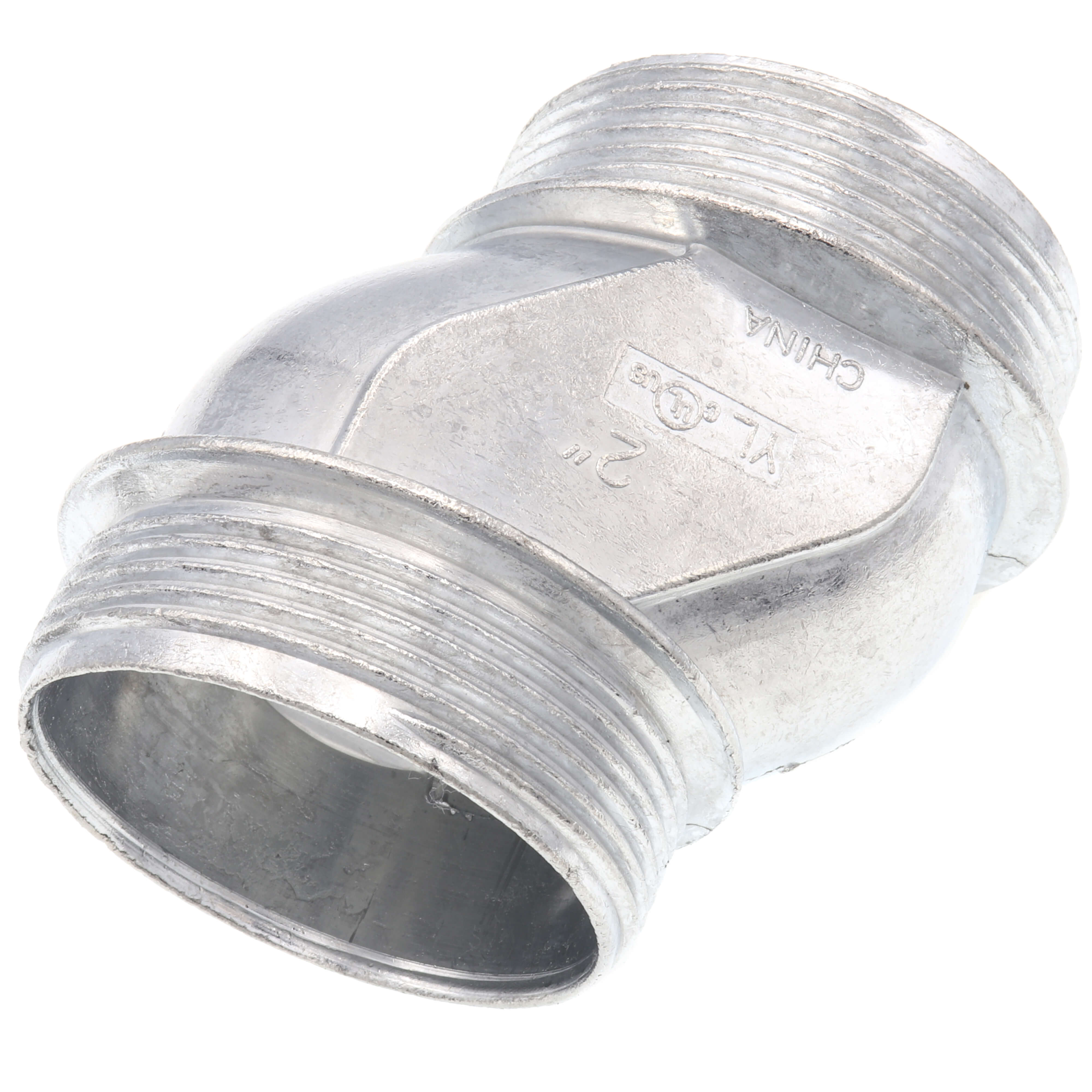

The SOUTHWIRE 116 is a 2-inch offset nipple designed for IMC/Rigid conduit. Constructed from die-cast zinc, this male threaded nipple facilitates directional changes or slight elevation adjustments when connecting EMT conduits to boxes or enclosures. It offsets the raceway axis by 3/4 inch and is suitable for indoor and outdoor applications.

• Enables easier direction change of conduit
• Use as an offset connector between two enclosures
• Offsets the axis of the raceways by 3/4 in
• Suitable for indoor and outdoor applications

Product Highlights

The SOUTHWIRE 116 offset nipple is ideal for use with rigid and IMC conduit, simplifying directional changes in conduit systems.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 116
• Country of Origin: China

Technical Specifications

• Approval: UL, CSA
• Manufacturer Name: Southwire
• Material: Die-Cast Zinc
• Product UPC: 751338106604
• Throat Type: Non-Insulated
• Type: Threaded Male
• Used On: IMC/Rigid Conduit
• Size: 2 in
• Suitable For Use With: Rigid and IMC Conduit
• Application: Indoor/Outdoor Applications
• Standard & Approvals: UL 514B, UL E148716, cULus E148716 Listed, CSA Certified, Federal Specification Number A-A-50553, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Manufacturer Part Number: 116
• Manufacturer Item Status: Active
• OD: 2.665 in
• Length: 3.145 in
