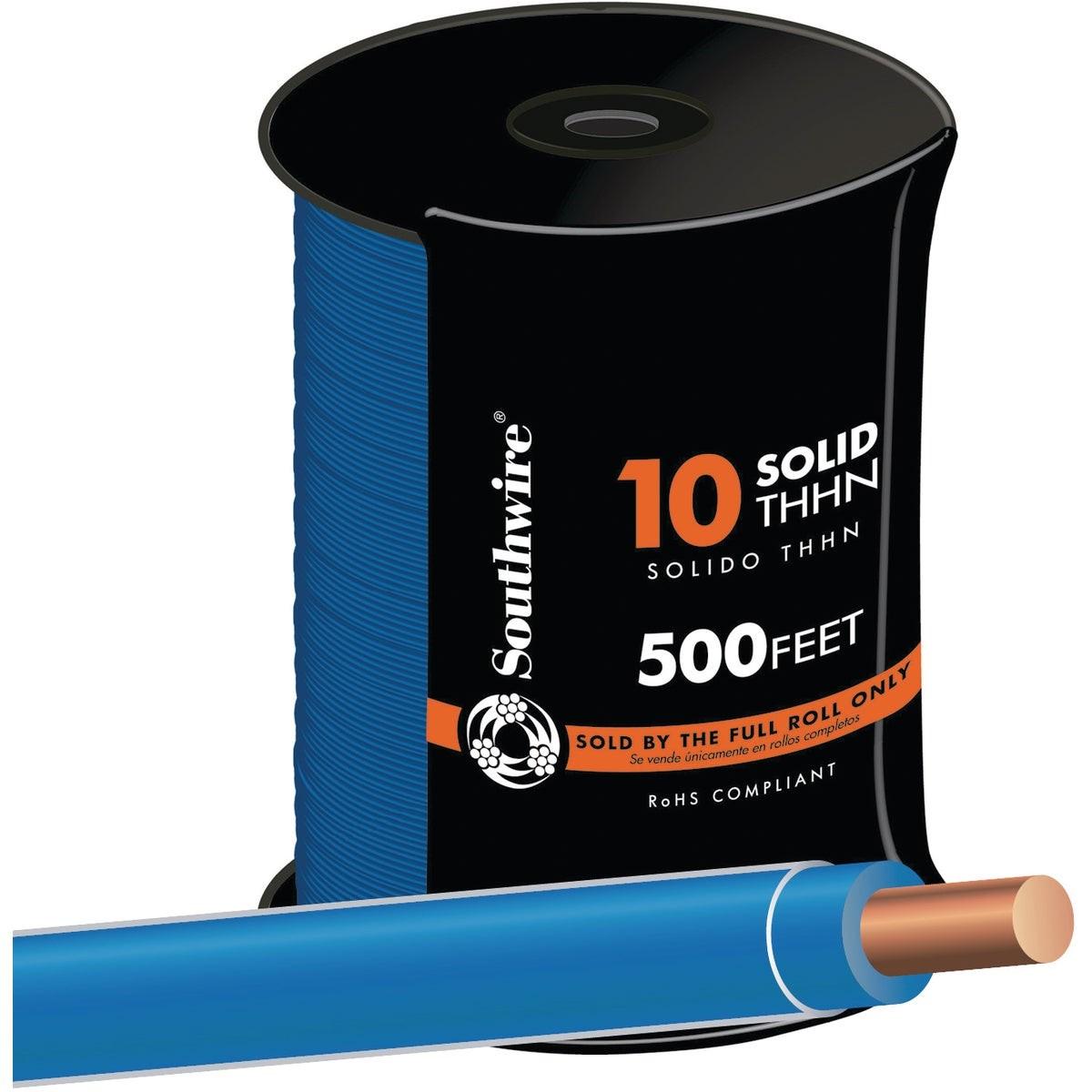

Southwire 11598057 Thhn Wire 10 Awg Solid Blue 500 Ft 600V

Product Description

The SOUTHWIRE 11598057 is a 500-foot roll of 10 AWG solid copper THHN building wire in blue insulation. Rated at 600 volts and 90 degrees C, this wire is designed for general-purpose power, lighting, and control wiring in residential and commercial electrical installations. The conductor is solid copper, insulated with flame-retardant PVC and finished with a nylon jacket that resists oil, gasoline, chemicals, and abrasion. Licensed electricians and electrical contractors install this wire as part of branch circuit and feeder runs in conduit or raceway systems.

This wire is suited for residential and light commercial applications where THHN-rated conductors are required. It is installed inside conduit or raceways as required by the National Electrical Code for branch circuits, feeder runs, control wiring, and lighting circuits. The blue jacket color supports color-coded wiring practices commonly used to identify specific circuits or voltage levels on the job site.

Key Features

• 10 AWG solid copper conductor for reliable conductivity and low resistance in branch circuit applications
• 600-volt rating suitable for standard residential and commercial building wiring
• 90 degrees C temperature rating for use in dry and wet locations per THHN/THWN standards
• Flame-retardant PVC insulation with nylon jacket for durability and chemical resistance
• Resistant to oil, gasoline, chemicals, and abrasion for use in demanding environments
• UL listed for compliance with standard electrical installation requirements

Compatibility

Designed for use in conduit and raceway systems as a general-purpose THHN-rated building wire for power, lighting, and control circuit applications in residential and commercial construction.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code and applicable local codes. De-energize and lock out the circuit before pulling or terminating wire. This wire must be installed inside conduit or an approved raceway and is not rated for direct burial or open-air exposure without proper enclosure. Use appropriate wire pulling lubricant and conduit fill calculations when routing through conduit runs.

Technical Specifications

• Gauge: 10 AWG
• Conductor Type: Solid Copper
• Wire Type: THHN
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Insulation Material: Flame-Retardant PVC with Nylon Jacket
• Color: Blue
• Length: 500 feet
• Unit of Measure: Roll
• Weight: 18.725 pounds
• Certifications: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 11598057
