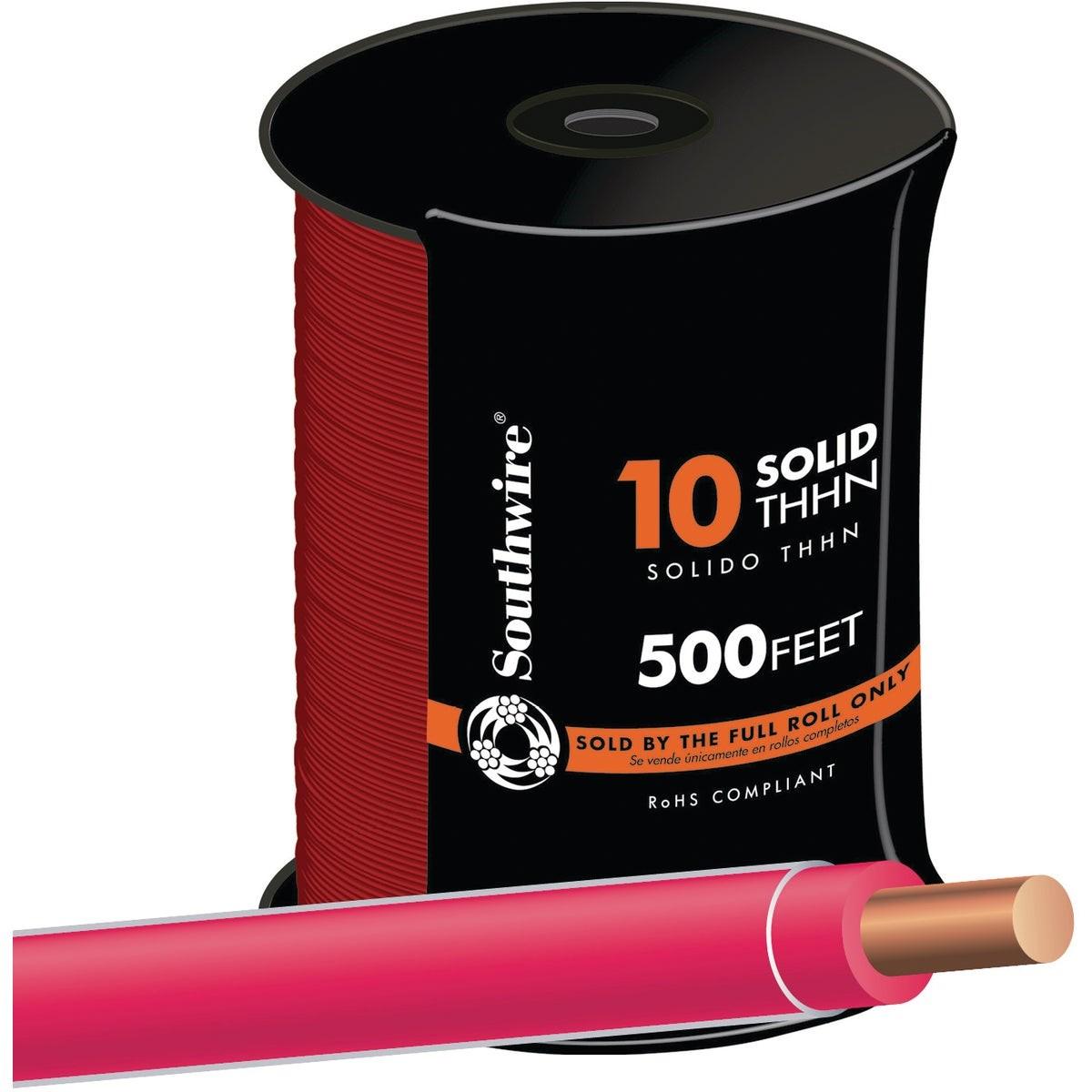

Southwire 11597257 Thhn Wire 10 Awg Solid Red 500 Ft

Product Description

The SOUTHWIRE 11597257 is a 500-foot roll of 10 AWG solid copper THHN building wire with red PVC insulation and a nylon outer jacket. Rated for 600 volts and 90 degrees C, this wire is built for power, lighting, and control wiring in commercial and residential installations. The solid conductor construction suits branch circuit runs where wire pulling through conduit or raceways is required. The nylon jacket provides resistance to oil, gasoline, chemicals, and abrasion, extending service life in demanding environments. UL listed for compliance with standard electrical code requirements.

This wire is suited for use in conduit and raceways in both residential and commercial construction. It is a general-purpose building wire commonly pulled by licensed electricians for branch circuit wiring, panel feeds, and lighting circuits. The red jacket color aids circuit identification during installation and future service work. Applications include new construction, renovation wiring, and industrial control runs where a 10 AWG solid conductor meets the ampacity requirement.

Key Features

• 600-volt rated solid copper conductor for power, lighting, and control circuits
• 90 degrees C temperature rating for dry and wet locations as permitted by listing
• Flame-retardant PVC insulation with nylon jacket for mechanical protection
• Resistant to oil, gasoline, chemicals, and abrasion
• Red jacket color for easy circuit identification
• UL listed general-purpose building wire

Compatibility

Designed for installation in conduit and raceways as a general-purpose 10 AWG THHN building wire for residential and commercial electrical systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before pulling or terminating wire. Use appropriate conduit fill calculations per NEC Article 310 when routing with other conductors. Do not exceed the conductor ampacity or voltage rating specified for the installation conditions.

Technical Specifications

• Wire Gauge: 10 AWG
• Conductor Type: Solid Copper
• Wire Type: THHN
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Insulation Material: Flame-retardant PVC with Nylon Jacket
• Color: Red
• Length: 500 feet
• Unit of Measure: Roll
• Weight: 18.85 pounds
• Certifications: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 11597257
