Southwire 11597201 Thhn Thwn 10 Awg 30A 500ft Solid Copper Wire

Product Description

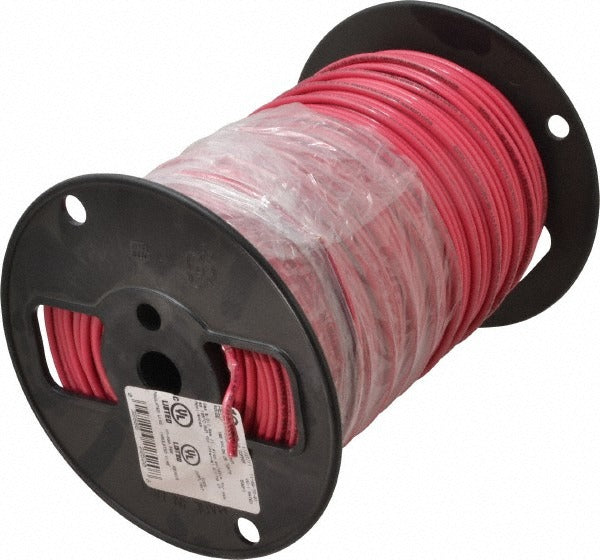

The SOUTHWIRE 11597201 is a solid-core THHN/THWN building wire rated for 30 amps at 600 volts, built for use in conduit runs across residential and light commercial electrical installations. The conductor is solid copper at 10 AWG, insulated with thermoplastic and jacketed with nylon for durability. Each reel contains 500 feet of red wire, making it suitable for branch circuit wiring where color-coded identification of conductors is required by code. Licensed electricians are the primary installers of this wire in new construction, renovation, and service upgrade applications.

This wire is rated for both dry and wet locations, covering THHN (dry) and THWN (wet) applications in a single product. The red jacket color is commonly used for second-phase hot conductors in 208-volt or 240-volt multi-wire branch circuits. The 10 AWG solid copper construction is a standard choice for 30-amp circuits including electric dryer outlets, water heater feeds, and similar dedicated branch circuits in residential and light commercial settings.

Key Features

• 10 AWG solid copper conductor rated at 30 amps and 600 volts
• Dual-rated THHN and THWN for use in both dry and wet conduit environments
• Nylon outer jacket provides resistance to abrasion, gasoline, heat, moisture, and oil
• Thermoplastic insulation rated up to 194 degrees F maximum operating temperature
• Red jacket color for phase conductor identification in multi-wire circuits
• 500-foot reel quantity reduces splicing and waste on larger jobs

Compatibility

Designed for use in conduit systems as a general-purpose branch circuit conductor in residential and light commercial electrical installations where THHN or THWN-rated wire is specified.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit panel before pulling or terminating wire. This solid-core wire is intended for conduit installation and is not recommended for applications requiring flexible wire. Use appropriate pulling lubricant and conduit fill calculations when routing through conduit runs.
