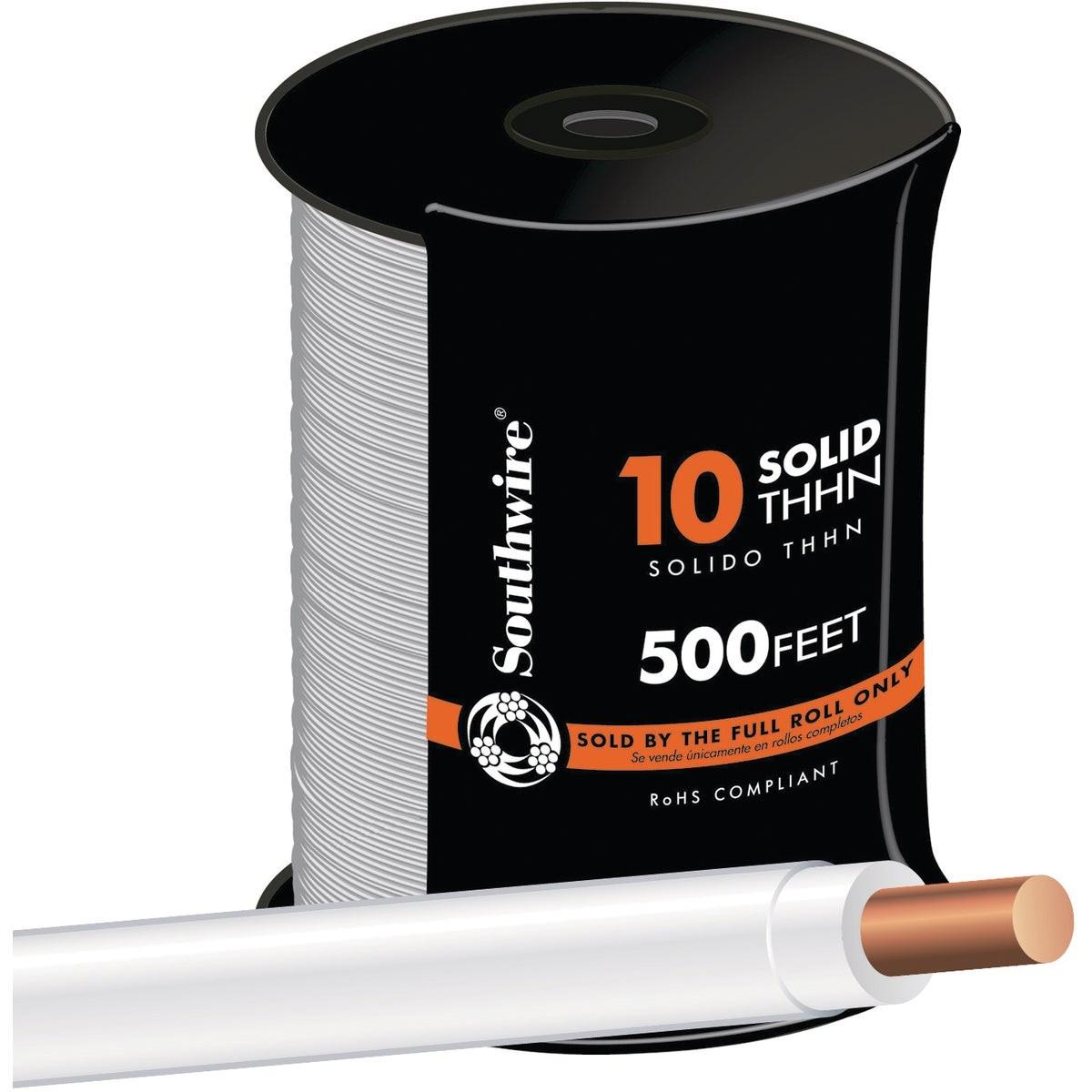

Southwire 11596457 Thhn Wire 10 Awg Solid 500 Ft White

Product Description

The SOUTHWIRE 11596457 is a 500-foot roll of 10 AWG solid THHN building wire rated for general-purpose power, lighting, and control wiring in commercial and residential construction. The conductor is solid copper with flame-retardant PVC insulation and a nylon jacket, rated at 600 volts and 90 degrees C. The nylon jacket adds mechanical protection and makes the wire easier to pull through conduit. Electricians use this wire for branch circuit wiring, panel feeds, and fixture connections where a solid conductor is required or preferred.

This wire is intended for use in conduit and raceways in accordance with the NEC. The 10 AWG solid configuration is common in residential and light commercial branch circuits, including 20-amp and 30-amp applications where local code allows solid conductors. The white jacket color supports standard color-coding practices for neutral conductors in multi-wire installations.

Key Features

• Solid copper conductor — 10 AWG
• 600-volt rating suitable for standard building circuit applications
• 90 degrees C temperature rating for dry and damp locations
• Flame-retardant PVC insulation with nylon outer jacket
• Resistant to oil, gasoline, chemicals, and abrasion
• UL listed for use in conduit and raceways

Compatibility

Designed for installation in conduit and raceway systems as general-purpose THHN building wire per NEC guidelines for power, lighting, and control wiring circuits.

Installation Notes

Installation must be performed by a licensed electrician in accordance with applicable NEC requirements and local electrical codes. De-energize and lock out the circuit before making any connections. THHN wire in conduit must be installed with appropriate fill calculations per NEC Article 310. Do not exceed the voltage or temperature ratings marked on the wire.

Technical Specifications

• AWG: 10
• Conductor Type: Solid Copper
• Insulation: Flame-Retardant PVC with Nylon Jacket
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Wire Color: White
• Length: 500 feet
• Unit of Measure: Roll
• Weight: 18.7 pounds
• Certifications: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 11596457
