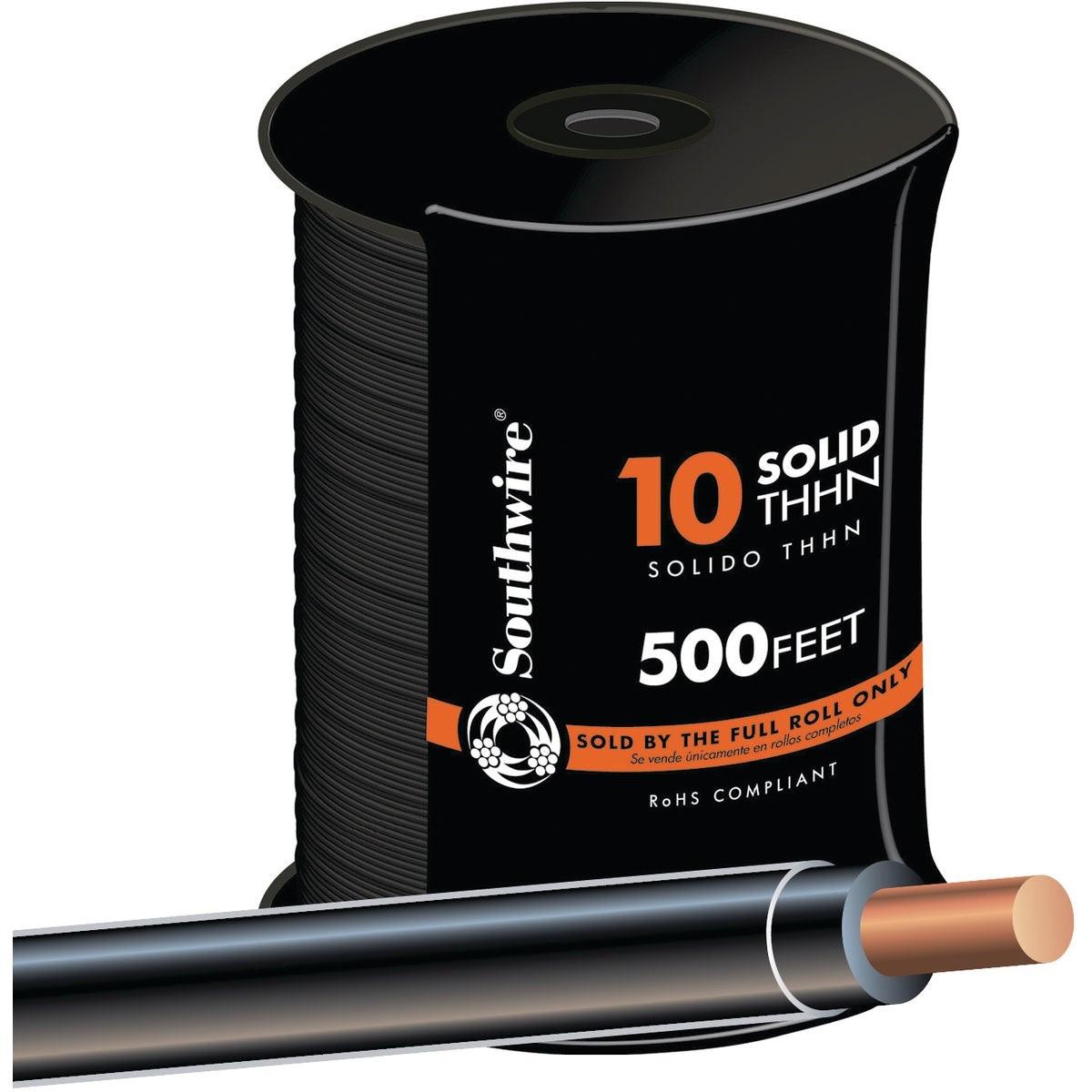

Southwire 11595657 10 Awg Solid Thhn Wire 600V Black 500 Ft

Product Description

The SOUTHWIRE 11595657 is a 500-foot roll of 10 AWG solid copper THHN building wire rated for 600 volts and 90 degrees C. The conductor is bare solid copper with a flame-retardant PVC insulation layer and a nylon outer jacket. This construction meets general-purpose requirements for power, lighting, and control circuits in residential and commercial installations. The black jacket color aids in circuit identification during rough-in and panel wiring. Licensed electricians and electrical contractors are the primary installers of this wire type.

This wire is suited for use in conduit and raceways where a solid 10 AWG conductor is specified. Common applications include branch circuit wiring, lighting circuits, and control wiring runs inside EMT, rigid metal conduit, or PVC conduit. The nylon jacket provides added resistance to pull-through abrasion during conduit installation. The wire also demonstrates resistance to oil, gasoline, and common chemicals, making it appropriate for light industrial and mechanical room environments in addition to standard residential and commercial builds.

Key Features

• 10 AWG solid copper conductor for branch circuit and lighting applications
• 600-volt rating suitable for standard building wiring systems
• 90 degrees C temperature rating for use in dry and damp locations
• Flame-retardant PVC insulation with nylon jacket for added durability
• Resistant to oil, gasoline, chemicals, and pull-through abrasion
• UL listed for compliance with standard electrical code installations

Compatibility

Designed for use in conduit and raceway systems where THHN-rated 10 AWG solid building wire is specified per applicable electrical codes.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize the circuit and verify with a meter before working at any termination point. Solid conductors at this gauge are typically landed with listed lugs or set-screw terminals rated for solid wire. Avoid exceeding the conduit fill percentages specified in NEC Chapter 9 tables when pulling multiple conductors.

Technical Specifications

• Wire Gauge: 10 AWG
• Conductor Type: Solid Copper
• Wire Standard: THHN
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Insulation Material: Flame-Retardant PVC with Nylon Jacket
• Color: Black
• Length: 500 feet
• Unit of Measure: Roll
• Weight: 18.625 pounds
• Certifications: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 11595657
