Southwire 11590758 12 Awg Solid Thhn Wire 600V 500 Ft Blue

Product Description

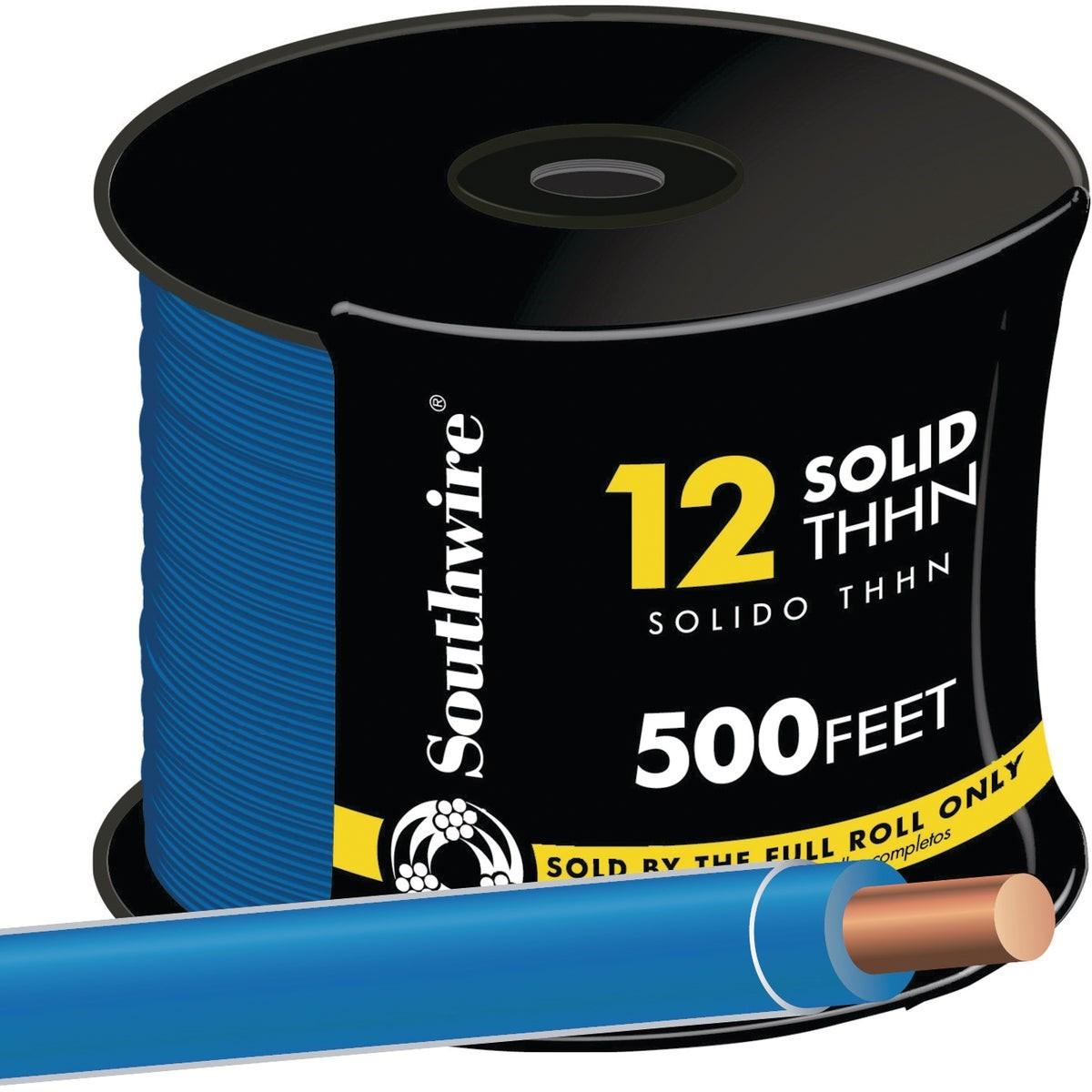

The SOUTHWIRE 11590758 is a 500-foot roll of 12 AWG solid copper THHN building wire rated at 600 volts and 90 degrees C. It features a flame-retardant PVC insulation layer with an outer nylon jacket, giving it resistance to oil, gasoline, common chemicals, and abrasion. The small-diameter construction makes it easier to pull through conduit in tight runs. This wire is intended for general-purpose power, lighting, and control wiring in residential and commercial construction, and is installed by licensed electricians following applicable NEC requirements.

This wire is suitable for use in conduit and raceways in both new construction and retrofit wiring projects. The solid conductor is well suited for branch circuit wiring in residential panels, junction boxes, and fixture connections where the wire will not be subject to repeated flexing. The blue jacket color aids in circuit identification during installation and inspection.

Key Features

• 12 AWG solid copper conductor for branch circuit wiring applications
• 600-volt rating with 90 degrees C thermal rating for general-purpose use
• Flame-retardant PVC insulation with nylon outer jacket
• Resistant to oil, gasoline, chemicals, and abrasion
• Suitable for installation in conduit and raceways
• UL listed for compliance with standard building wire requirements

Compatibility

Designed for general-purpose power, lighting, and control wiring applications where THHN-rated building wire in conduit or raceway installations is required.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit before making any connections. Solid conductors should not be used in applications requiring flexible wiring. Use appropriate conduit fill calculations to avoid overfilling raceways.

Technical Specifications

• Conductor Size: 12 AWG
• Conductor Type: Solid Copper
• Wire Type: THHN
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Insulation: Flame-Retardant PVC with Nylon Jacket
• Color: Blue
• Length: 500 feet
• Unit of Measure: Roll
• Weight: 11.6 pounds
• Certifications: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 11590758
